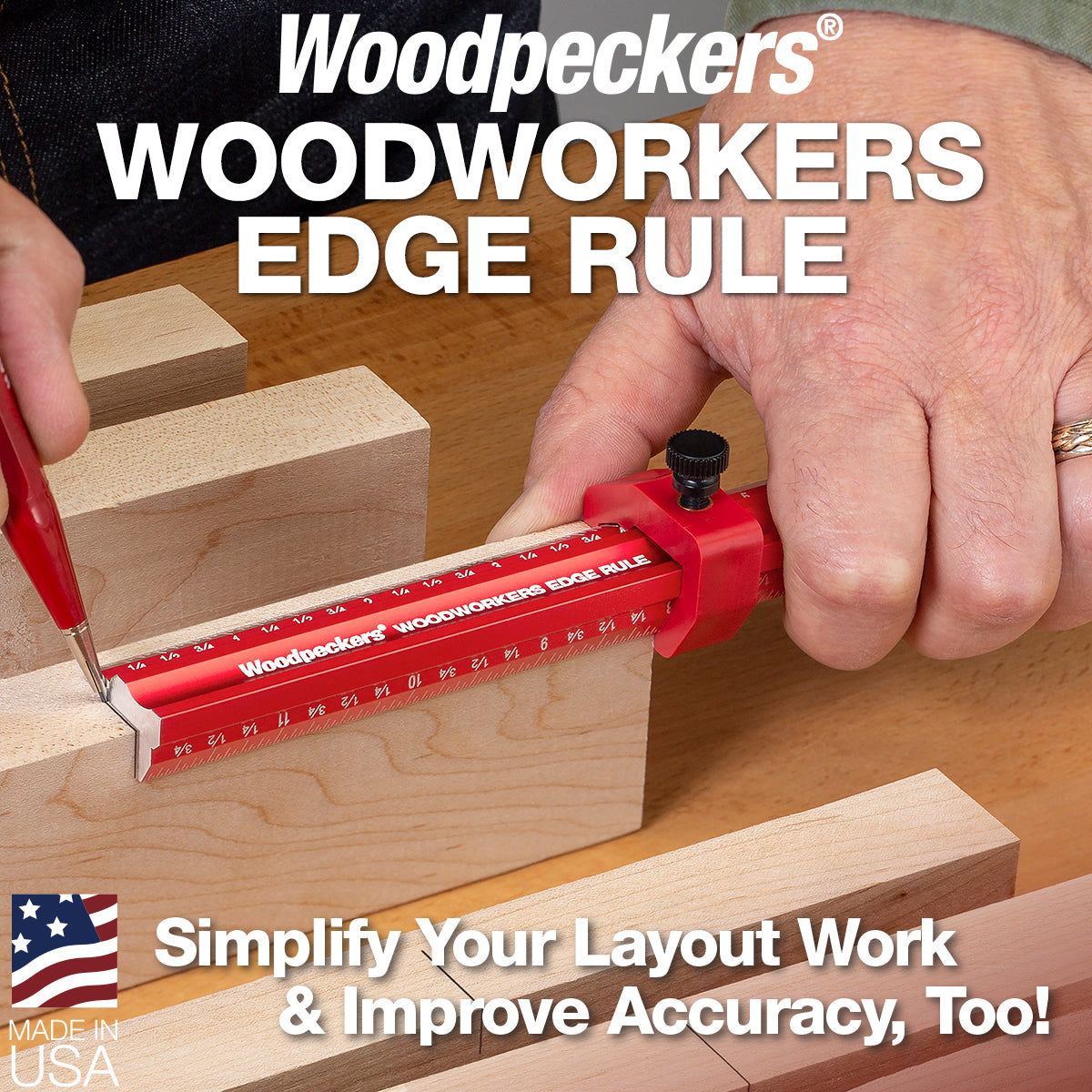

Woodworkers Edge Rule

Woodpeckers Woodworkers Edge Rule

Here are Just a Few of the Edge Rule’s Tricks

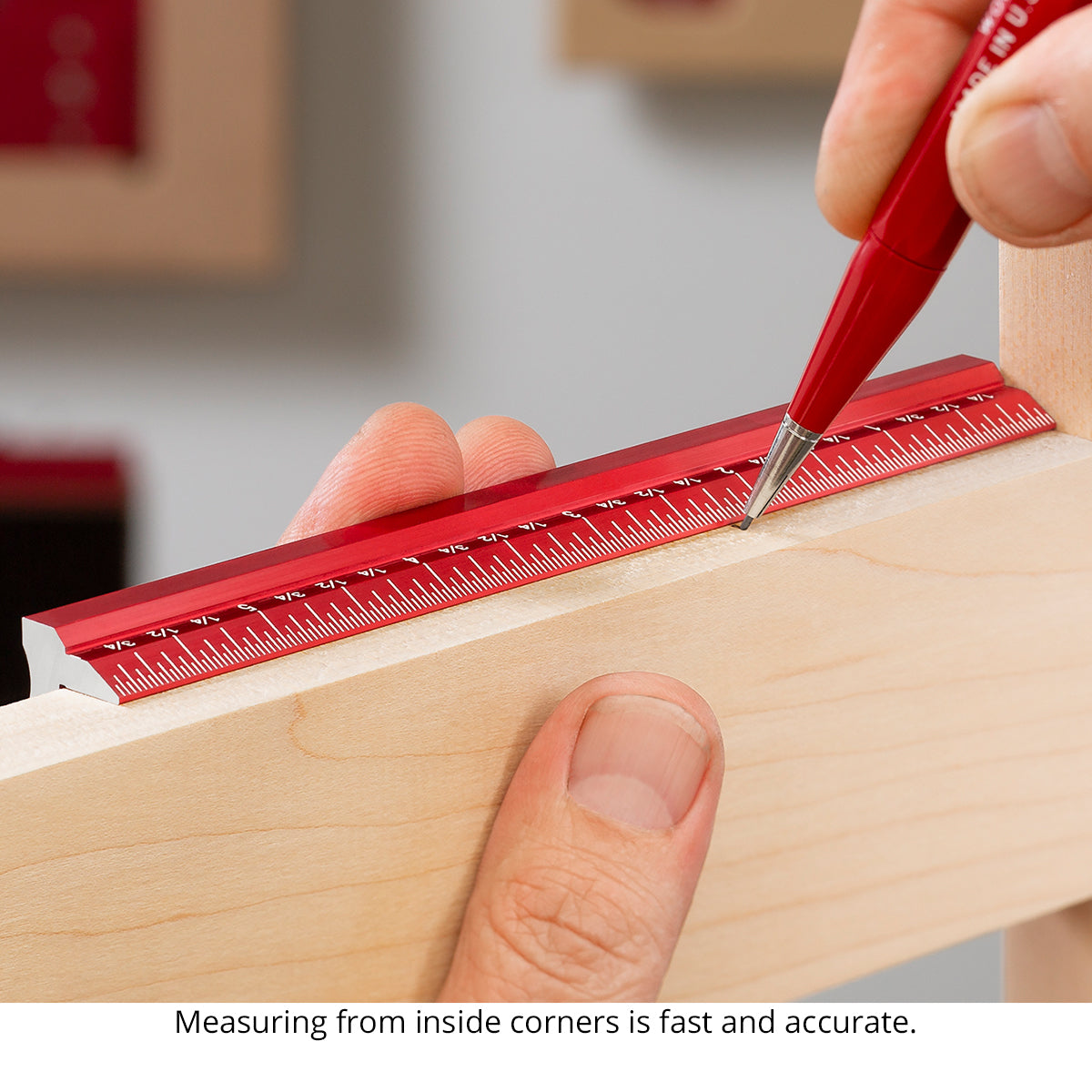

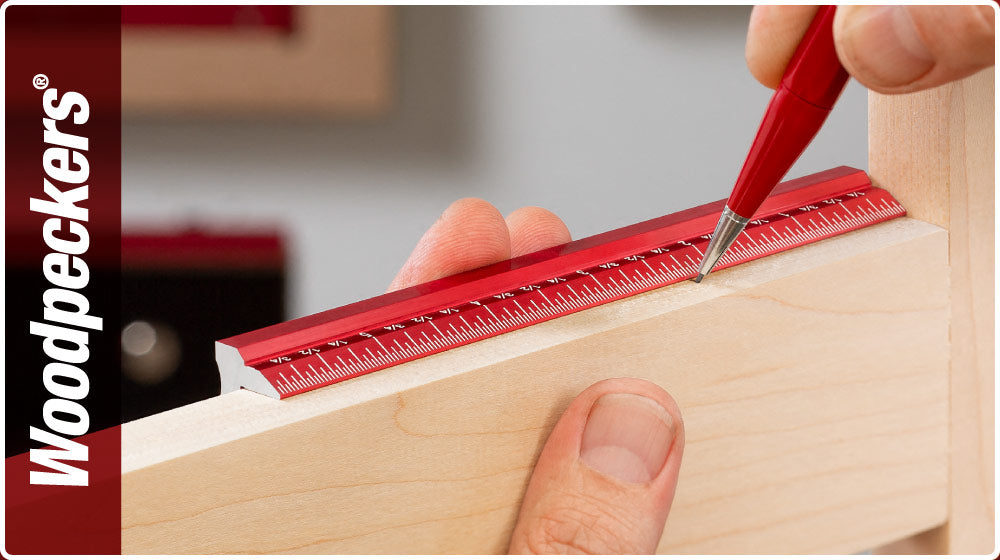

Measurements from Inside Corners Hardware installation usually calls for a measurement referenced from an intersecting cross-member…like the rails and stiles of a cabinet face frame. The Edge Rule drops in perfectly zeroed out to the intersection and aligned to the stock.

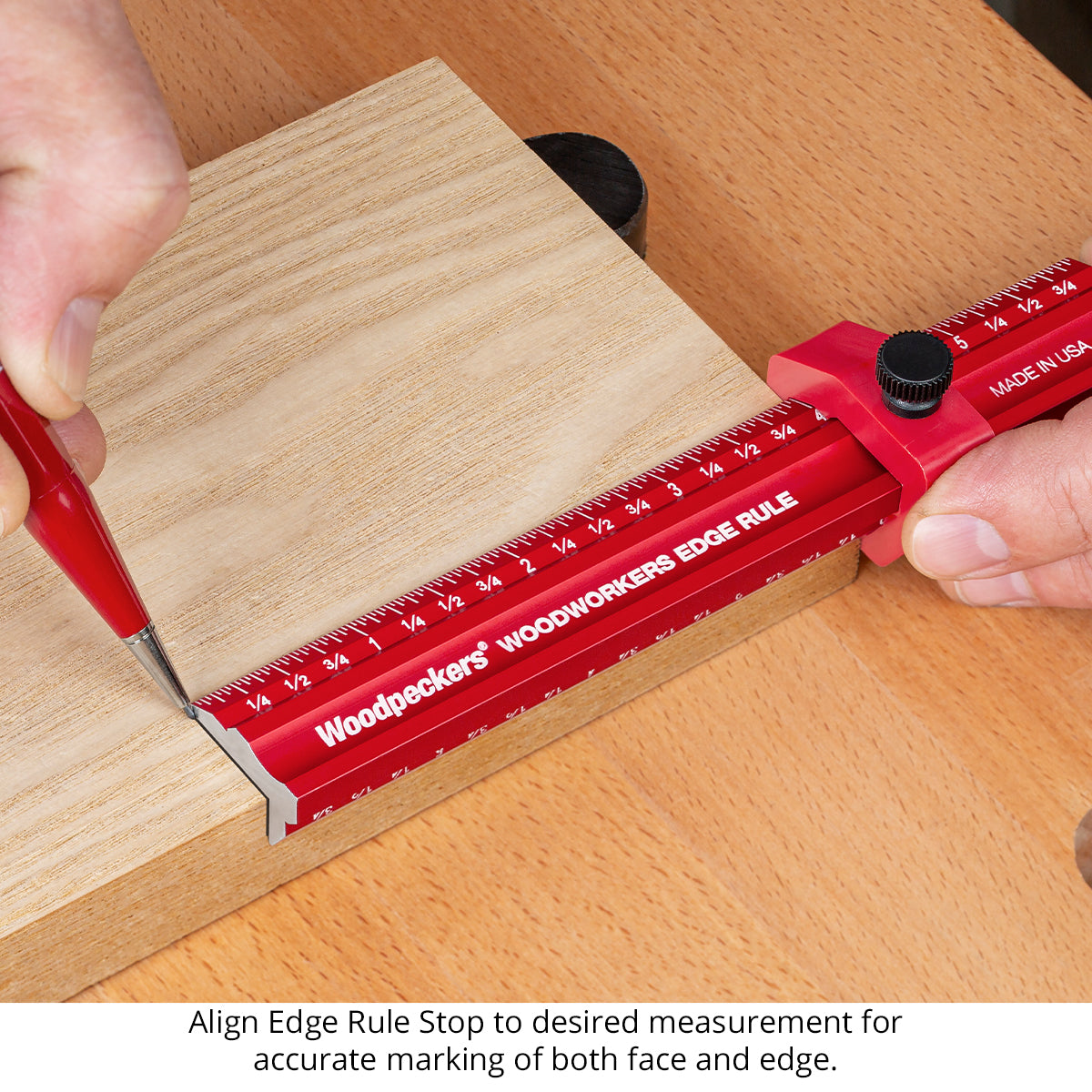

Marking Edge and Face at the Same Dimension Place the desired dimension at the end of your board and mark at the end of your Edge Rule on both the face and edge. Use the optional Edge Rule Stop to accurately and easily repeat that setting as many times as needed.

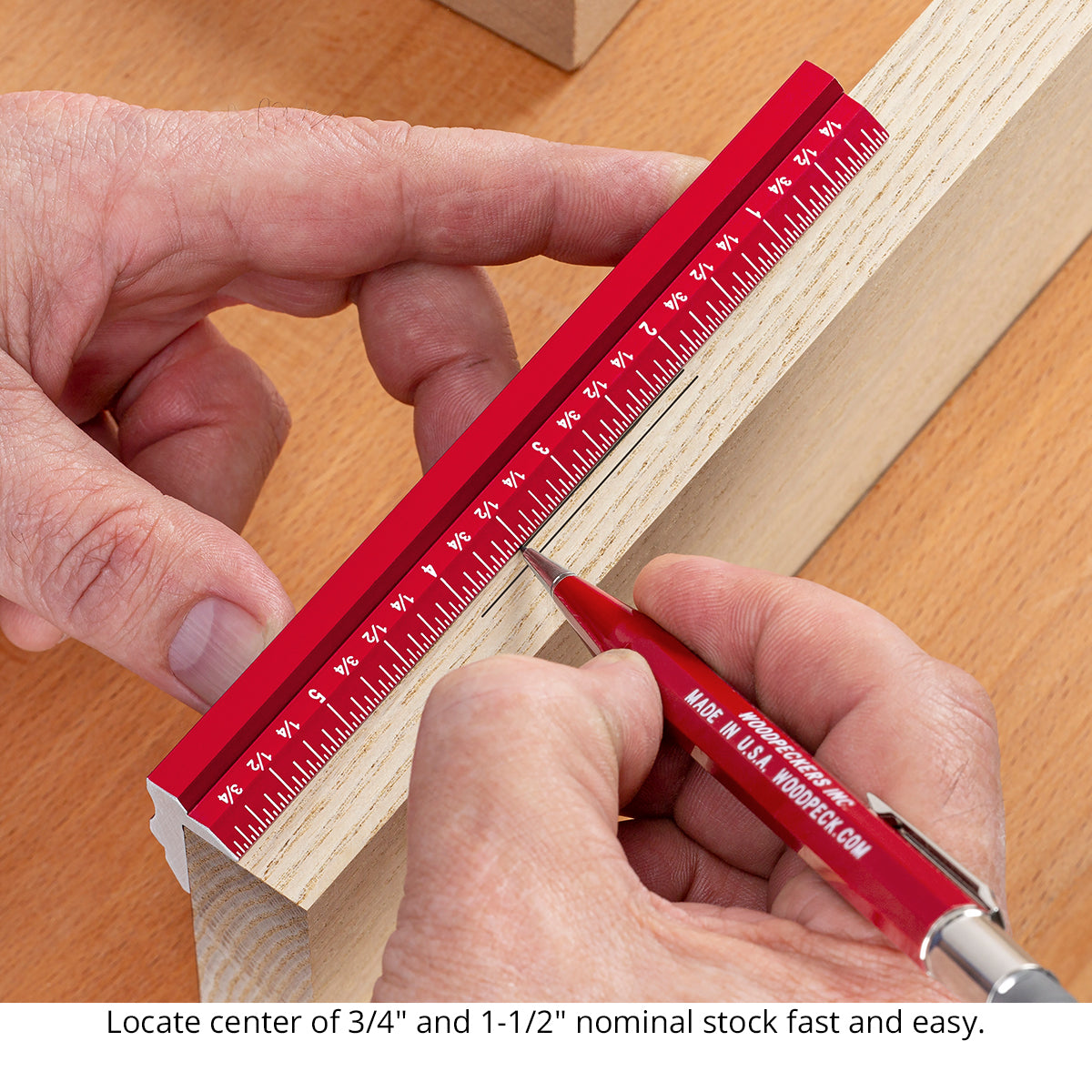

Finding Center of Nominal Stock Whether your stock is a hair over 3/4" or a hair under 3/4", you can find the center by making two marks using the 3/8" side of your Edge Rule. The same is true for “two-by” construction material that is pretty close to 1-1/2"…use opposing lines marked with the 3/4" side of the Edge Rule to find the exact center.

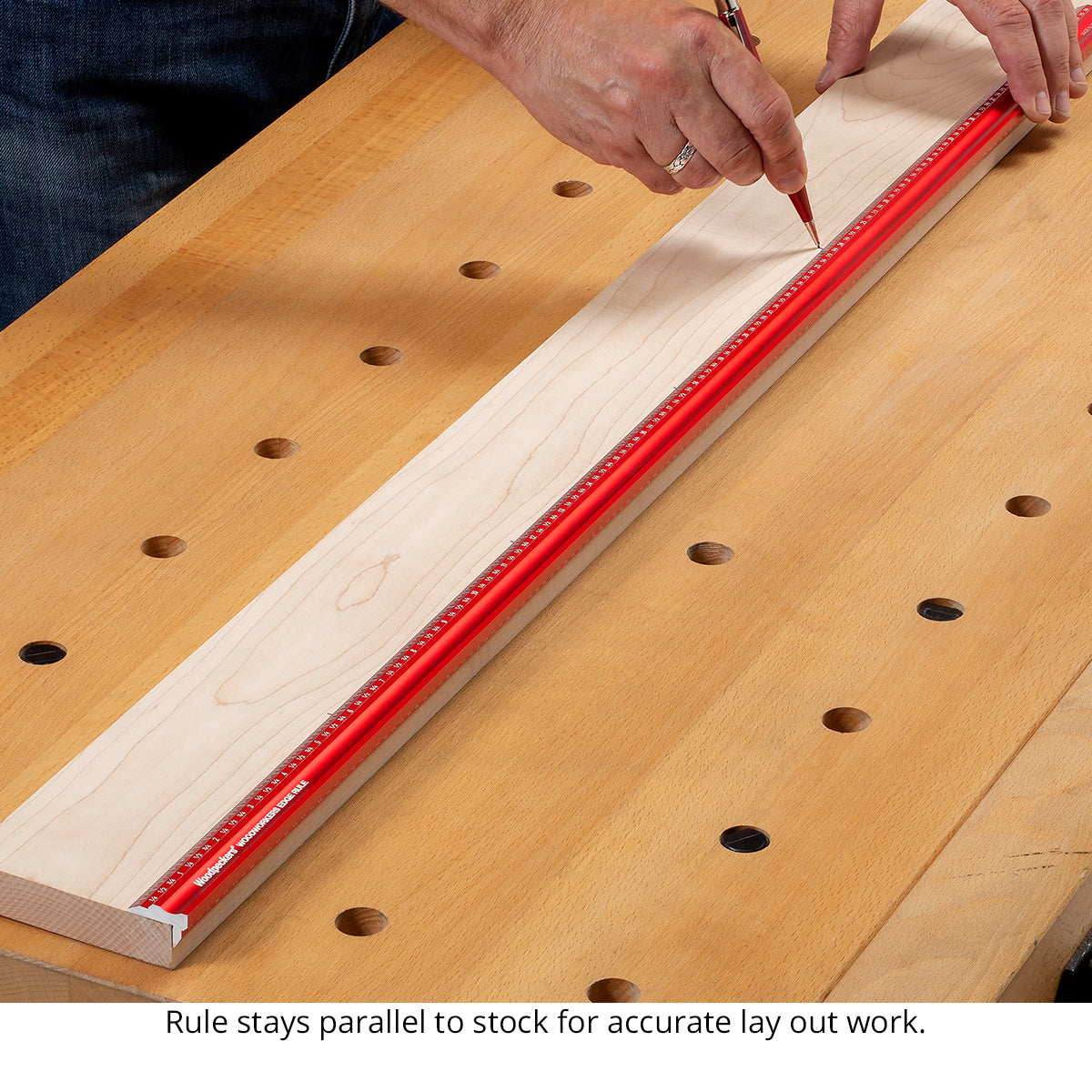

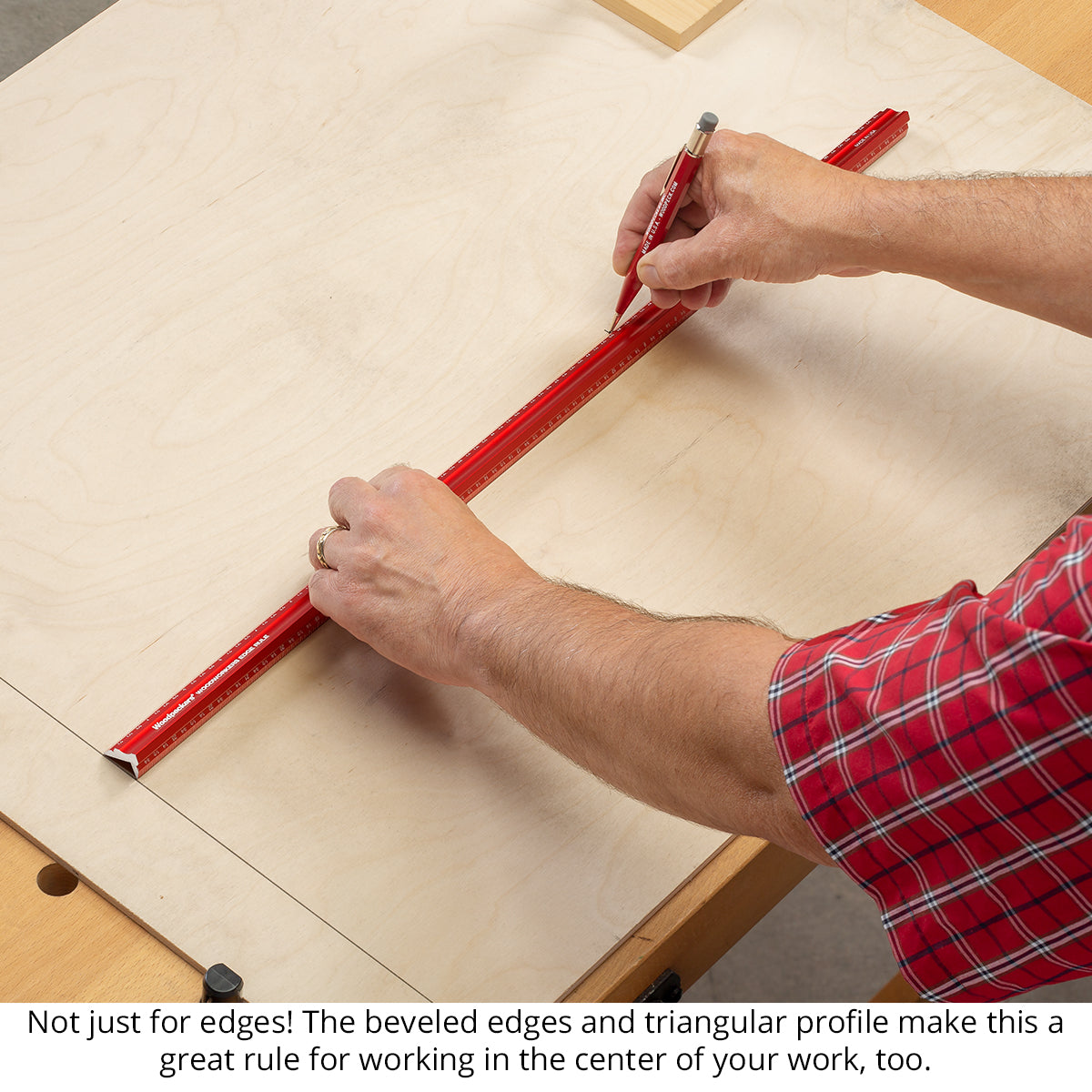

Mid-Field Measurements Even when you're not working at the edge of your stock, you'll still find the Edge Rule handy. The profiled shape makes it easier to move around on your stock than a thin, flat rule and the beveled edges get the scale right next to your stock where you need it.

The angle inside the Edge Rule is 89 °. This slightly acute angle puts the contact between your workpiece and the Edge Rule at the outside edges which means slight deviations in your workpiece edge won't throw off your measurement. Both edges are beveled, putting the scale right next to your work, which simplifies marking and minimizes parallax error. The Edge Rules are anodized for surface protection and to give them our familiar “Woodpeckers Red” color.  The 1/32" graduated scale is laser engraved to an accuracy of ± .004” total accumulated error over the entire length.

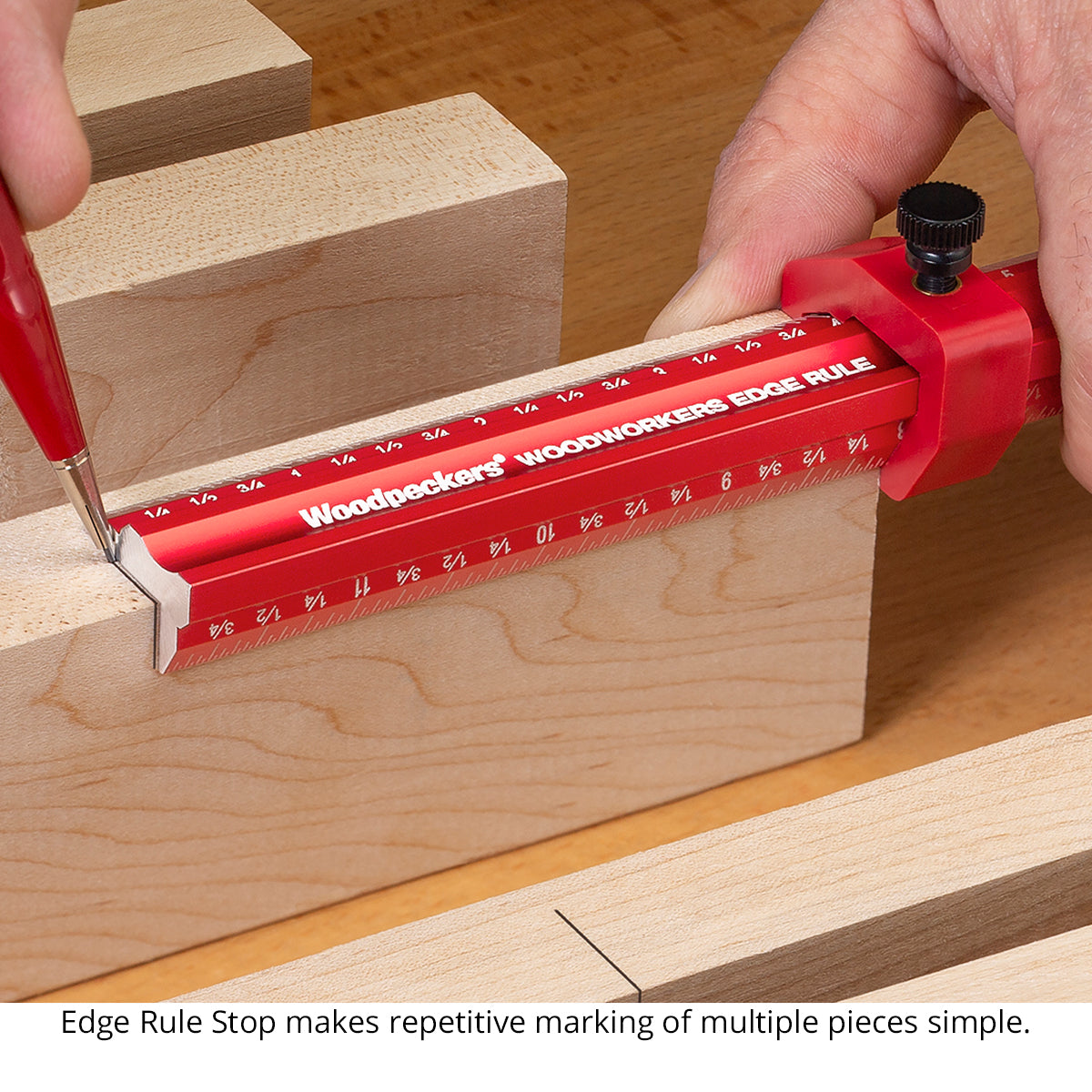

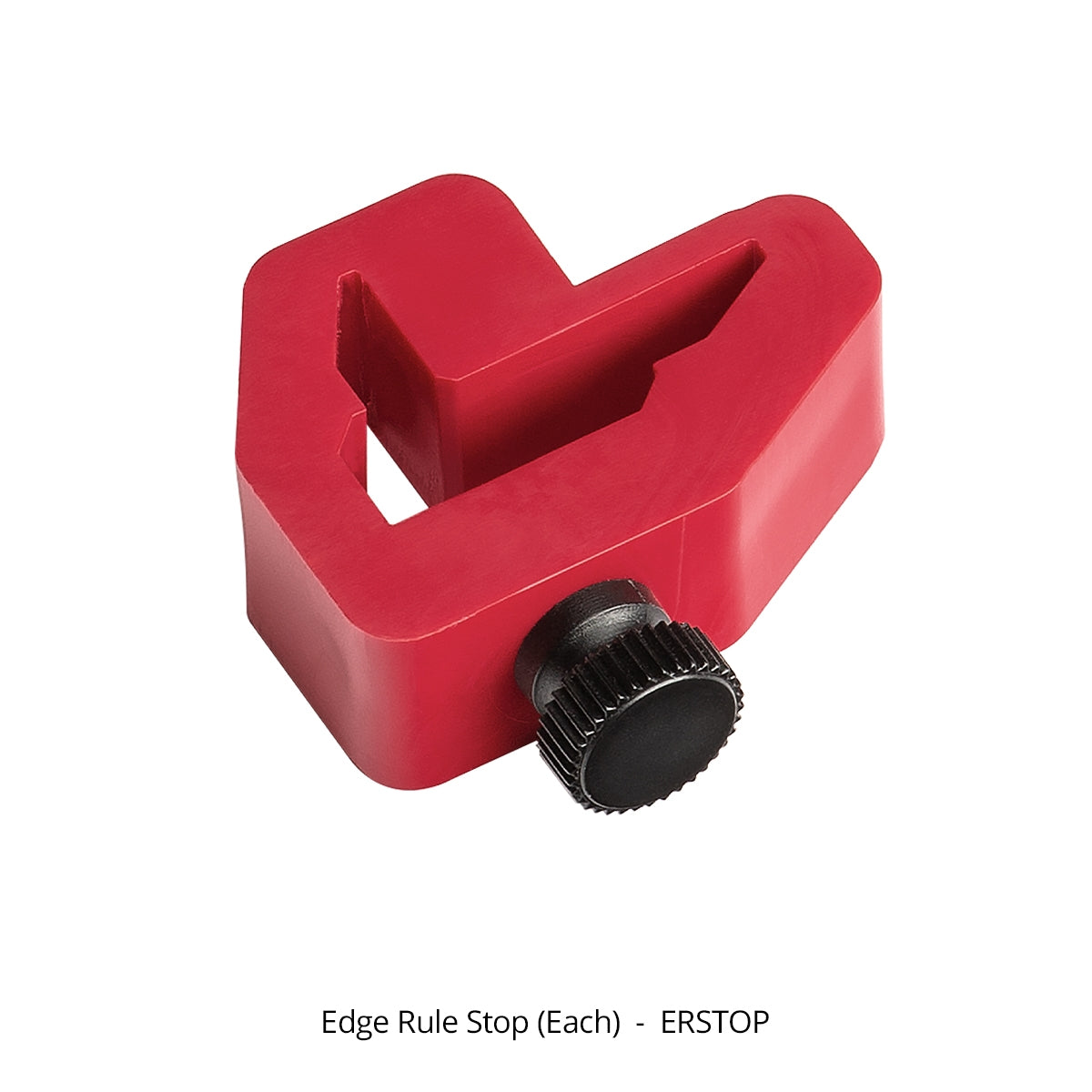

The Edge Rule Stops, now included with each Edge Rule, make a great rule even easier to use for repetitive marking. The stop fits the Edge Rule like a glove. Slide it to your desired measurement, lock it, and mark at the end of the rule. You’ll get exactly the same measurement no matter how many pieces you need.

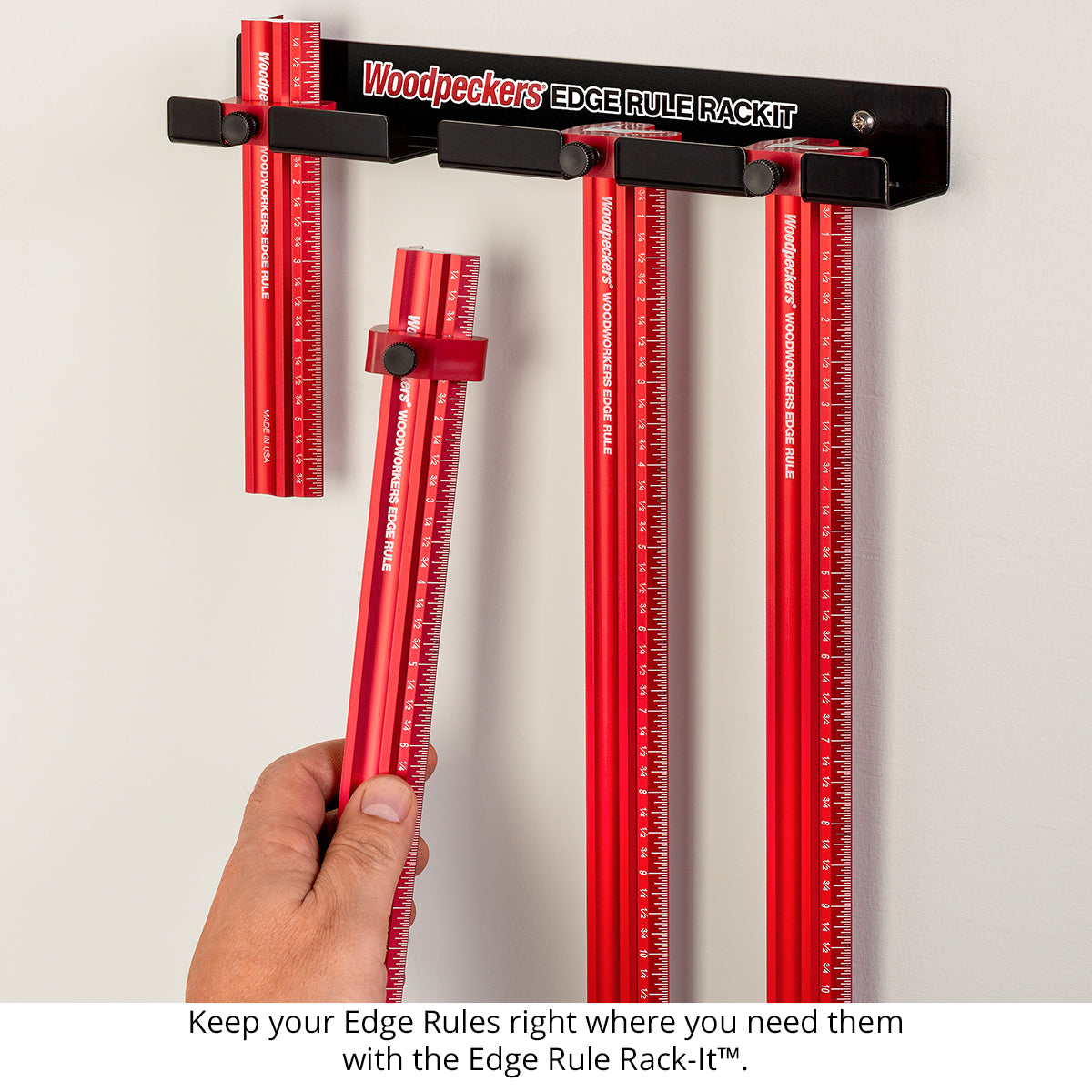

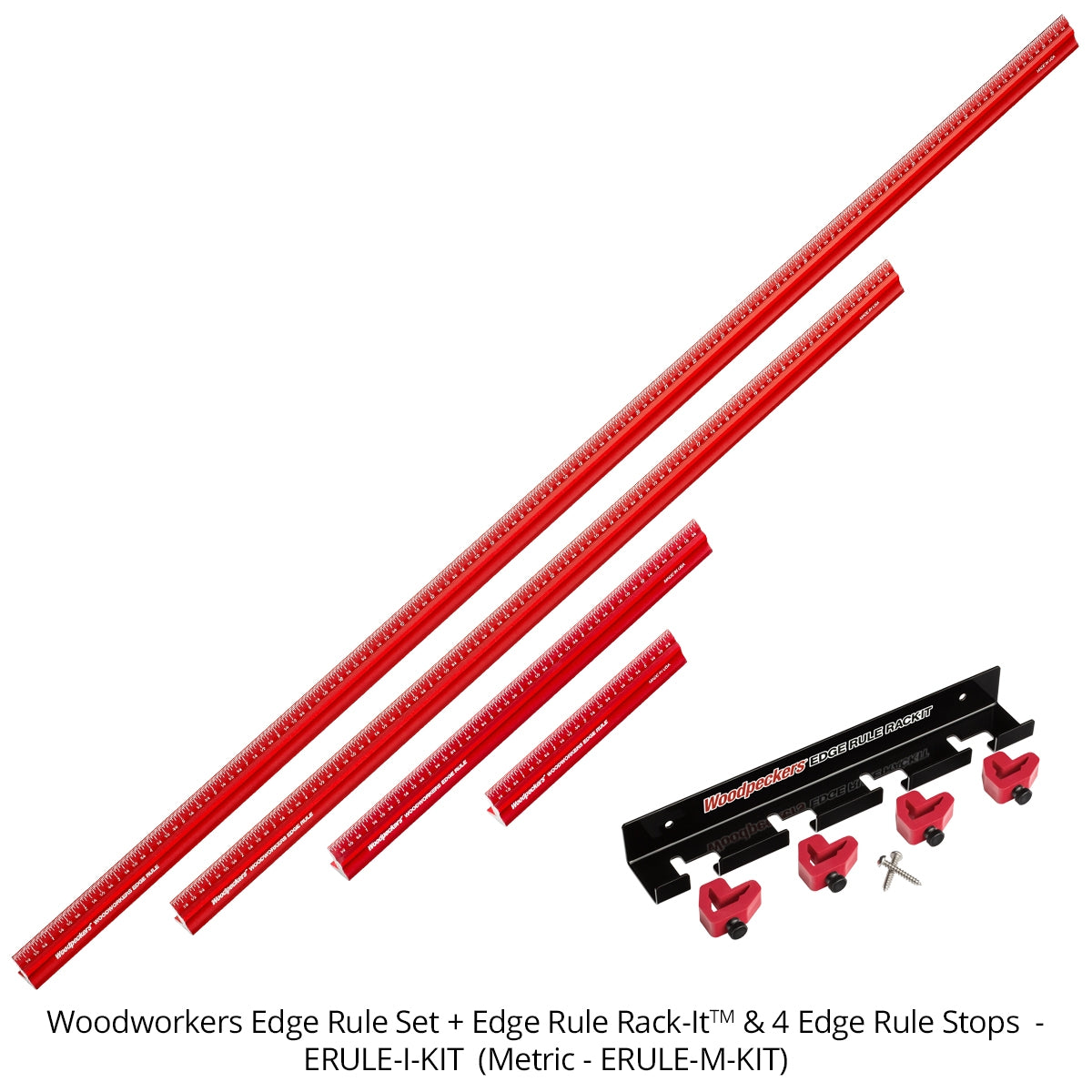

Keep your Edge Rules stored conveniently right where you need them with the Edge Rule Rack-It™. The powder-coated Rack-It™ mounts anywhere and holds 4 Edge Rules and Edge Rule Stops.

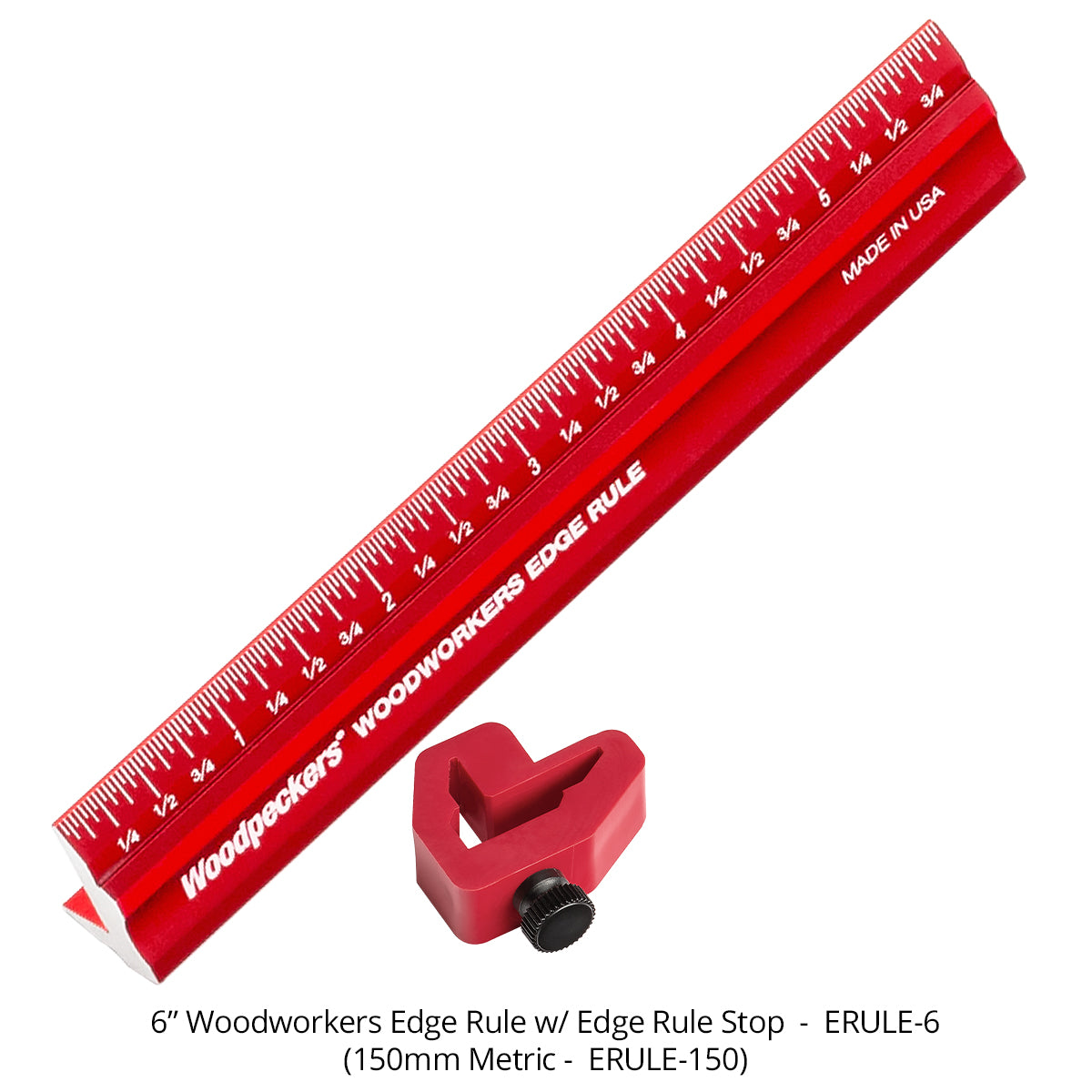

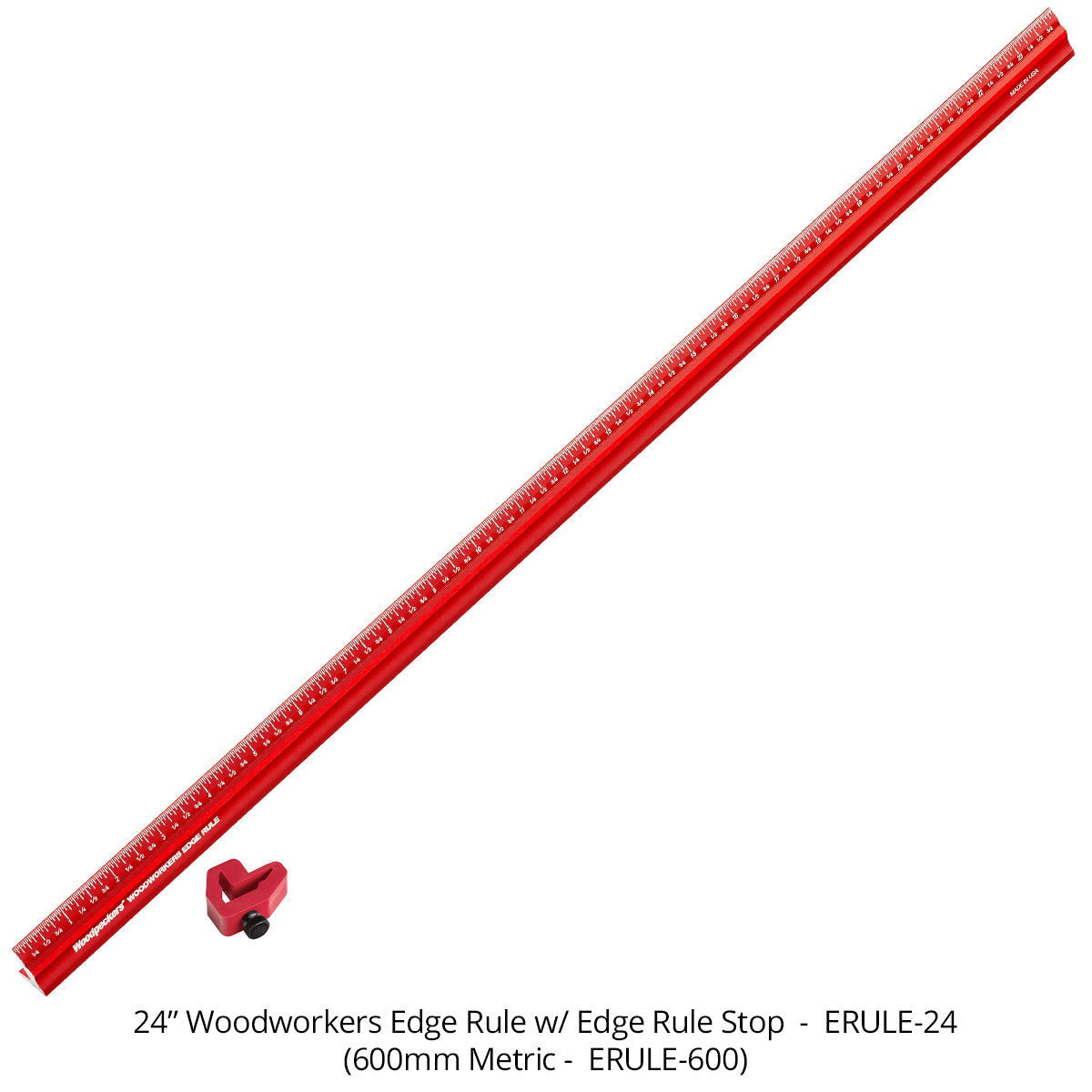

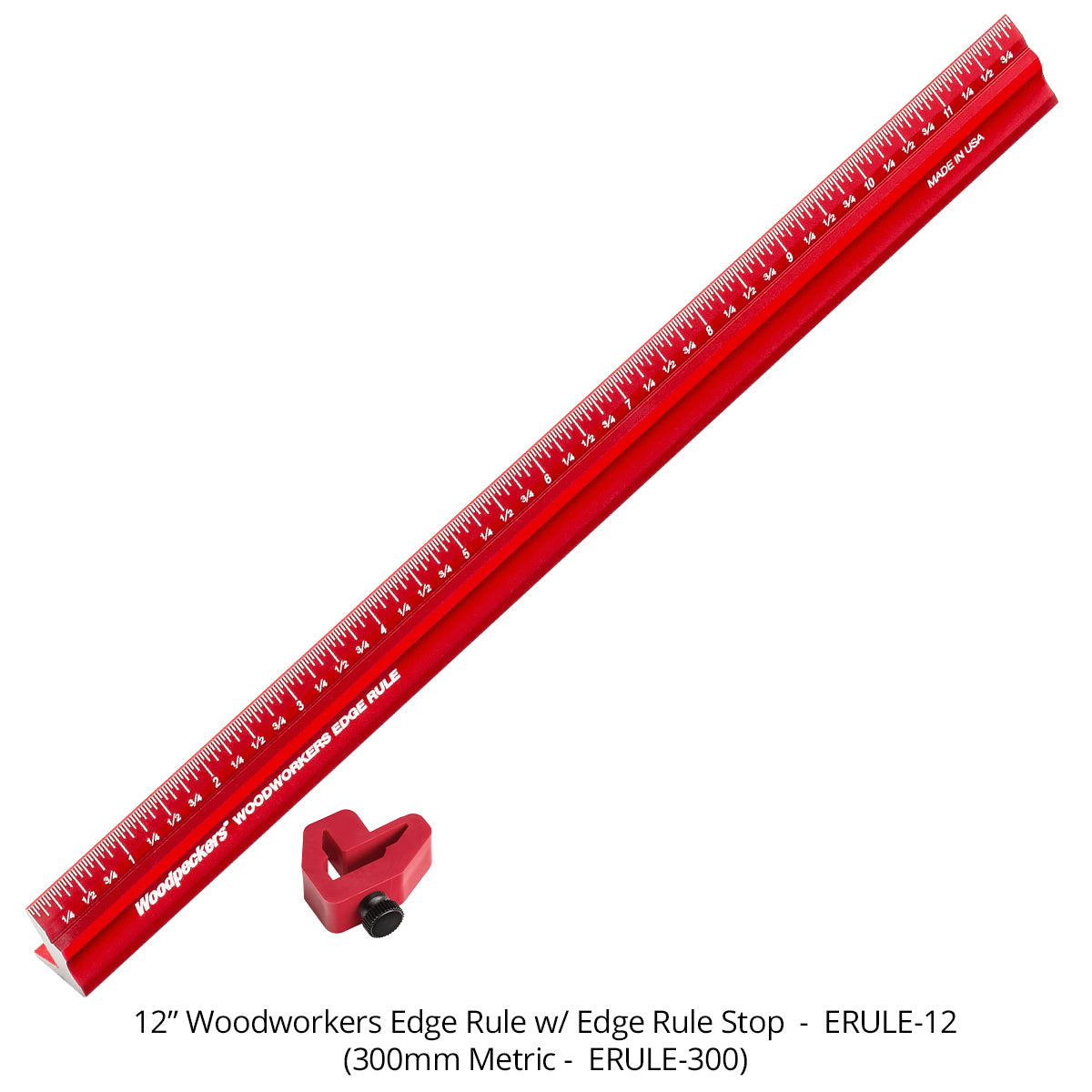

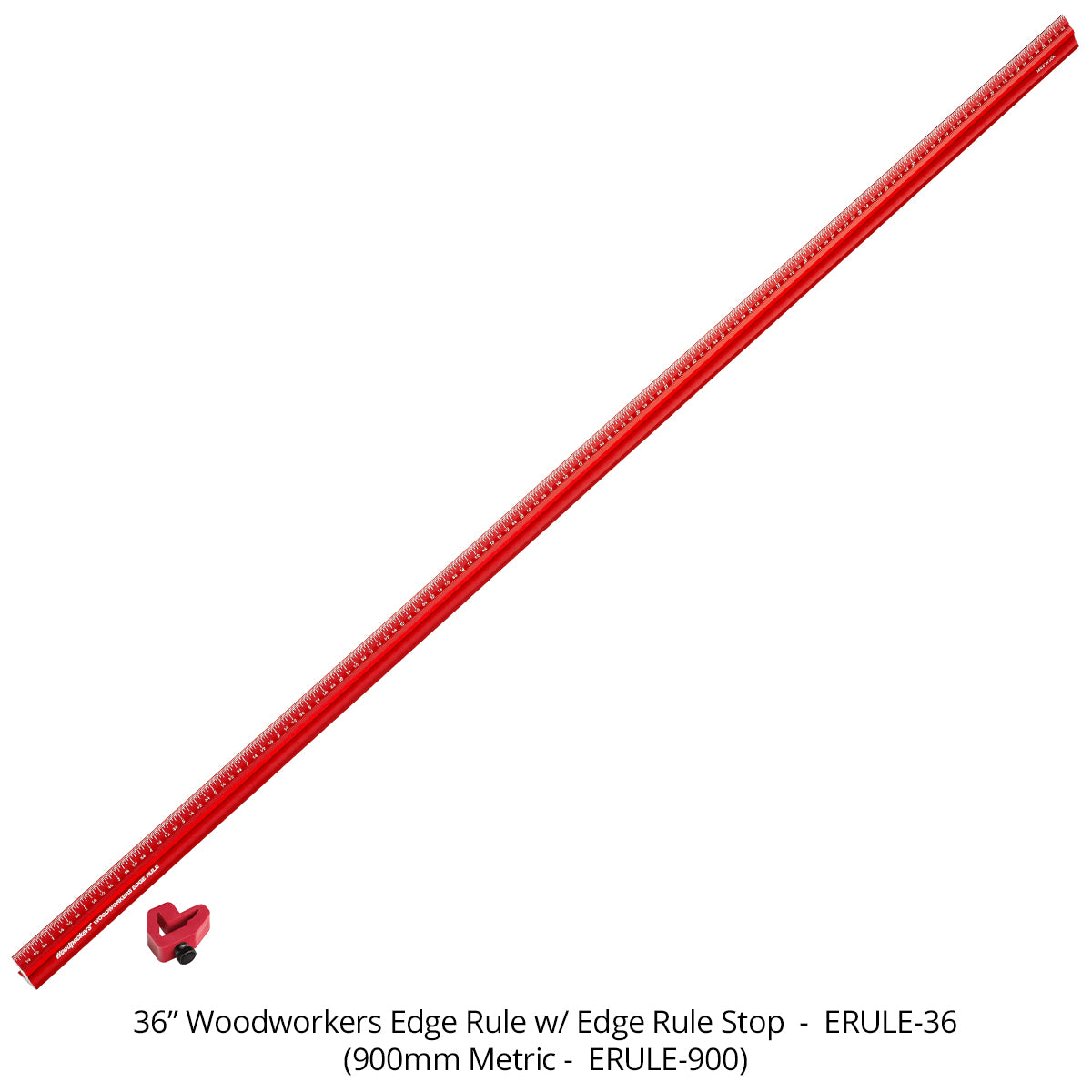

Woodworkers Edge Rules are available in 6", 12", 24" and 36" lengths and the metric equivalents, 150mm, 300mm, 600mm, and 900mm. Each size is available individually and includes an Edge Rule Stop. Or, save with either the inch or metric set. The sets include 4 Edge Rules with Edge Rule Stops and the Edge Rule Rack-It™.

Protected by US PATENT No. D899,950 & 11,045,943.
