DUAX Angle Drilling Table

DUAX Angle Drilling Table

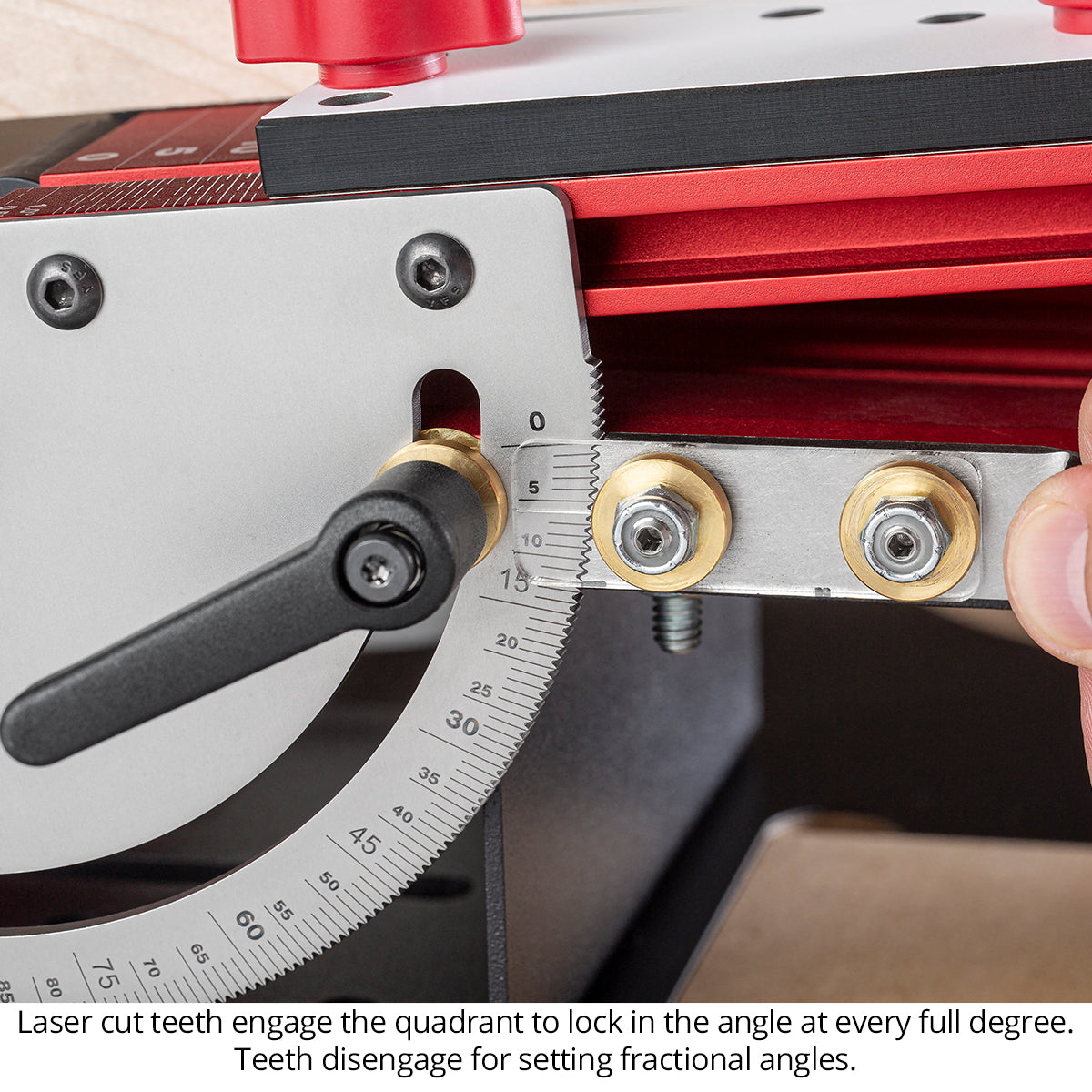

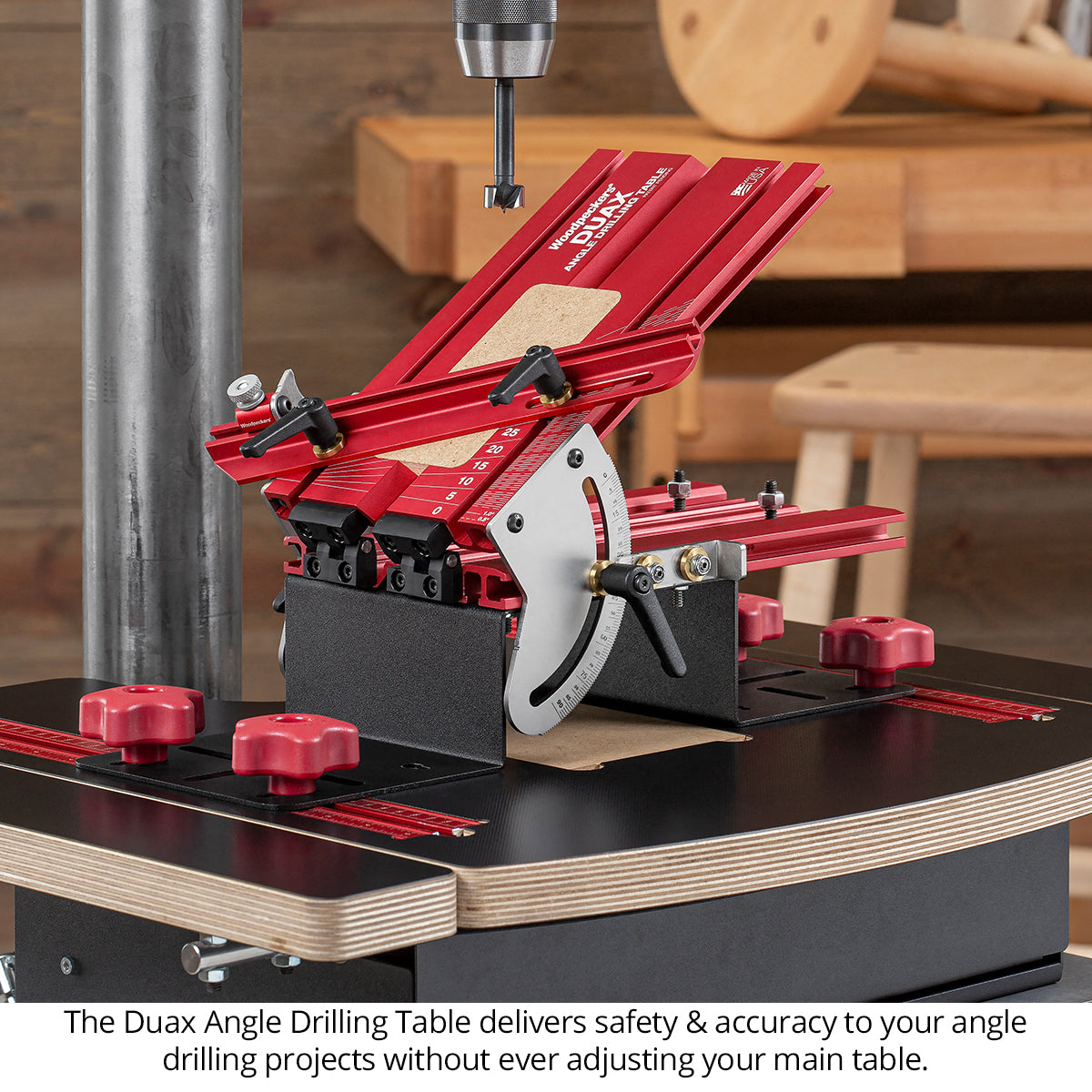

The Duax consists of two components, the base and the adjustable angle table. The table mounts to the base in four different directions, allowing you to orient your material for clearance and proper angle direction. Laser-cut teeth engage to provide accurate angle settings on the table. The stainless steel quadrants on both sides of the table secure the angle even under heavy drilling pressure. An adjustable fence provides the “dual” in “dual-axis”, adjusting for any angle between 0° and 90° in either direction and positioned anywhere along the table.

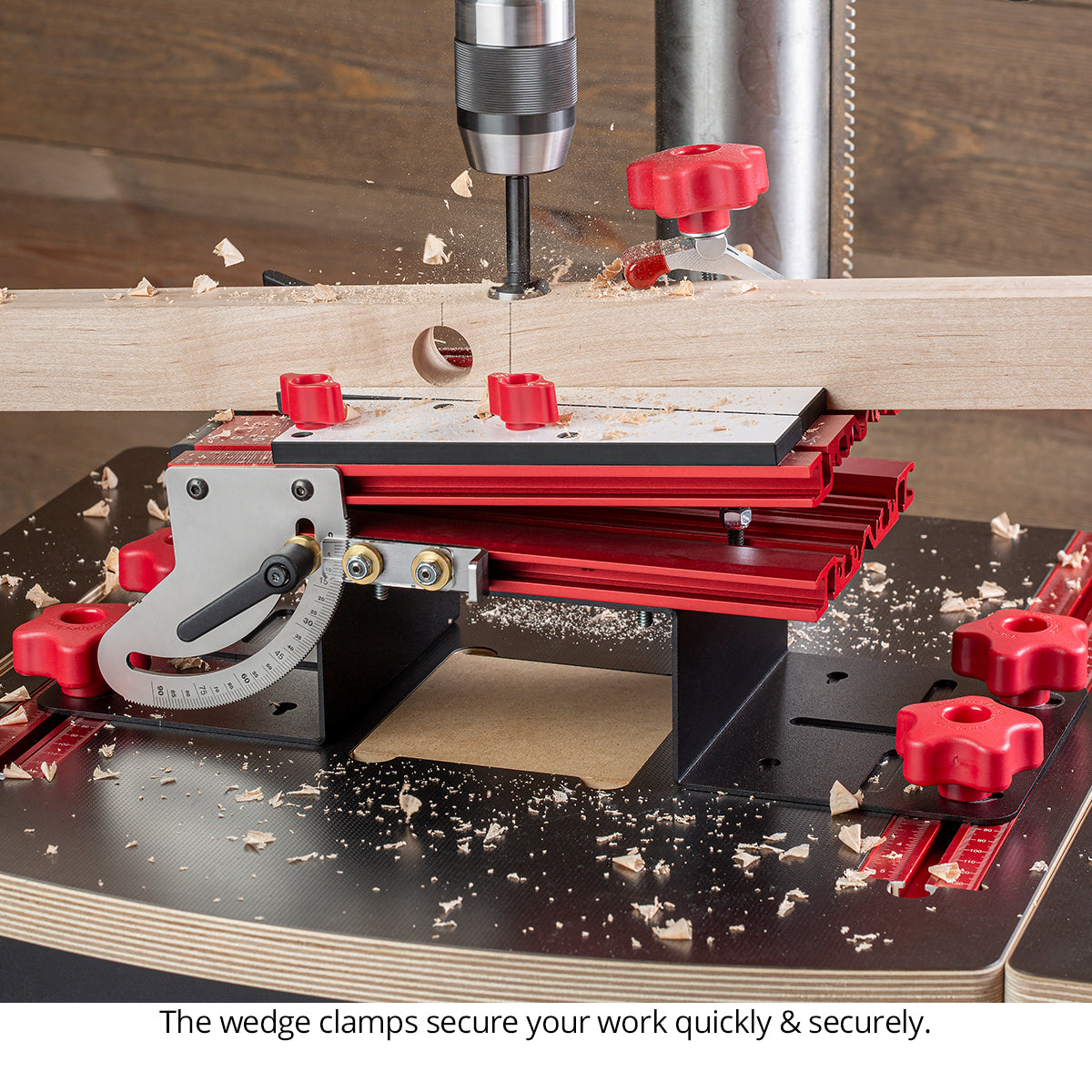

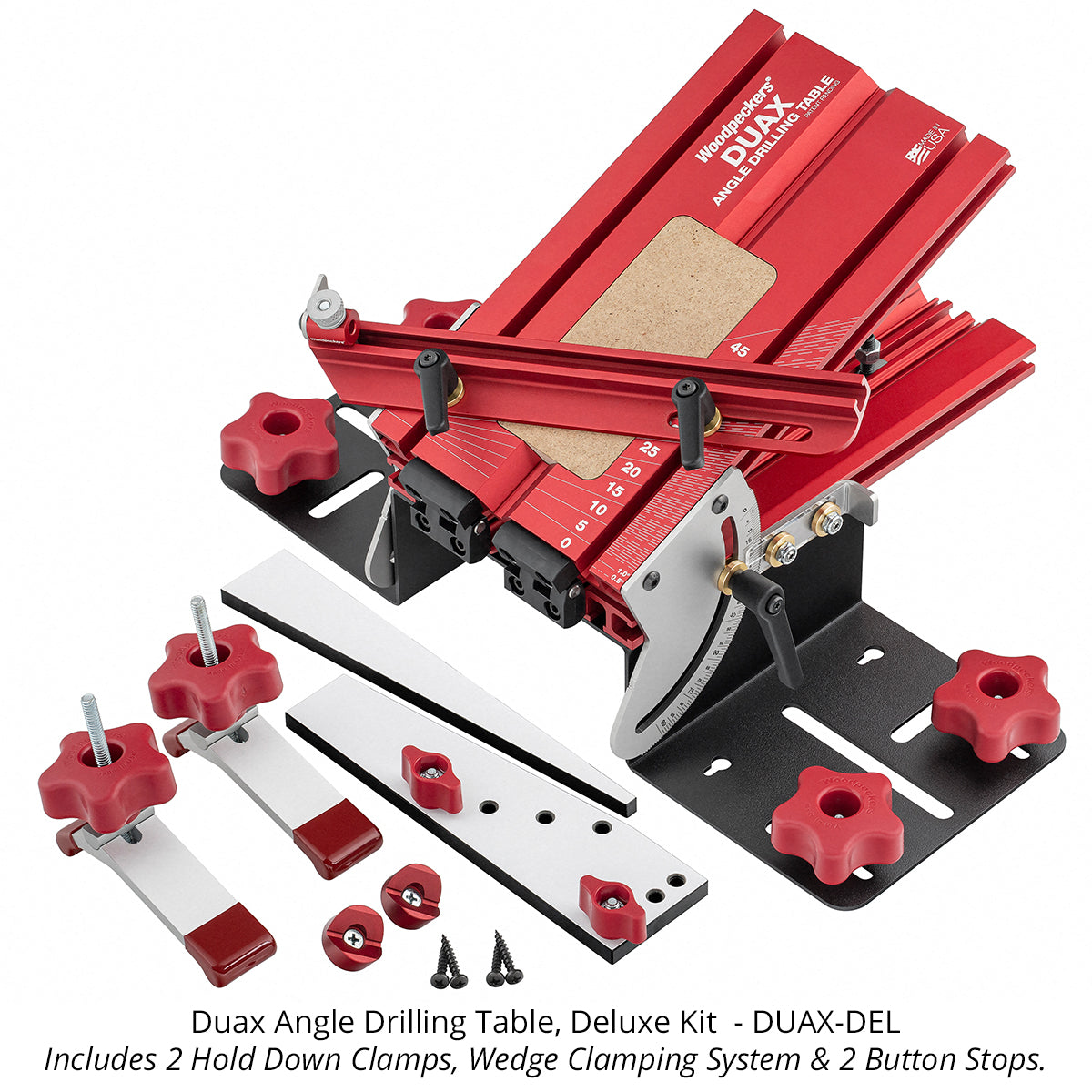

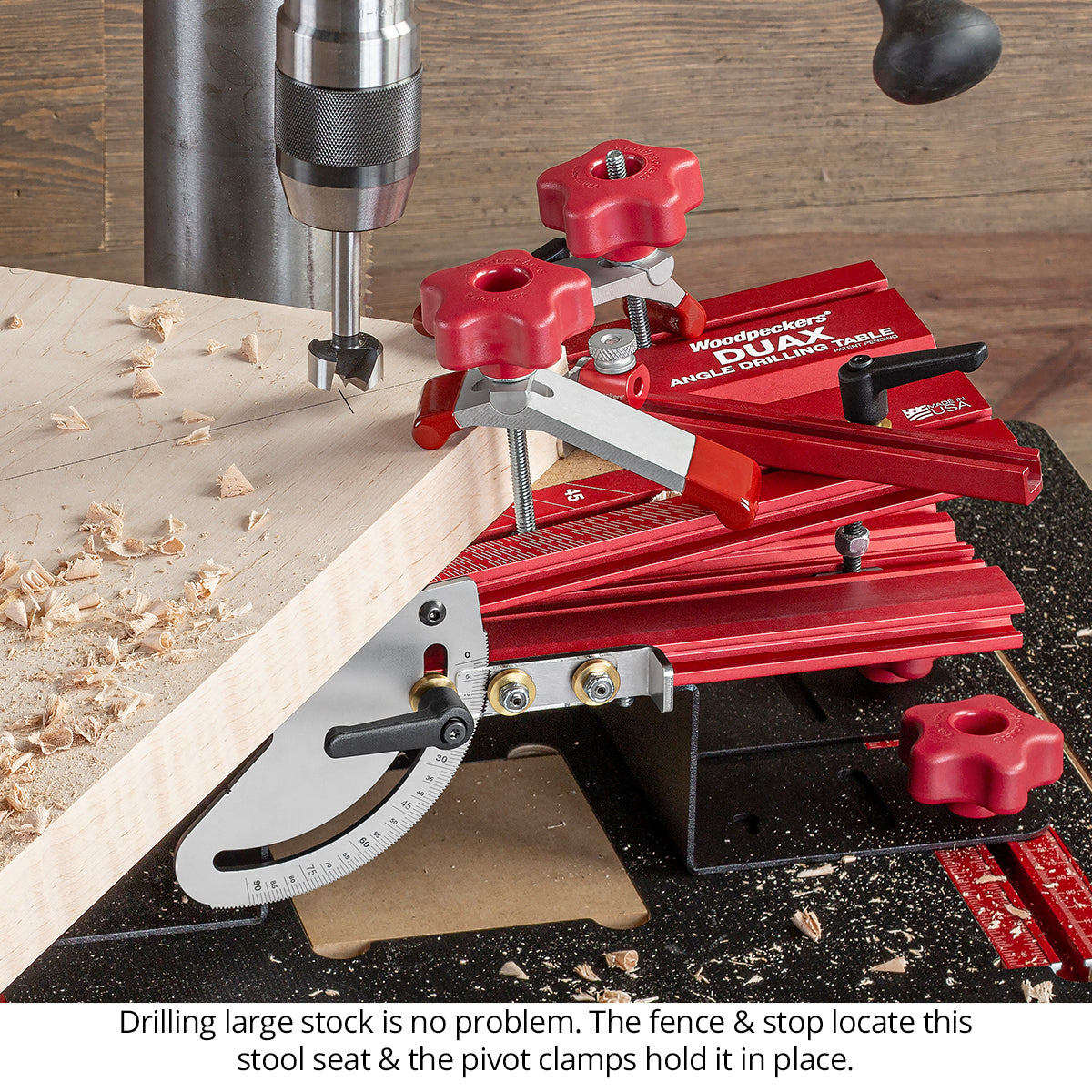

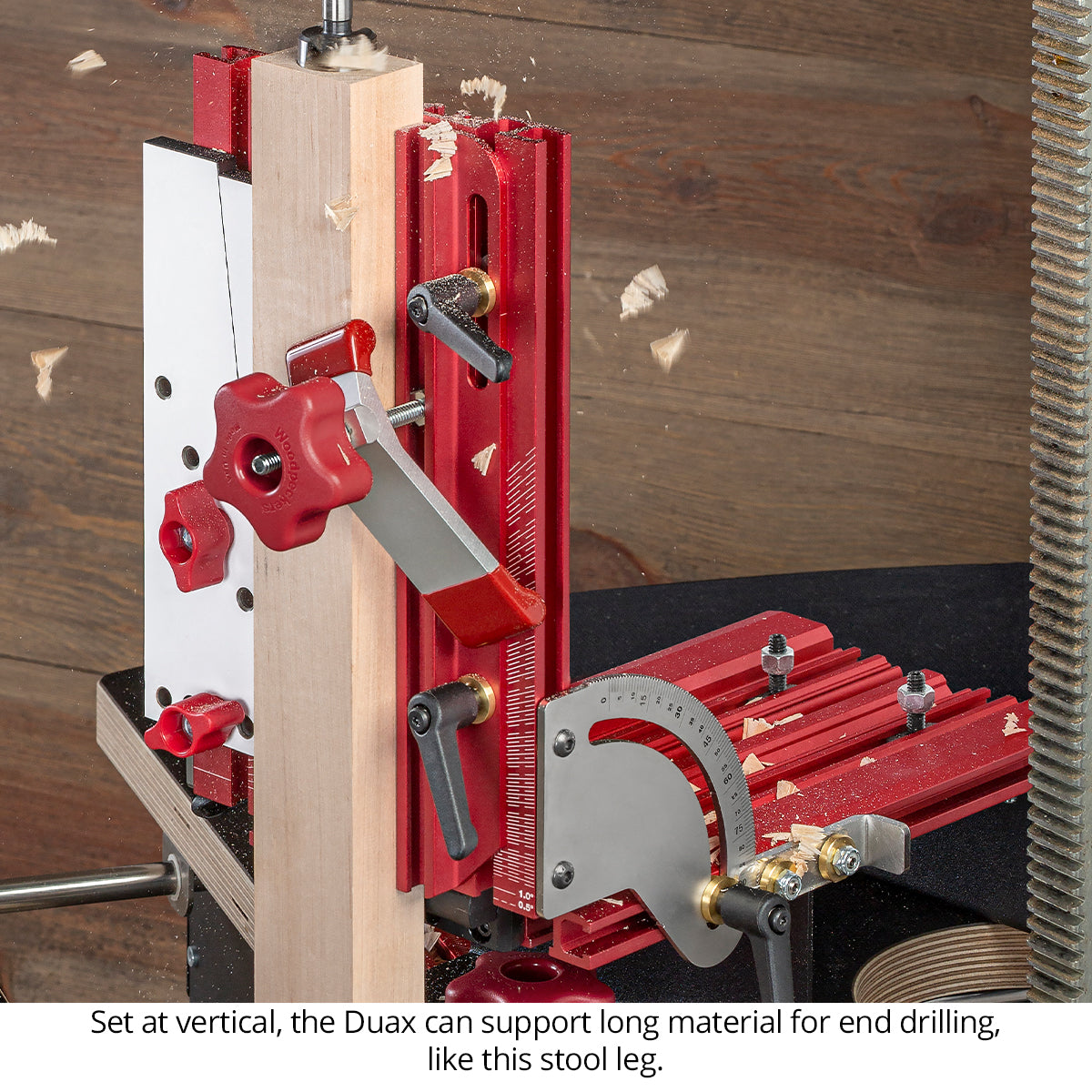

The table and fence will get your material placed correctly. Adding the Clamping Kit ensures it will stay in place safely while you drill. The Clamping Kit includes a wedge system to clamp your work against the fence and a pair of our Pivot Clamps to hold your work securely down to the table. You can even adjust the Duax vertically, hang it off the edge of the table and drill the ends of long material, like stool legs. The wedge gets tighter the more drilling pressure is applied.

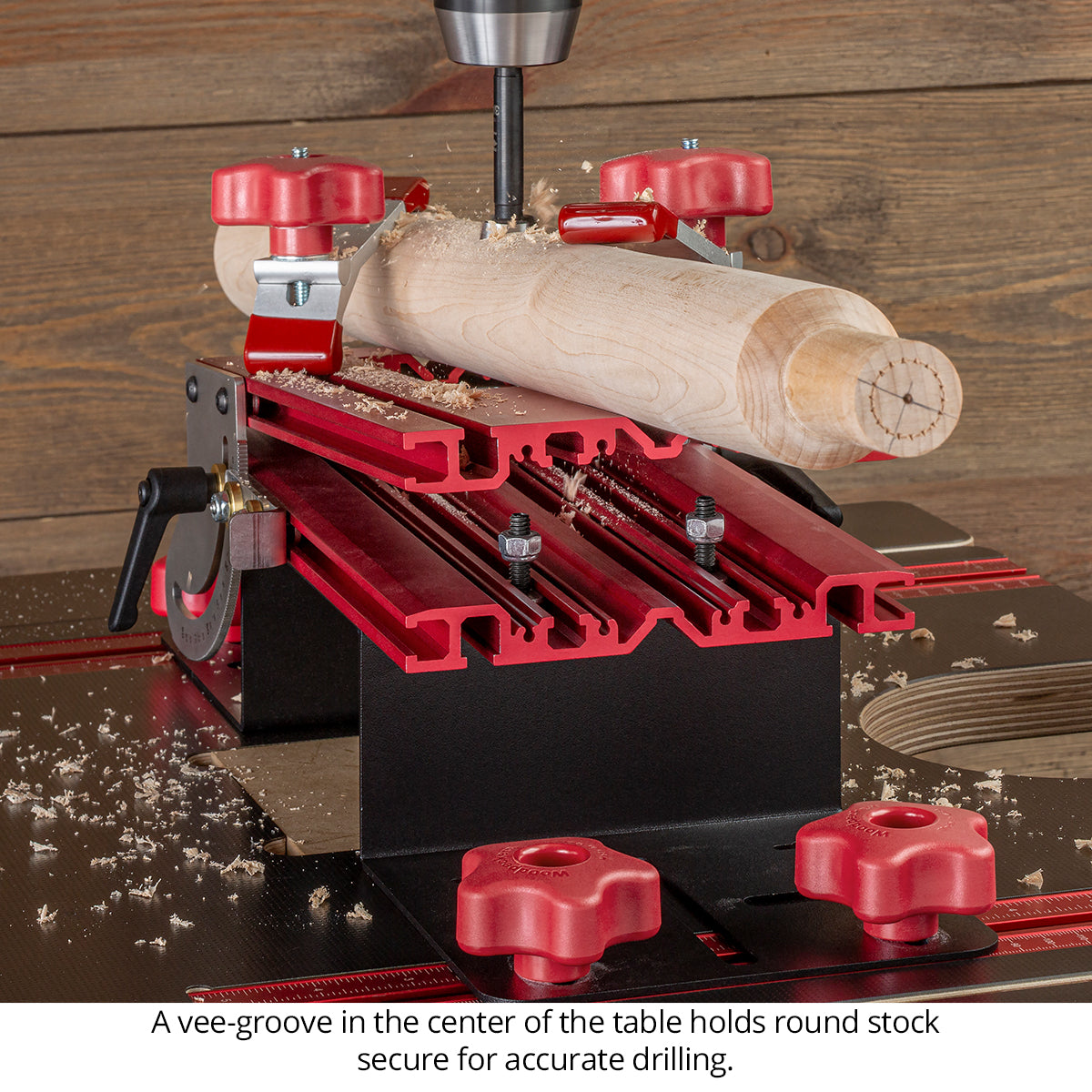

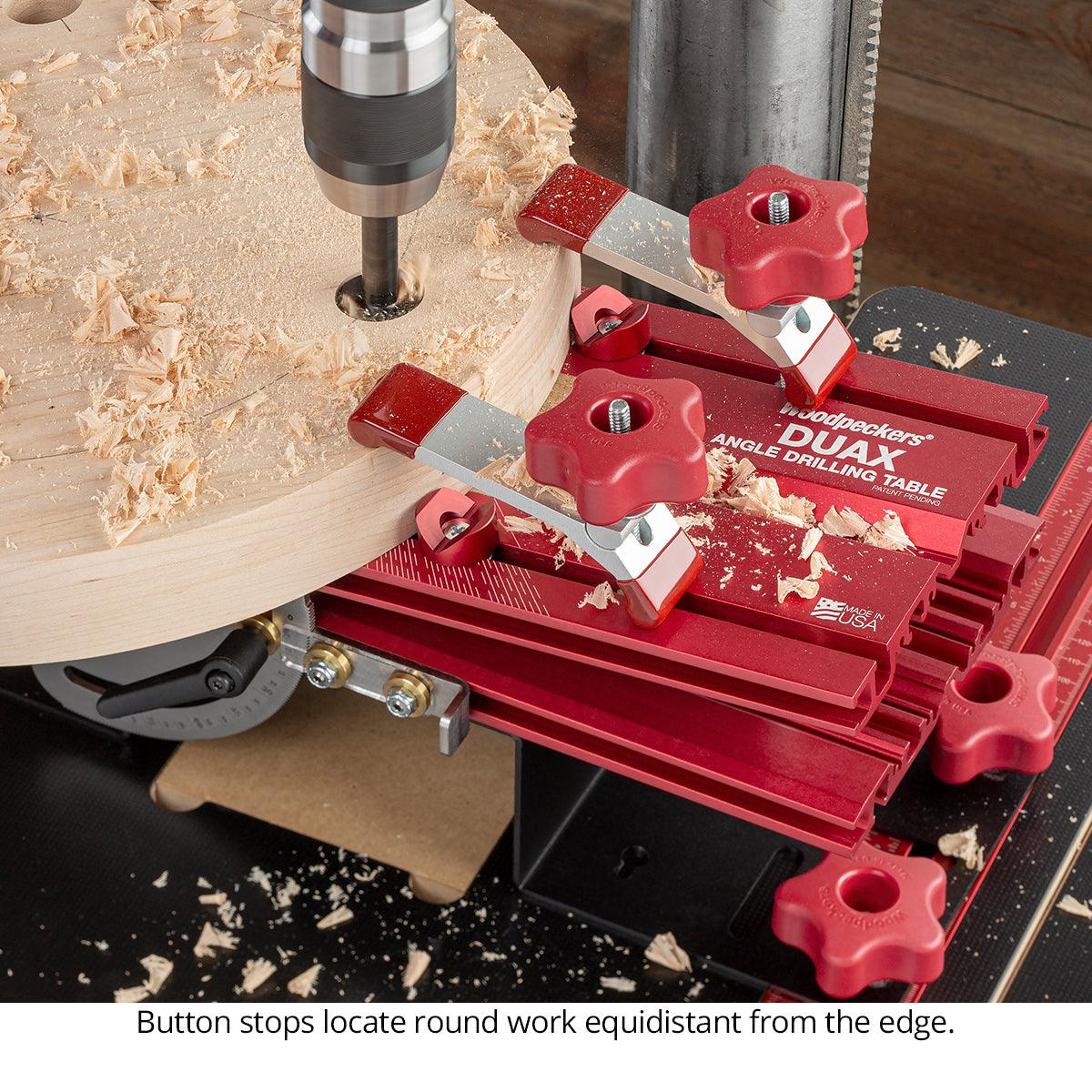

Also included in the Clamping Kit is a pair of button stops. Locate them in the table slots to position a round object precisely where you want it for drilling in the face. A vee-groove down the center of the table holds round stock for drilling across the diameter.

While we used stool components to demonstrate the capability of the Duax, chairs and stools are just a couple of the applications for the Duax. Think of hall trees, coat racks, tool holders, mug racks and the thousands of other projects where material comes together at an angle with a dowel or round tenon.

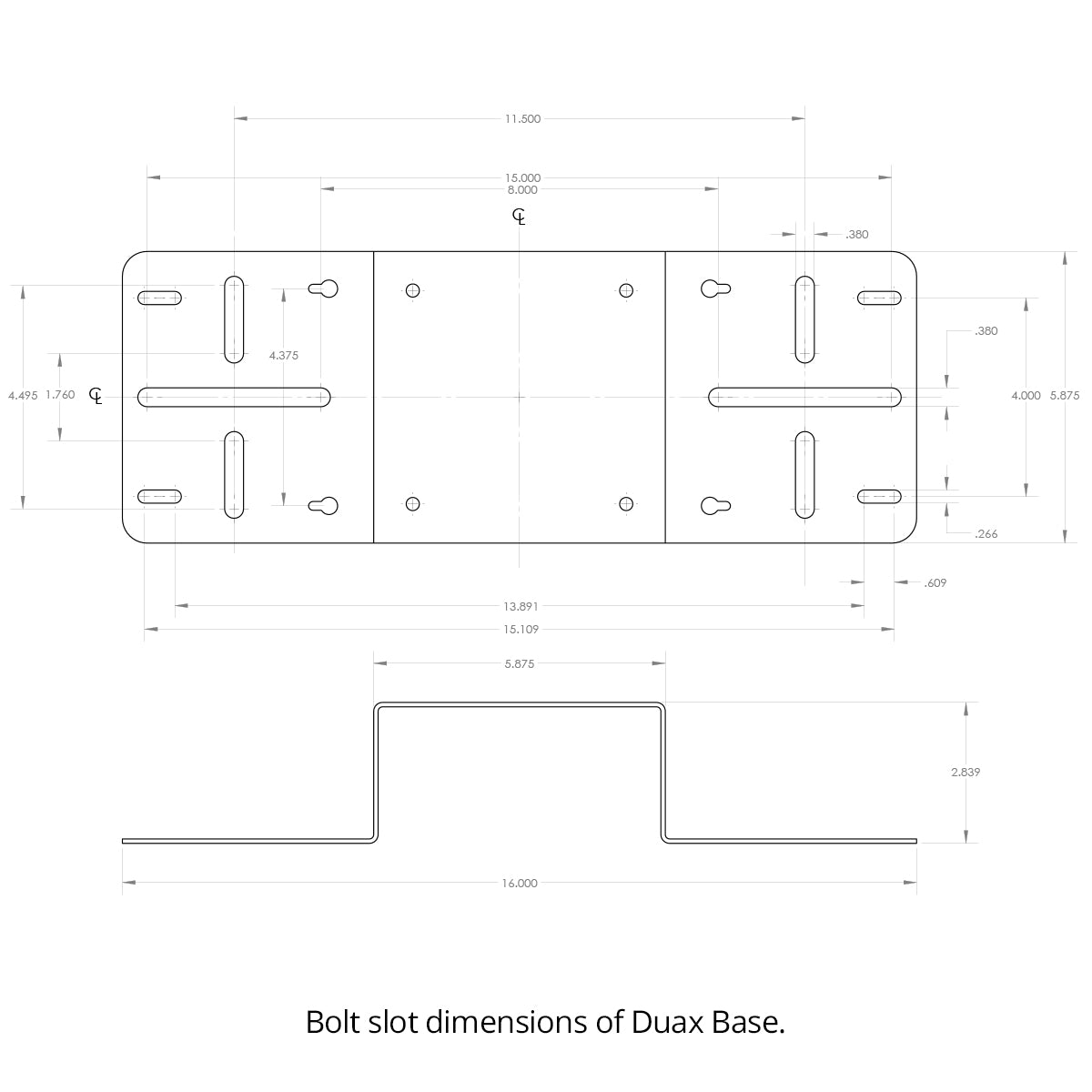

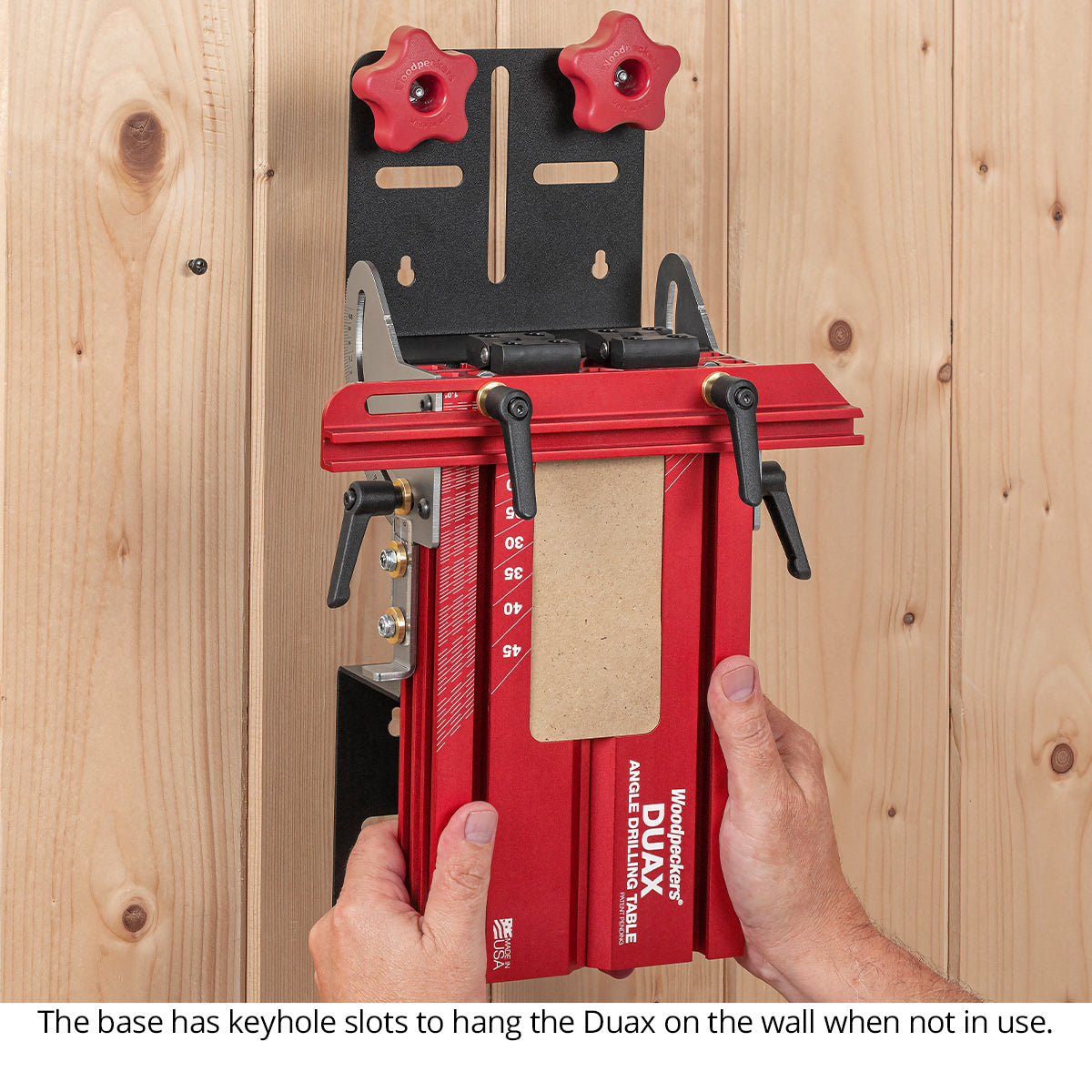

The base of the Duax is optimized for attachment to Woodpeckers DP-PRO Drill Press Table and our earlier Drill Press Tables. The attachment slots will also accommodate the holes, slots and tracks in many drill press tables. It is designed for drill presses 12" capacity and larger.  We added keyhole slots so you can keep your Duax stored out of the way, but in plain sight when you’re not using it.
