2096 Workholding Kit

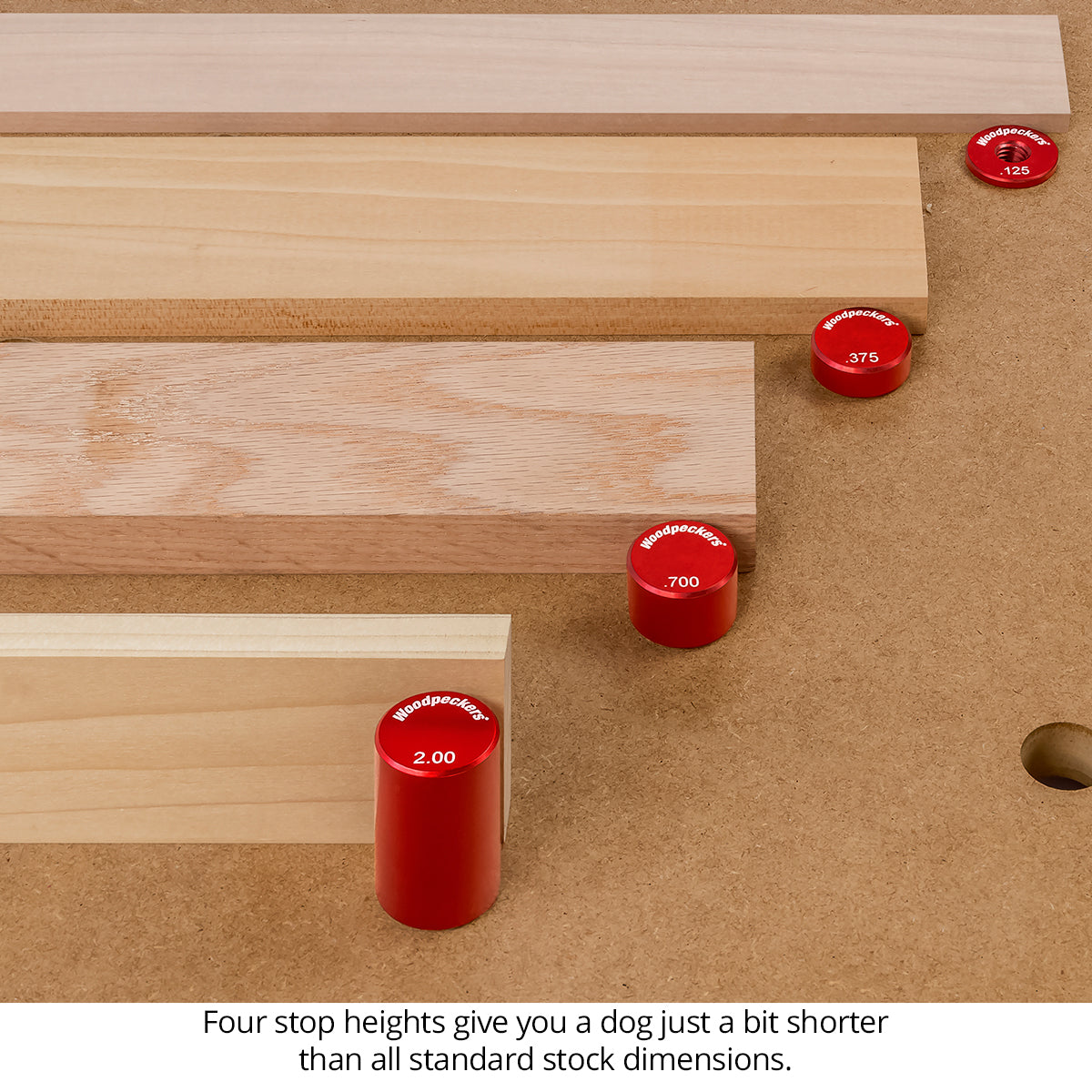

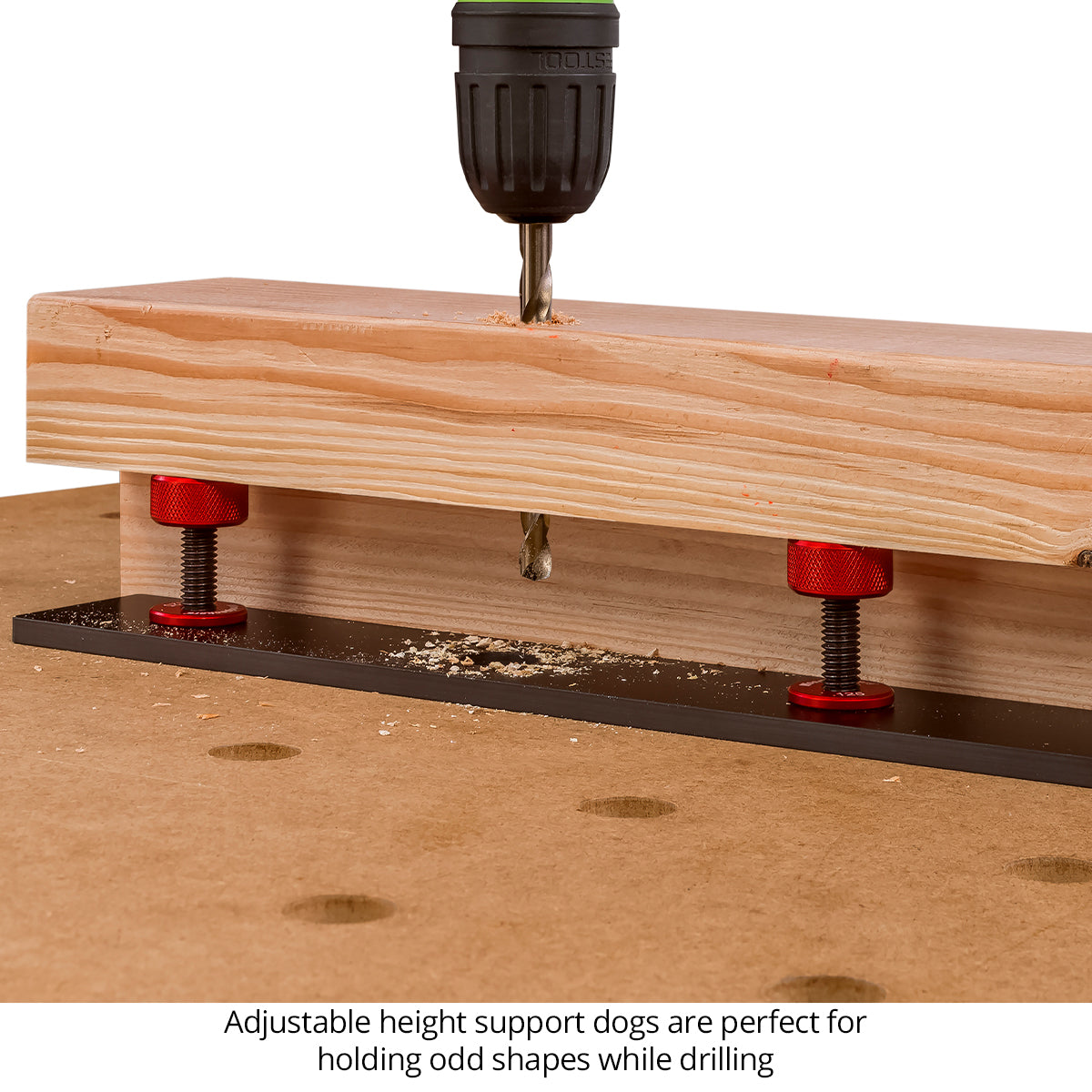

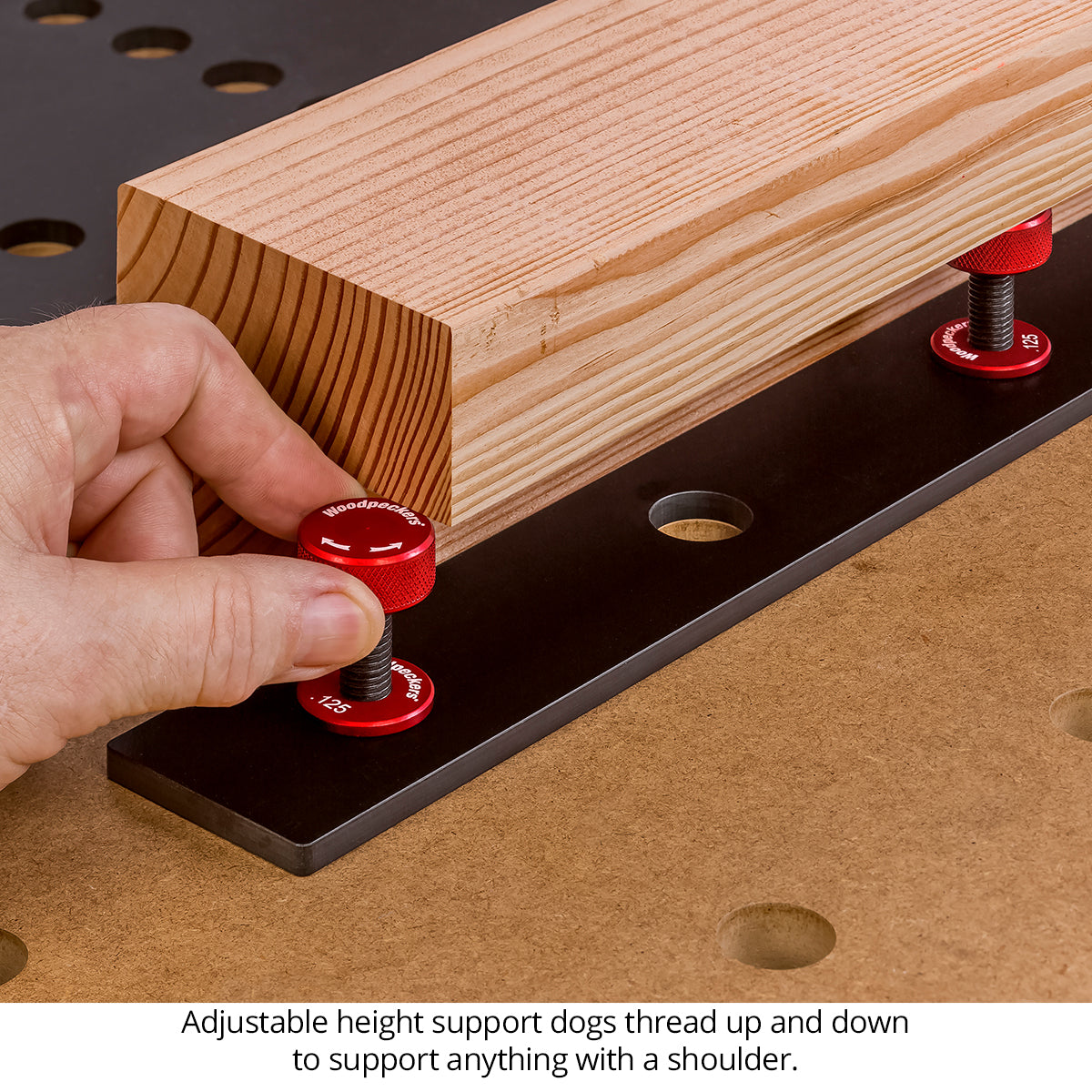

It starts with the dogs. The shafts of the solid aluminum dogs are turned on CNC lathes to a 20mm diameter for the first 7/8 of an inch. That section drops into your table. Above the table the dogs stand 1/8", 3/8", 0.7" or 2". That size range provides a solid stop that rests below the surface of most any material thickness you might use. The fifth dog is the cleverest of the pack. Thread the stem into any of the 1/8" dogs and you now have an adjustable height dog that can support rabbeted workpieces or anything with an offset shoulder up to 2-1/2".

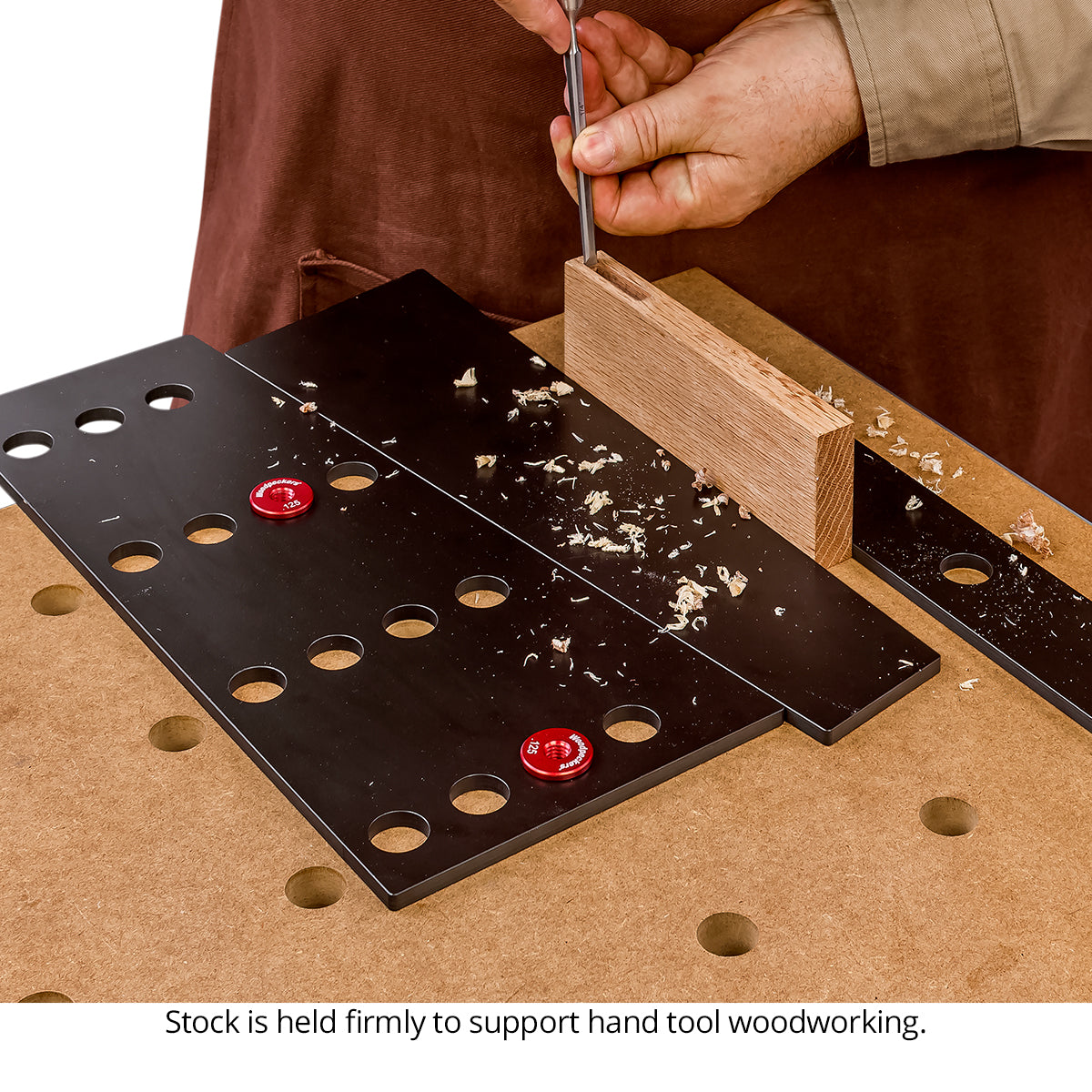

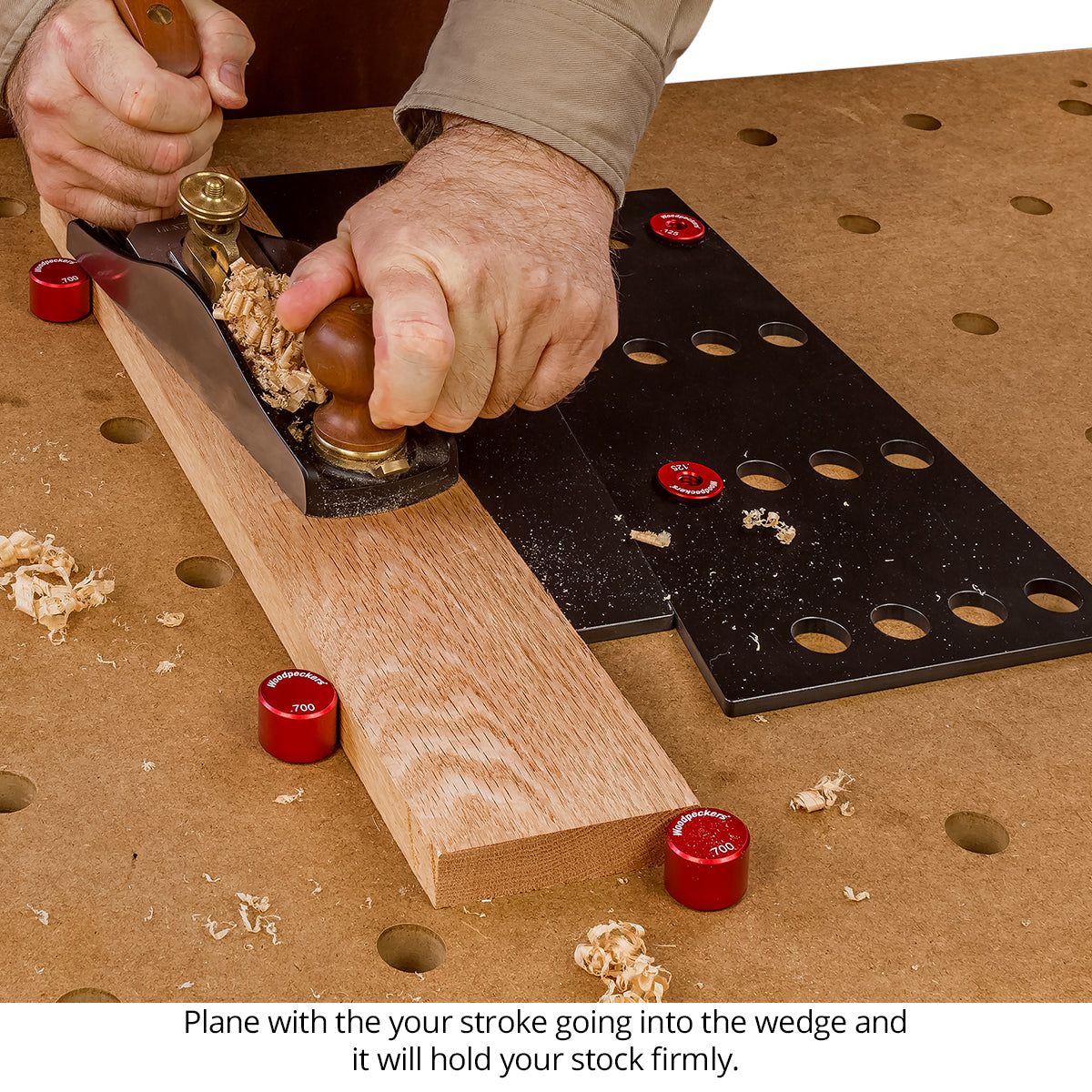

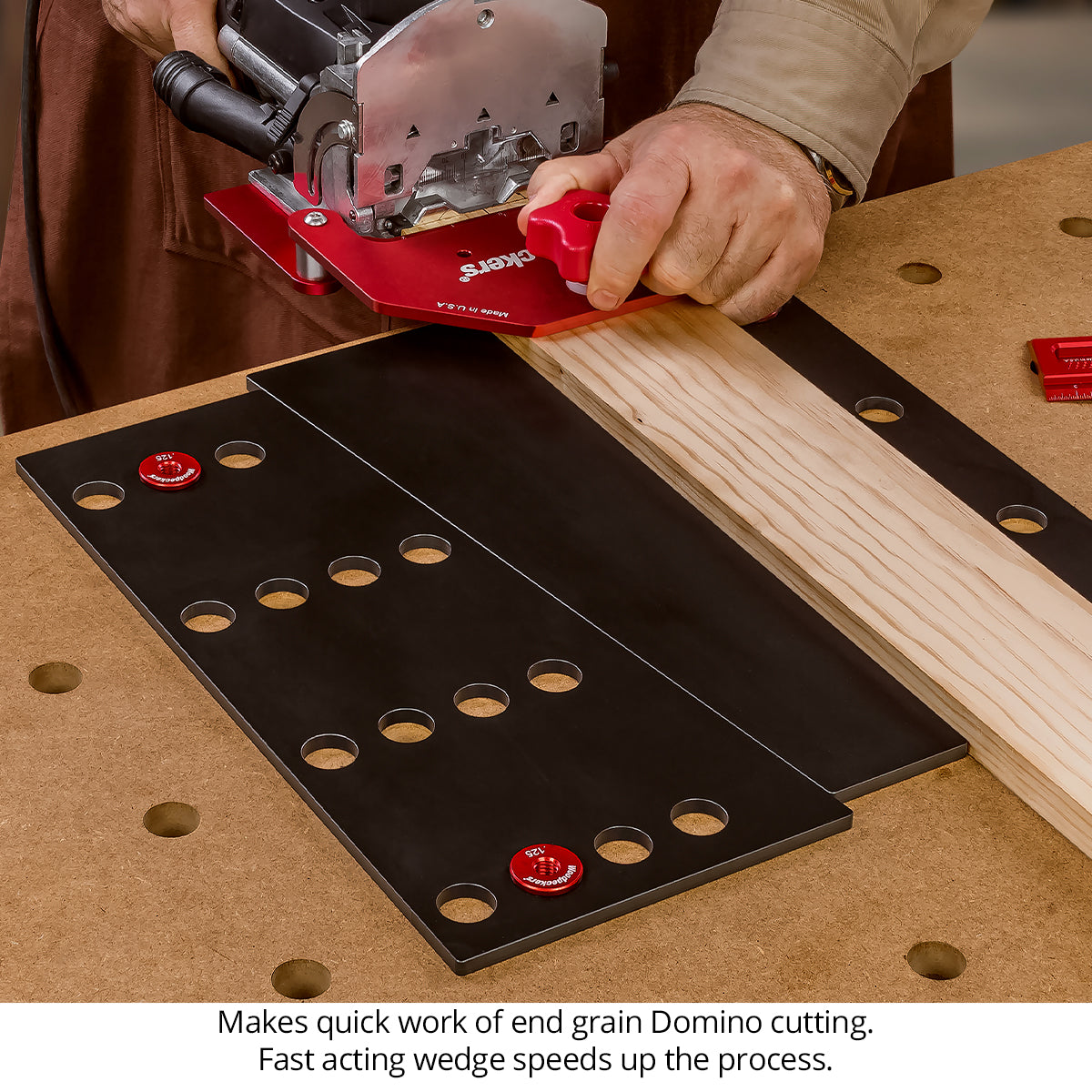

Combine the dogs with the wedges for rock solid workholding. To go along with the dogs the kit includes a set of 1/4" solid phenolic plates that create an opposing wedge clamp. Lock a straight edge stop or a couple of dogs on your table, put your workpiece against it, then position a floating wedge and a fixed wedge on the other side. Lock the fixed wedge to the table, give the floating wedge a tap and your workpiece is secure and ready for you to rout, saw, mortise, bevel, sand or whatever it is you need to do.

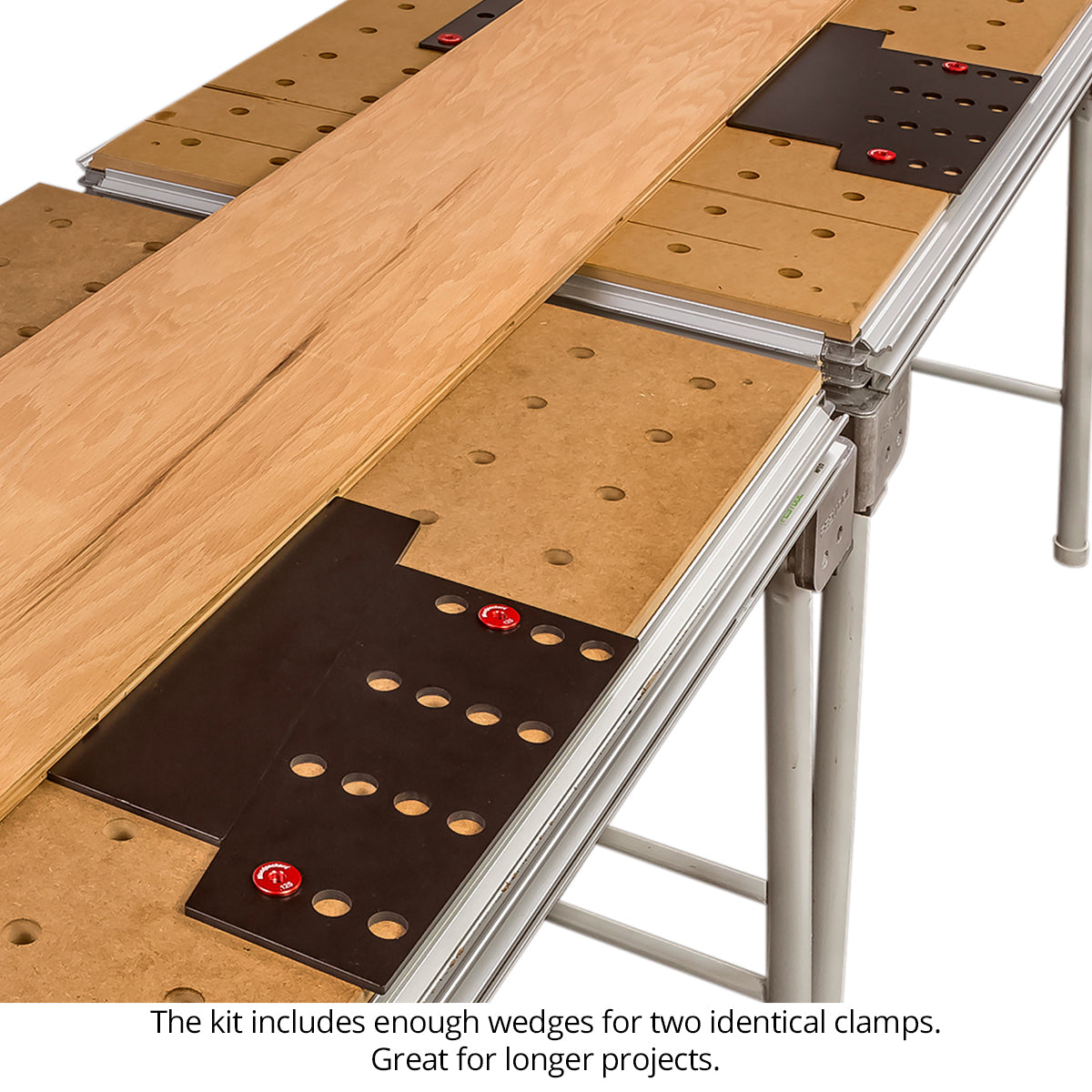

With two sizes of floating wedges you’ll always be able to match up your workpiece to the holes in the table. To support longer work or set up multiple jobs at once, you have enough dogs, stops and wedges to have two identical clamping stations set up at the same time.

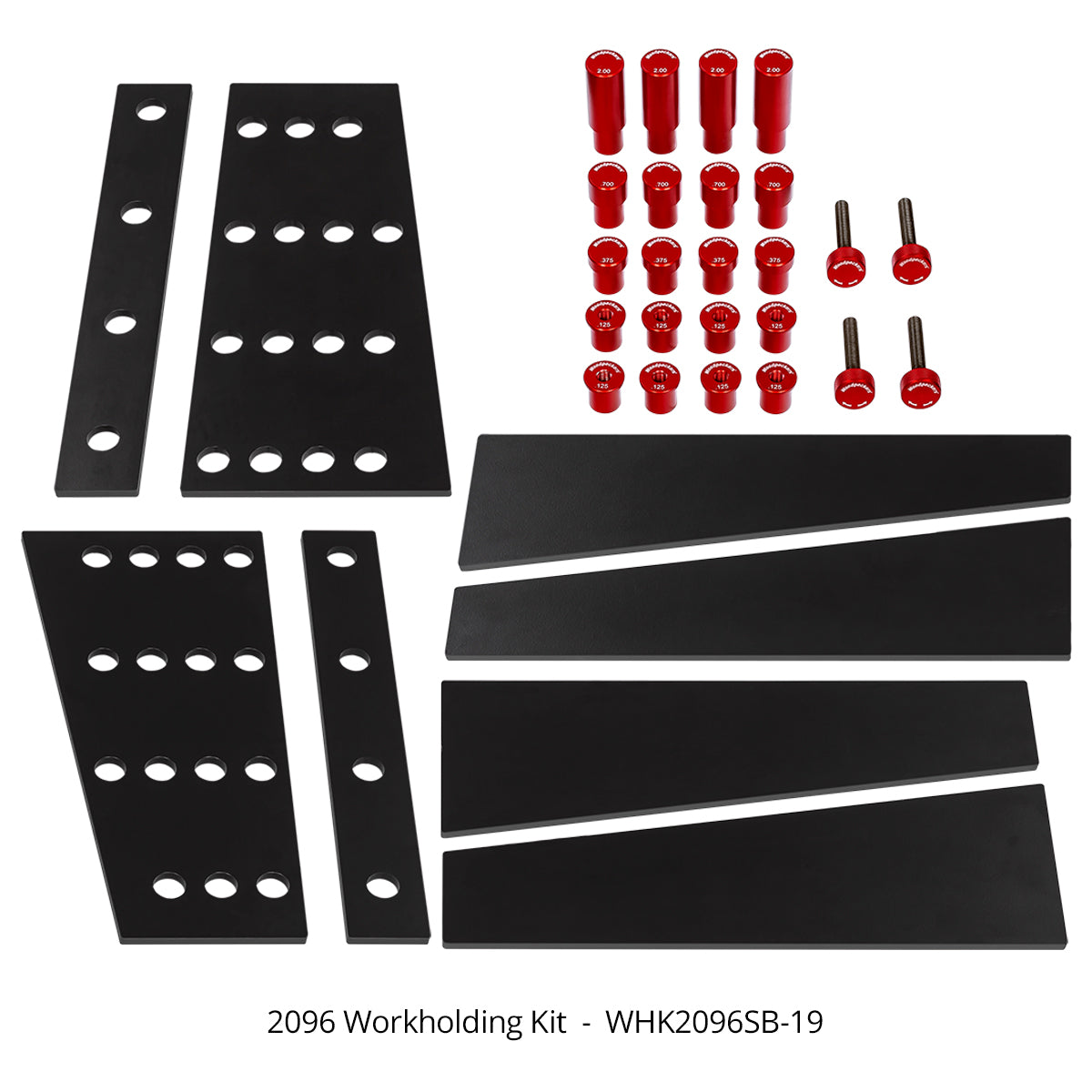

Here’s exactly what you get

• 8 – 1/8" Tall Dogs with threaded holes
• 4 – Adjustable Height Support Dogs
• 4 – 3/8" Tall Dogs
• 4 – 0.7" Tall Dogs
• 4 -- 2" Tall Dogs
• 2 – 4-1/2" x 14" Fixed Wedges
• 2 – 1-7/8" Floating Wedges
• 2 – 2-1/2" Floating Wedges
• 2 -- 2" x 14" Straight Edge Stops

Like all Woodpeckers tools, the 2096 Workholding Kit is precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland). This former OneTIME Tool now joins our permanent product line-up along with a growing family of products designed to help you get the most out of your Festool power tools and tables.
