Spiral Stubby Square End CNC Router Bits - 1/4 Shank - Solid Carbide

Ultra-Shear Spiral Stubby Square End CNC Router Bits - 1/4 Shank - Solid Carbide - 2 Flute

American Made Quality at Factory Direct Pricing

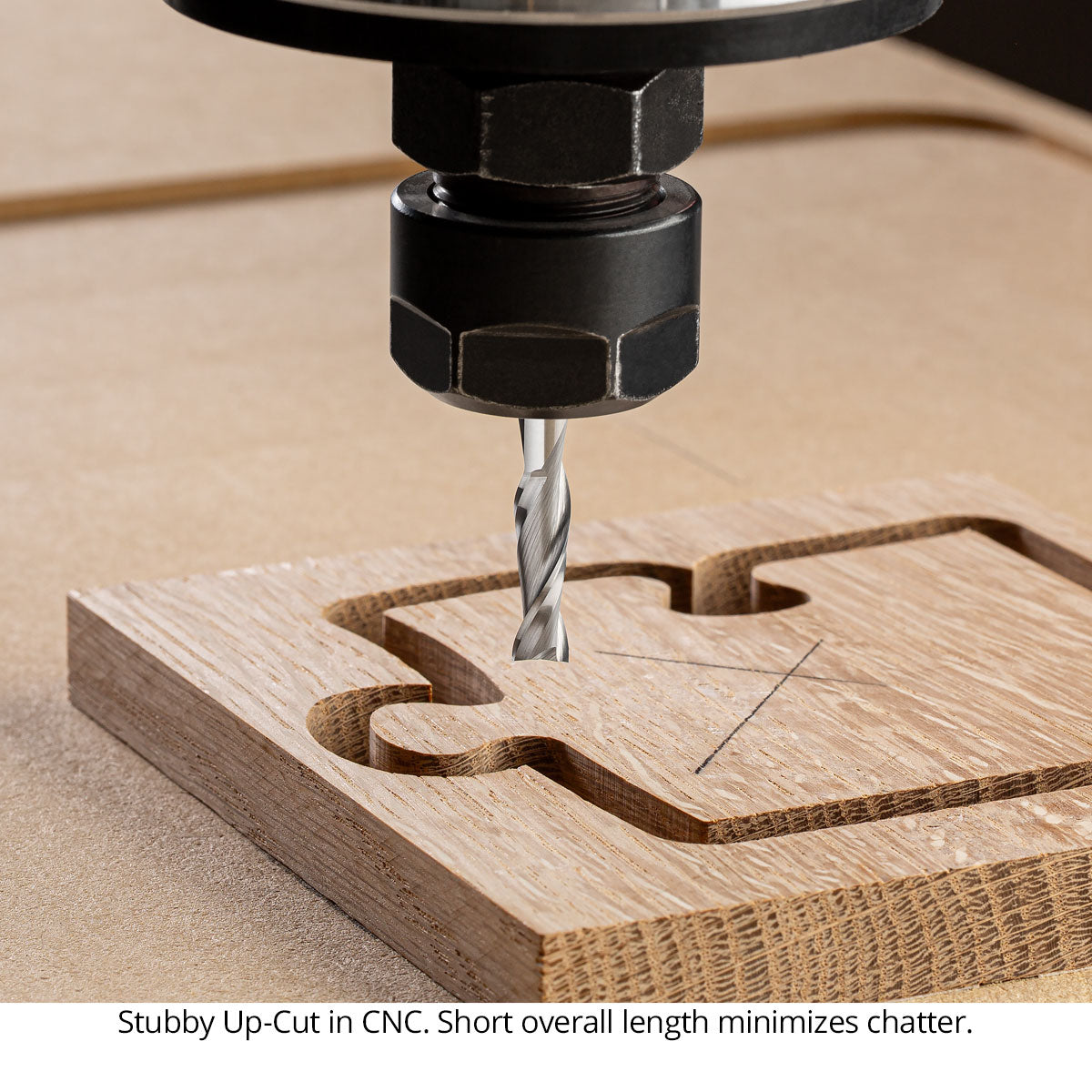

Ultra-Shear Stubby Solid Carbide Spiral Bits are made to perform especially well in desktop and benchtop CNC machines, where shorter tooling can make a noticeable difference. Each bit has a 1/4" shank and 2" overall length, making it 1/2" shorter than many bits with the same cutting length. That shorter profile helps reduce deflection and chatter in compact CNCs with ER-11 collets, supporting more controlled routing in machines with limited spindle size and rigidity.

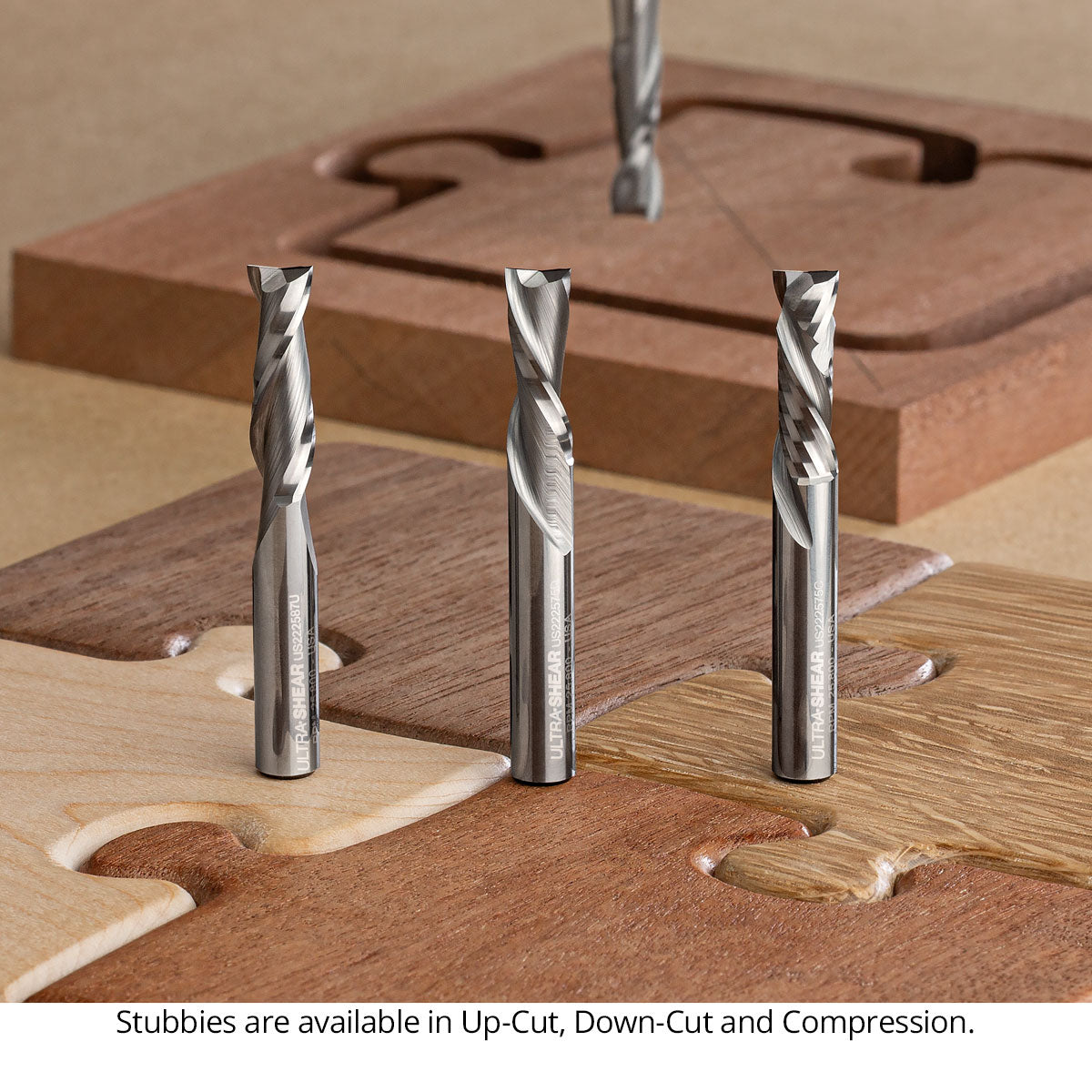

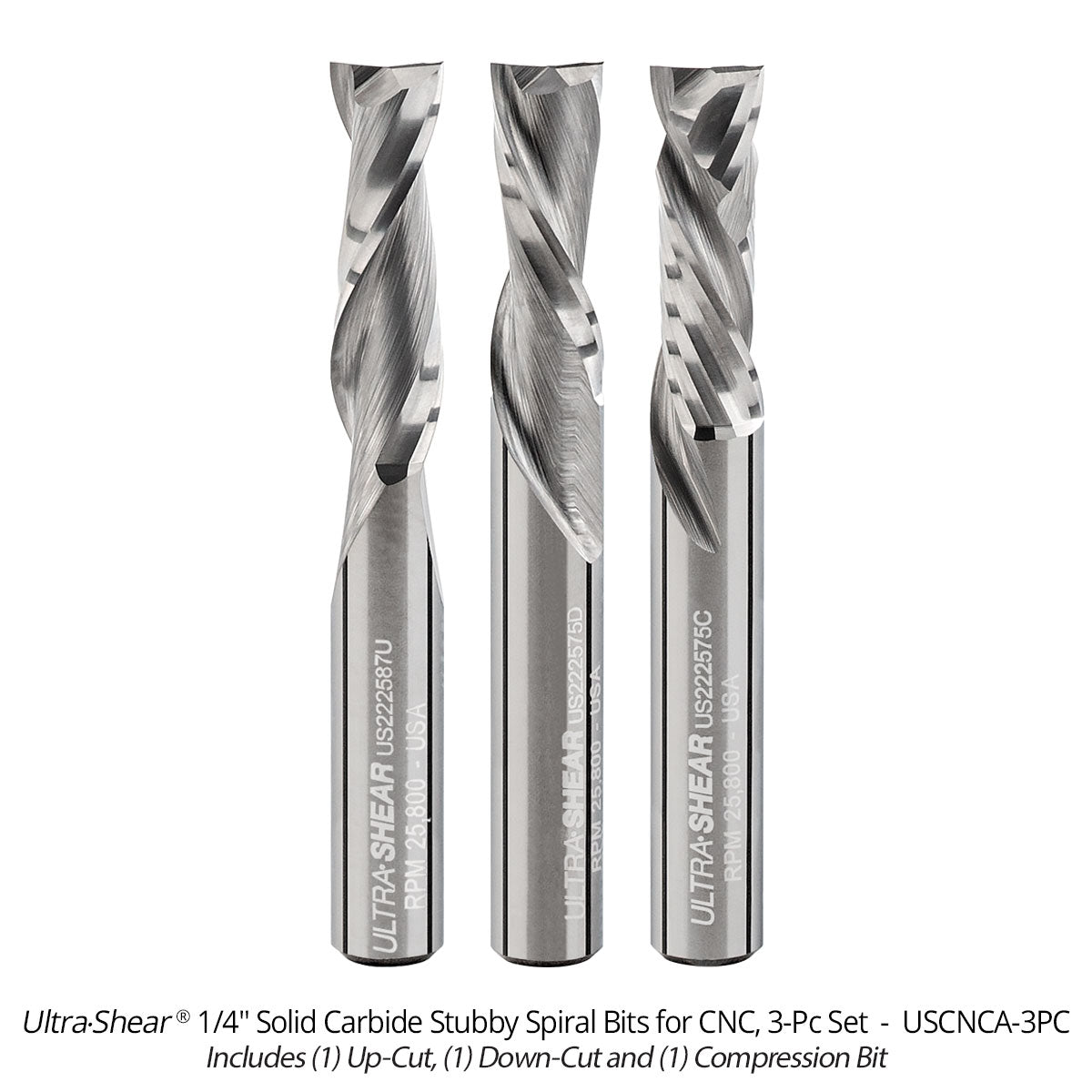

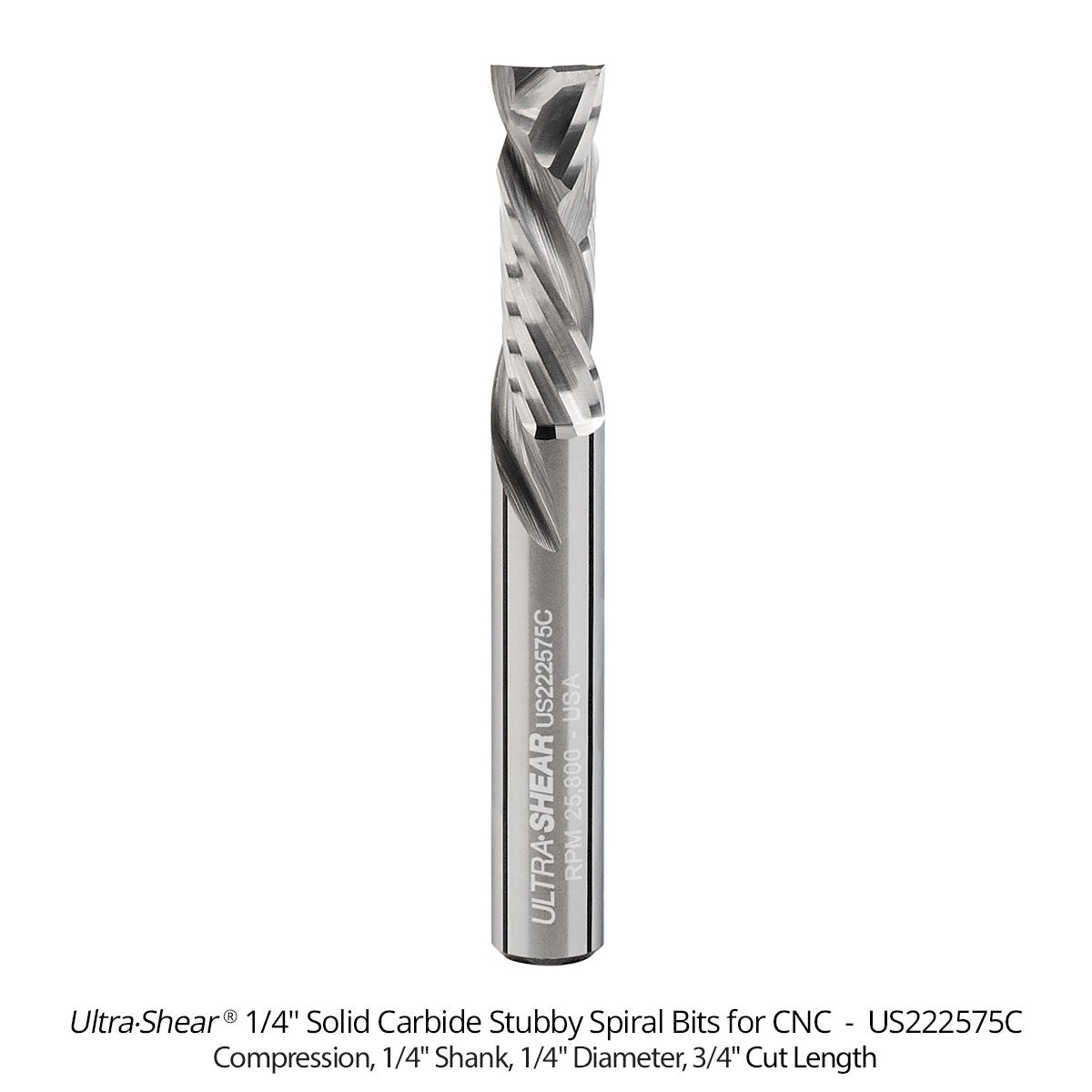

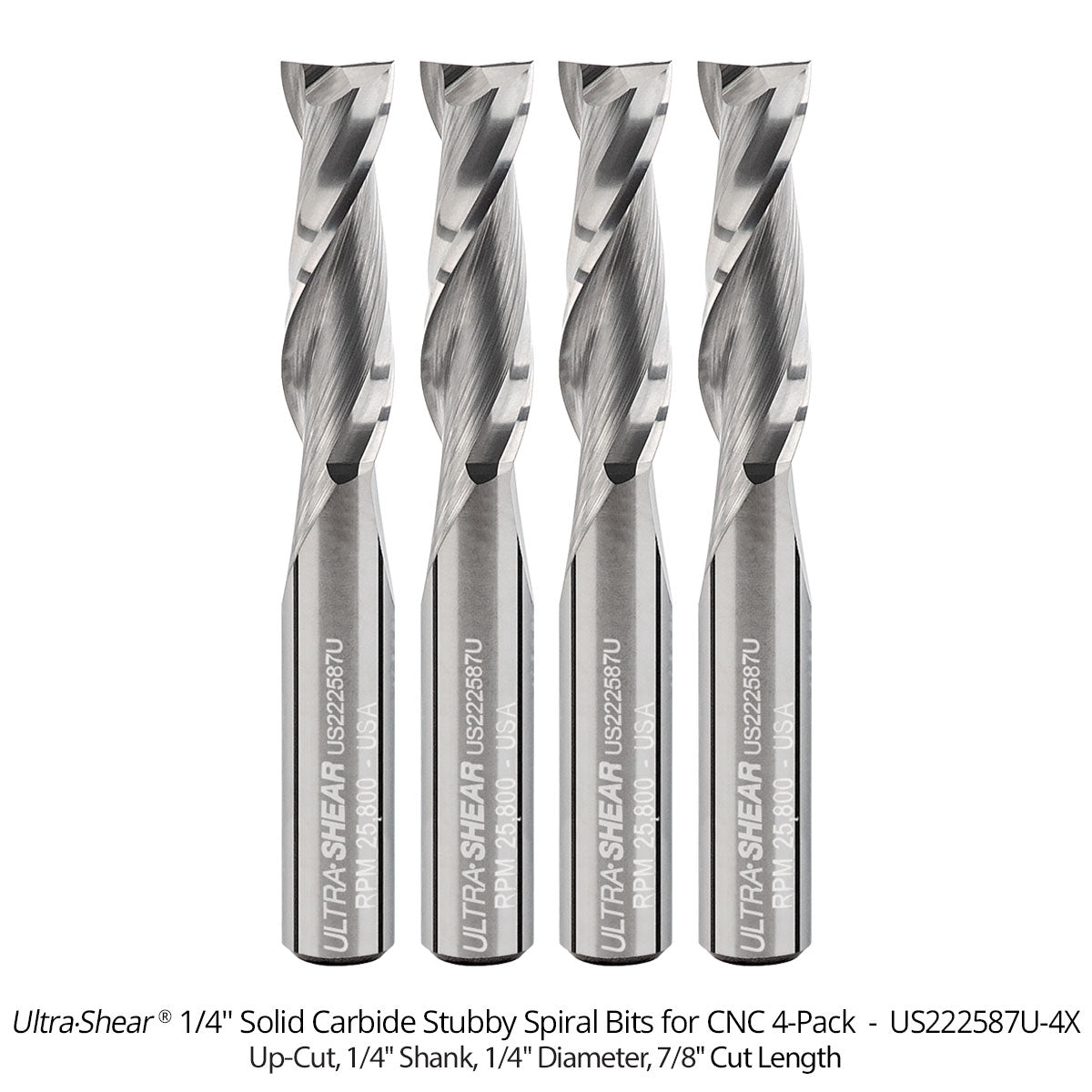

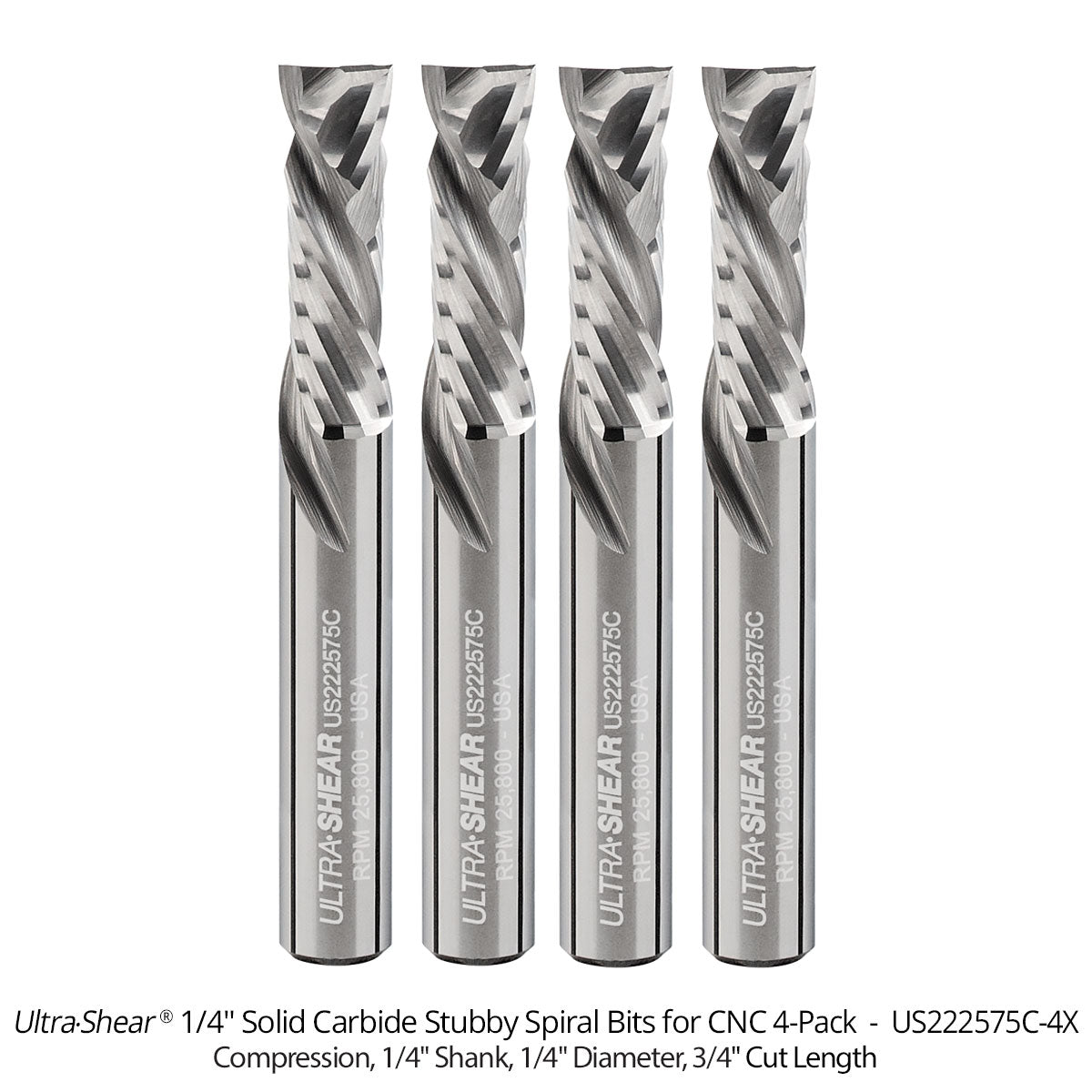

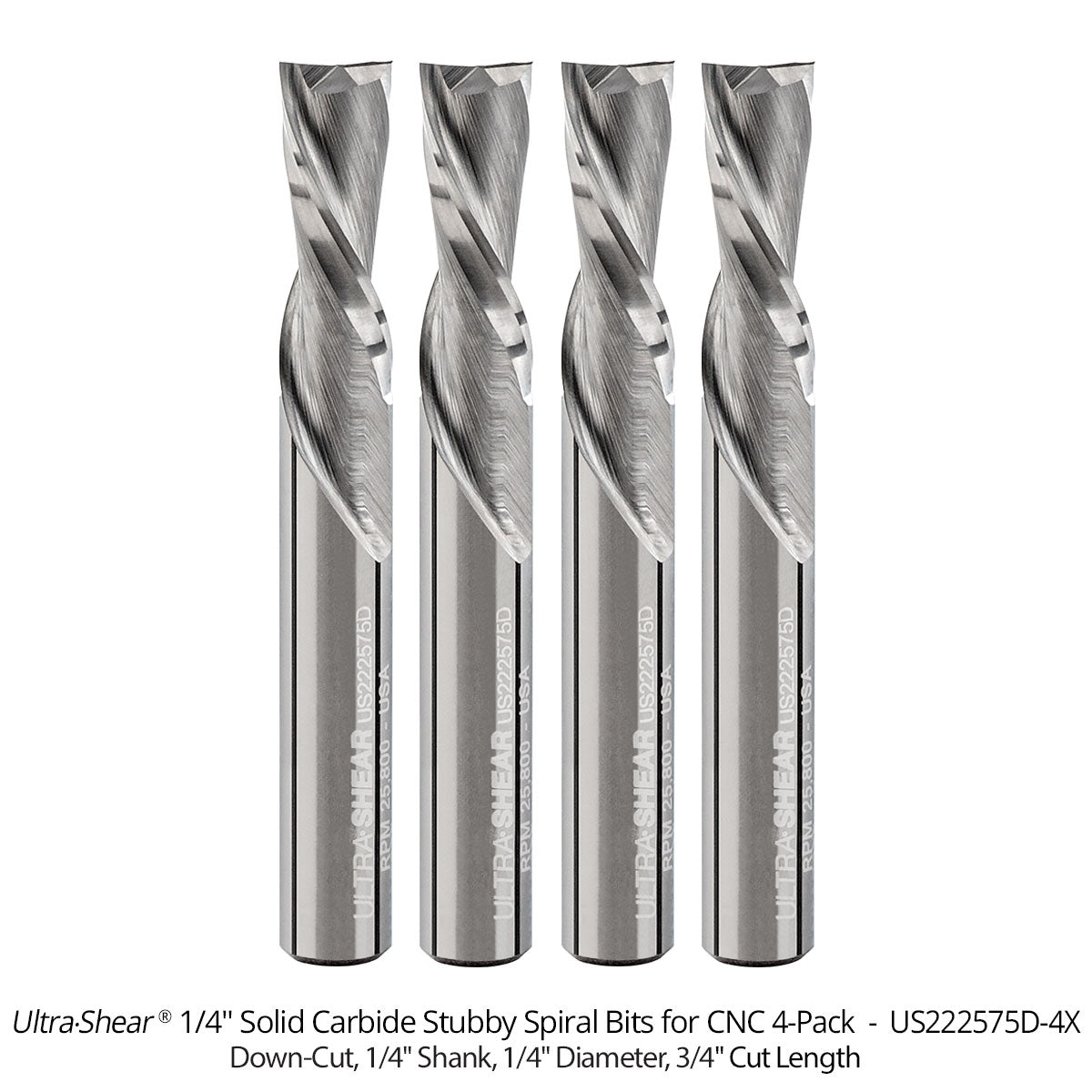

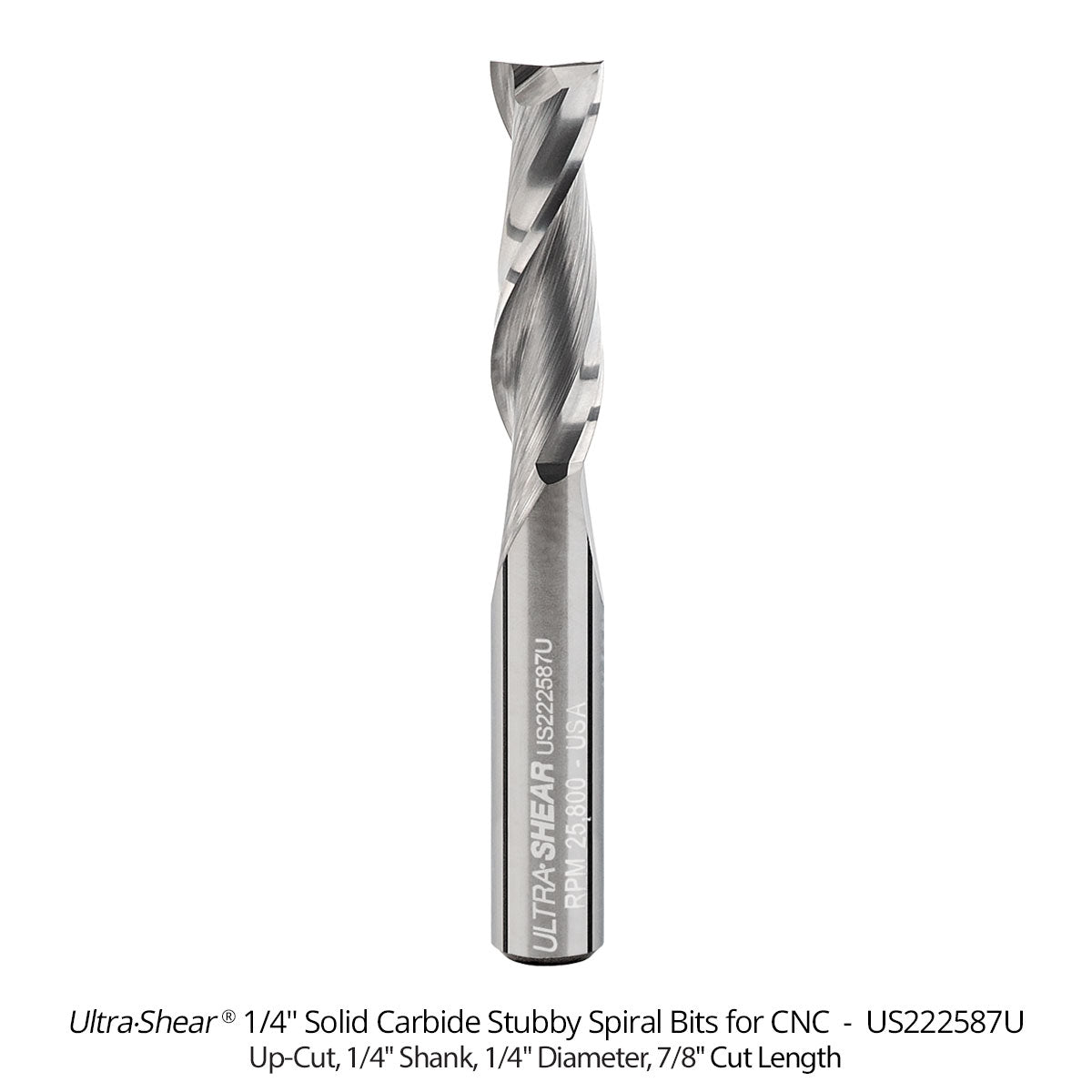

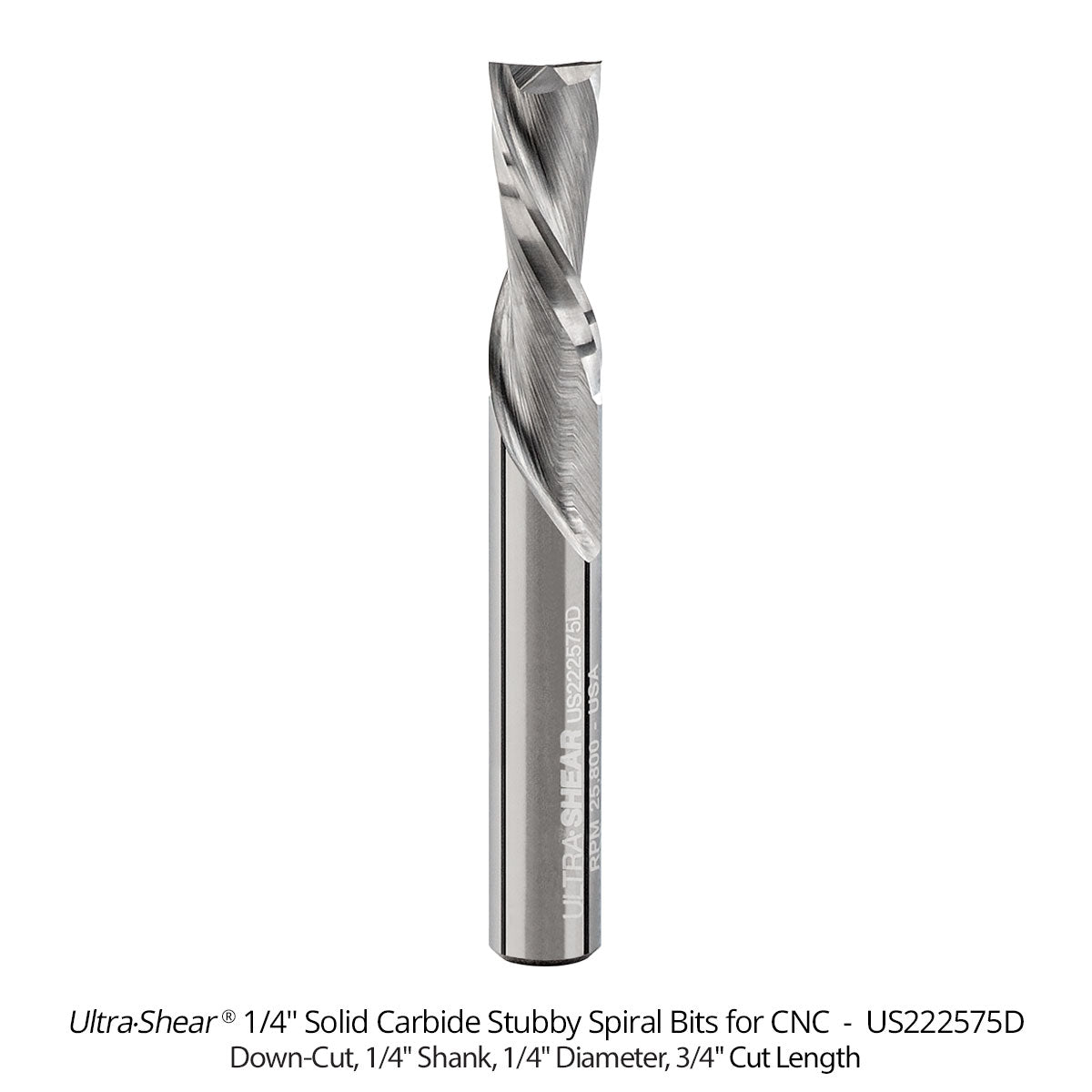

We offer three square-end configurations for common CNC cutting tasks. The up-cut bit has a 7/8" cutting length and is intended for solid wood and cuts where chip evacuation is important. The down-cut bit has a 3/4" cutting length and is used for clean top edges in plywood and other panels. The compression bit also has a 3/4" cutting length and cuts toward the middle from both the top and bottom surfaces. Each style is available individually or in a 4-pack, and the 3-piece CNC set includes one up-cut, one down-cut, and one compression bit.

Ultra-Shear uses state-of-the-art CNC grinding equipment, the highest quality carbide, ultra-fine grinding wheels and skilled Northeast Ohio machinists to produce American-made router bits at extremely competitive prices. The days of paying extra for middleman markups are over. Buy direct from the manufacturer and pocket the savings. We’re confident you won’t find American-made short OAL carbide spirals of the same design for less.
