Deep Reach CNC Router Bits - Solid Carbide - 1/4 Shank

Ultra-Shear Deep Reach CNC Router Bits - Solid Carbide - 1/4 Shank

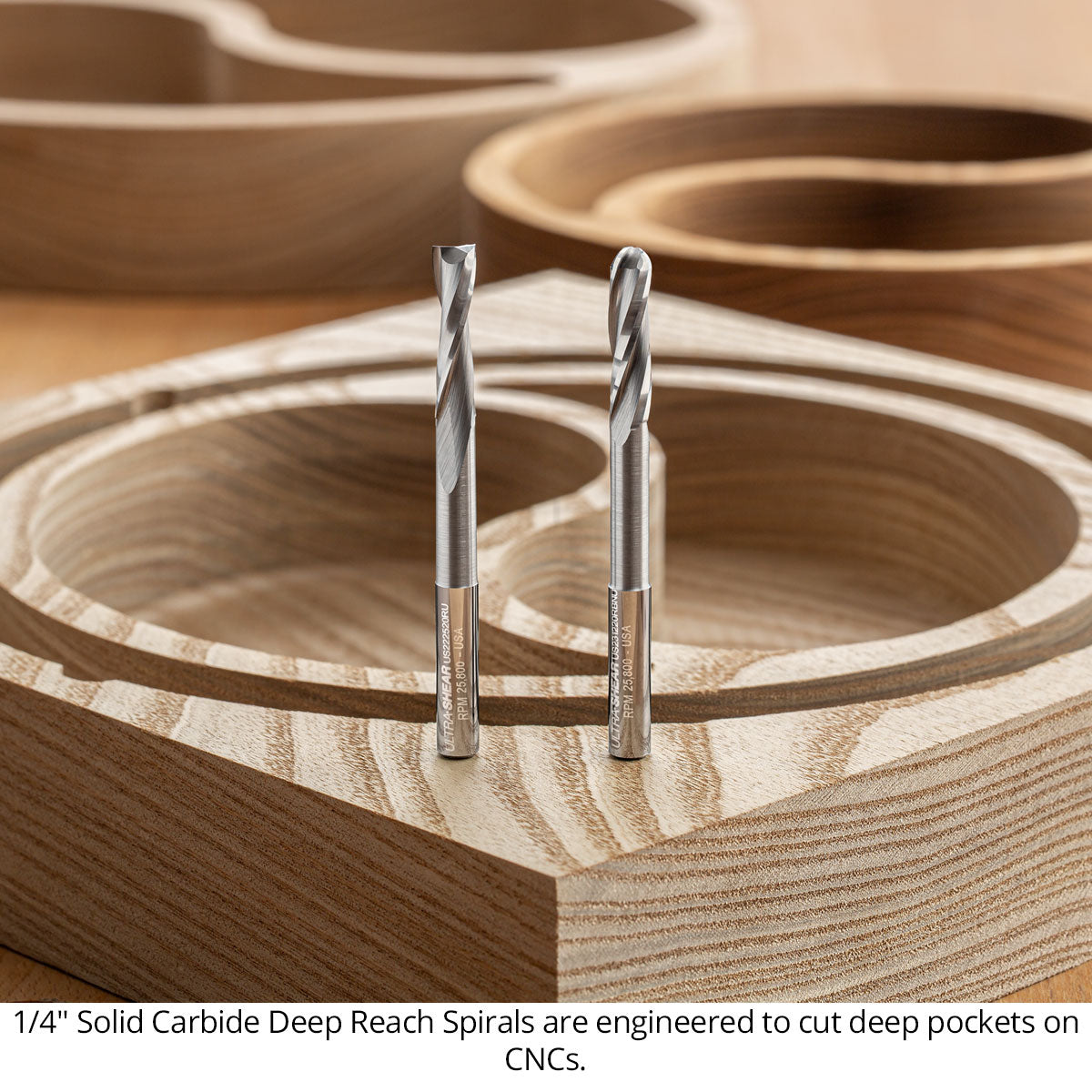

Ultra-Shear Solid Carbide CNC Deep Reach bits are designed for deep pocket cuts on desktop CNC machines and larger CNC routers.

2" cut-length bits are often 4" overall, which can lead to deflection and chatter. These Deep Reach Spirals use a 3" overall length, with a 1" collet zone for ER-11 collets and larger collets, a 1" cutting zone, and a 1" relieved section between the cutting and collet zones to clear sidewalls while maintaining rigidity.

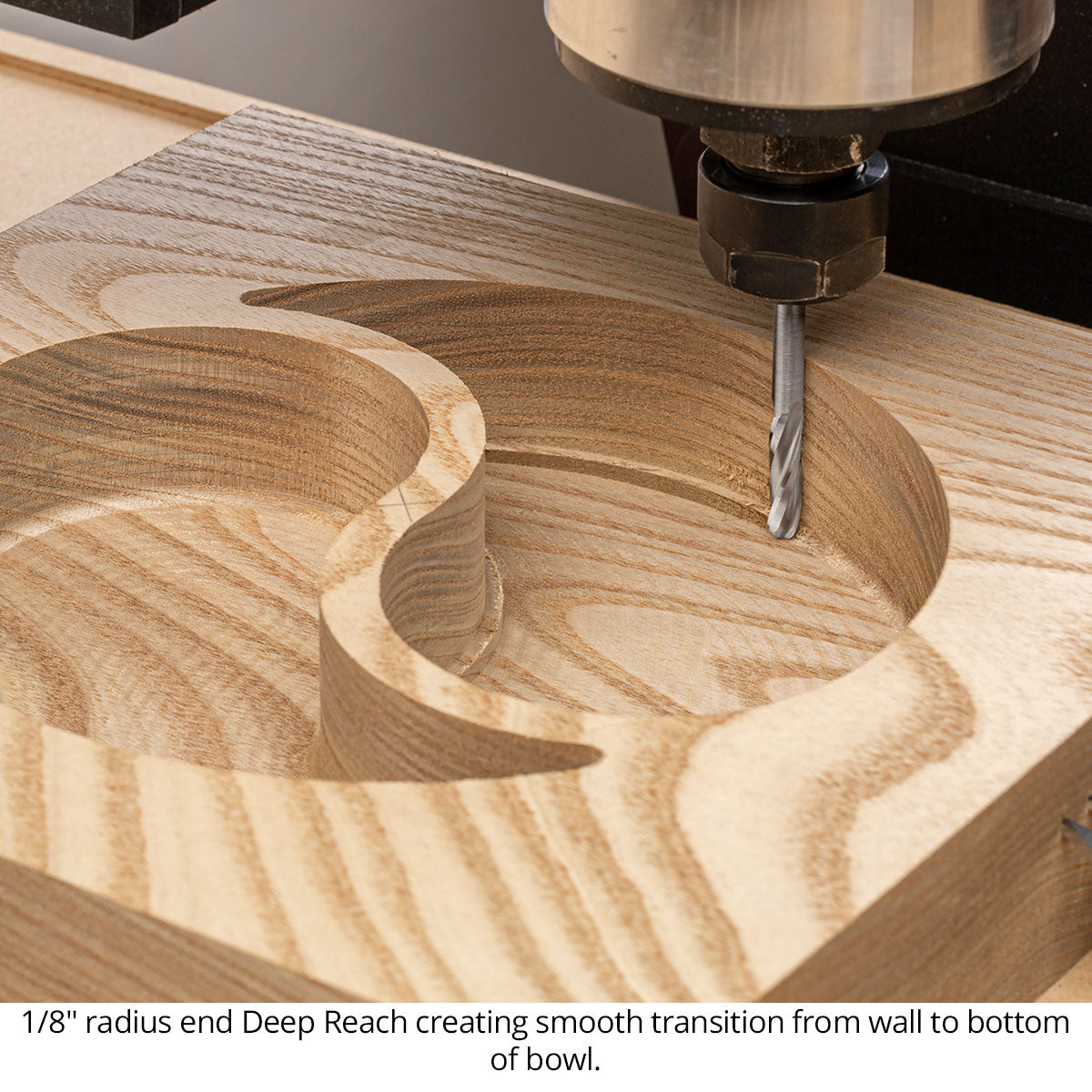

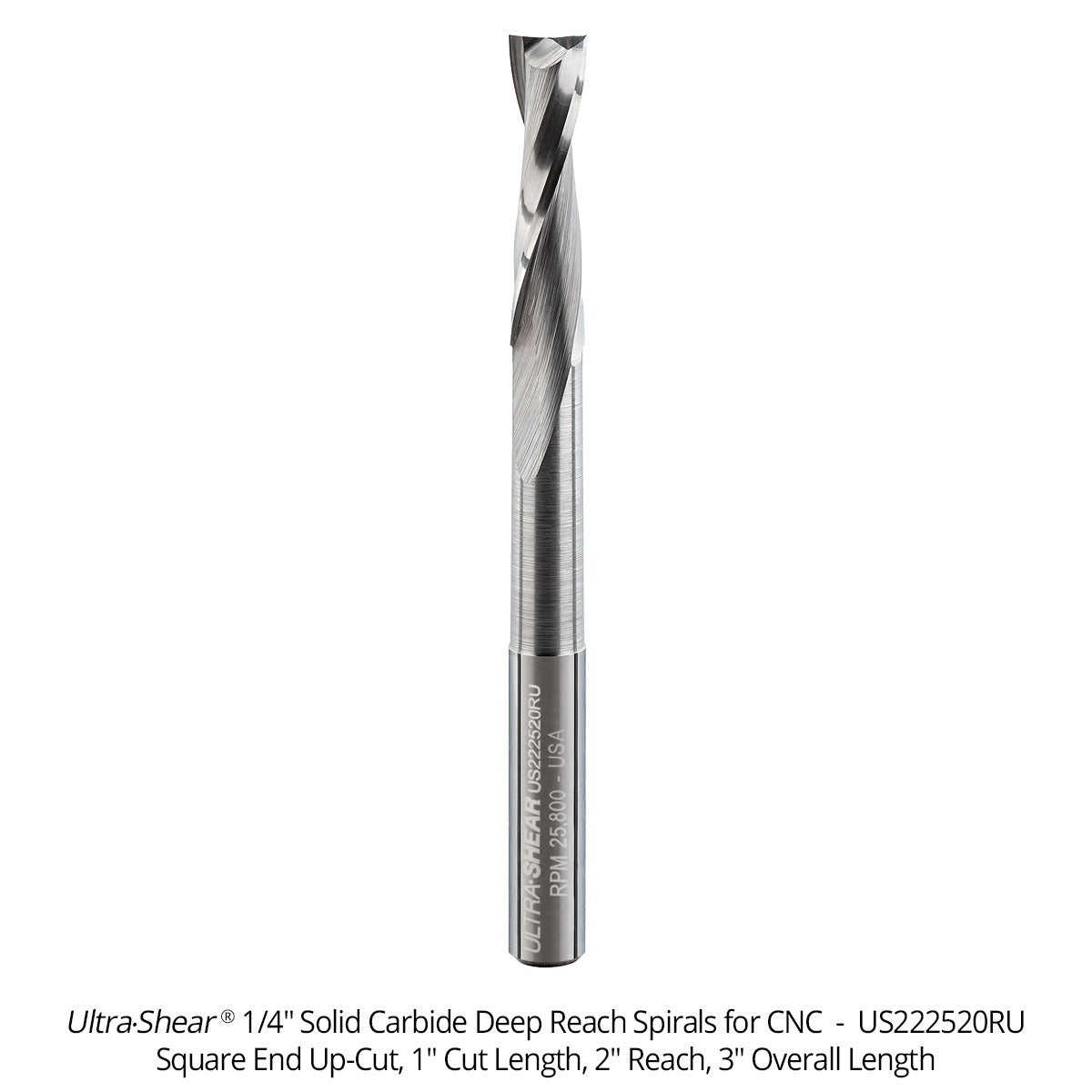

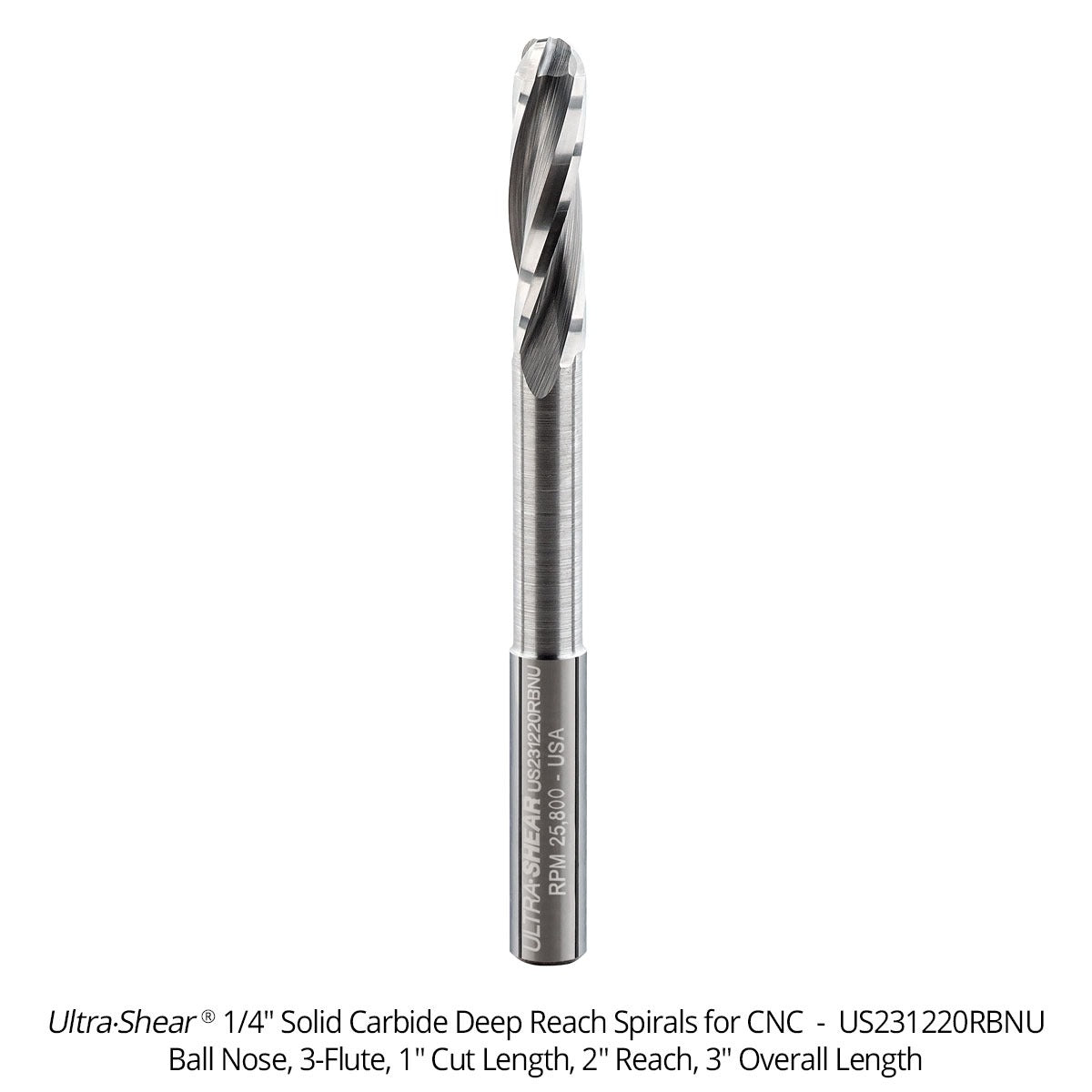

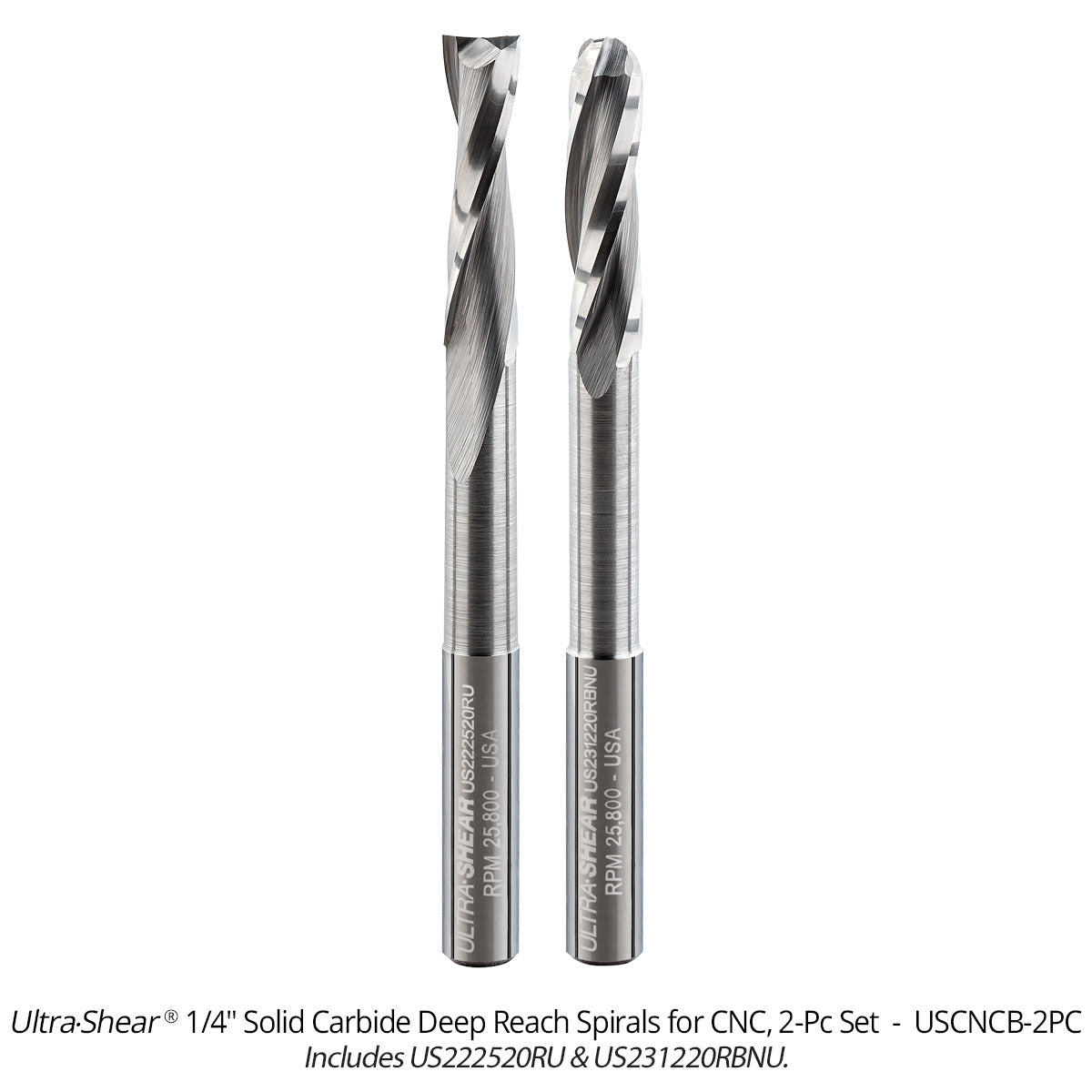

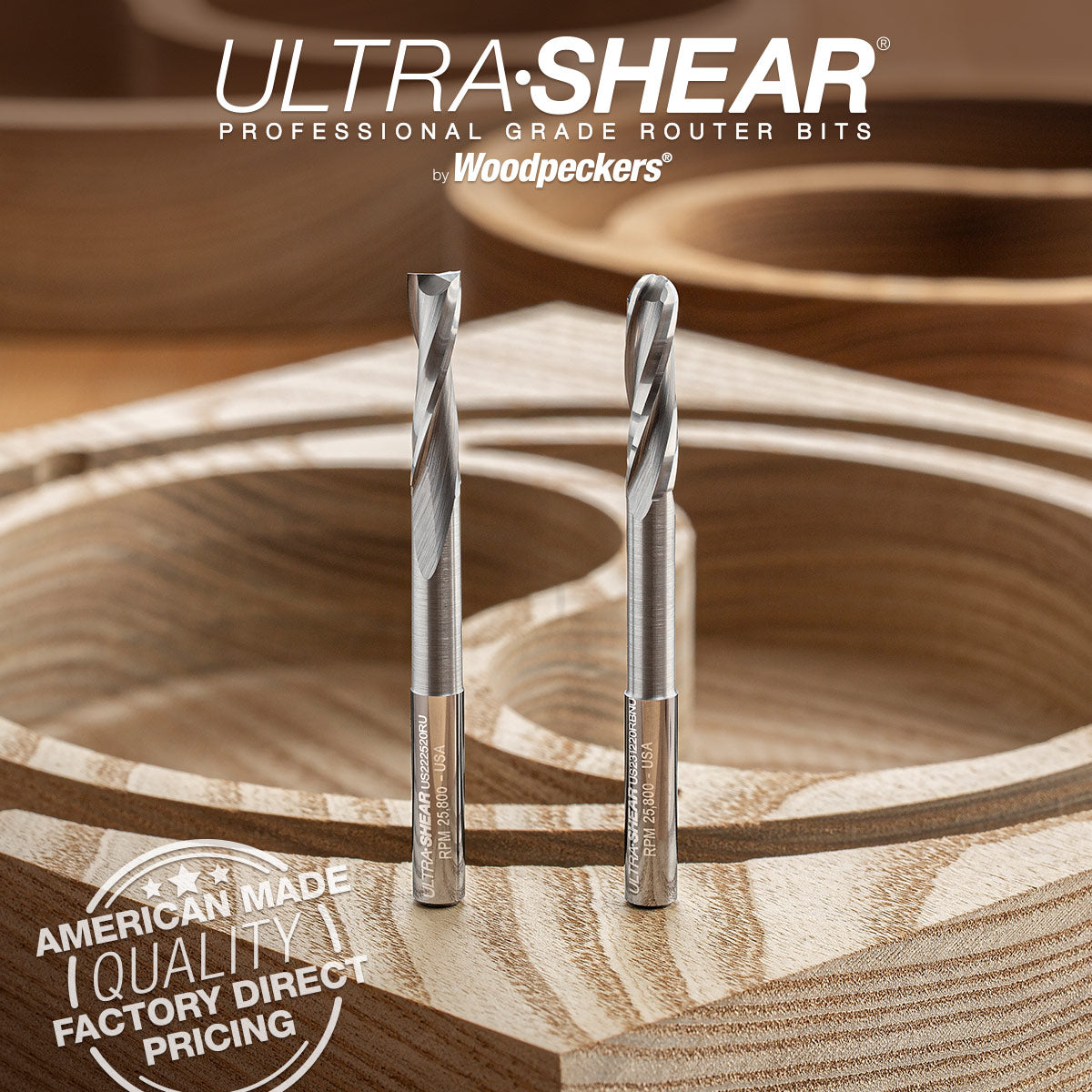

The line includes two 1/4" shank, 1/4" diameter options: a 2-flute square end up-cut bit and a 3-flute ball nose bit. Both have 1" cutting length, 2" reach, and 3" overall length. A 2-piece set is also available and includes both individual bits.

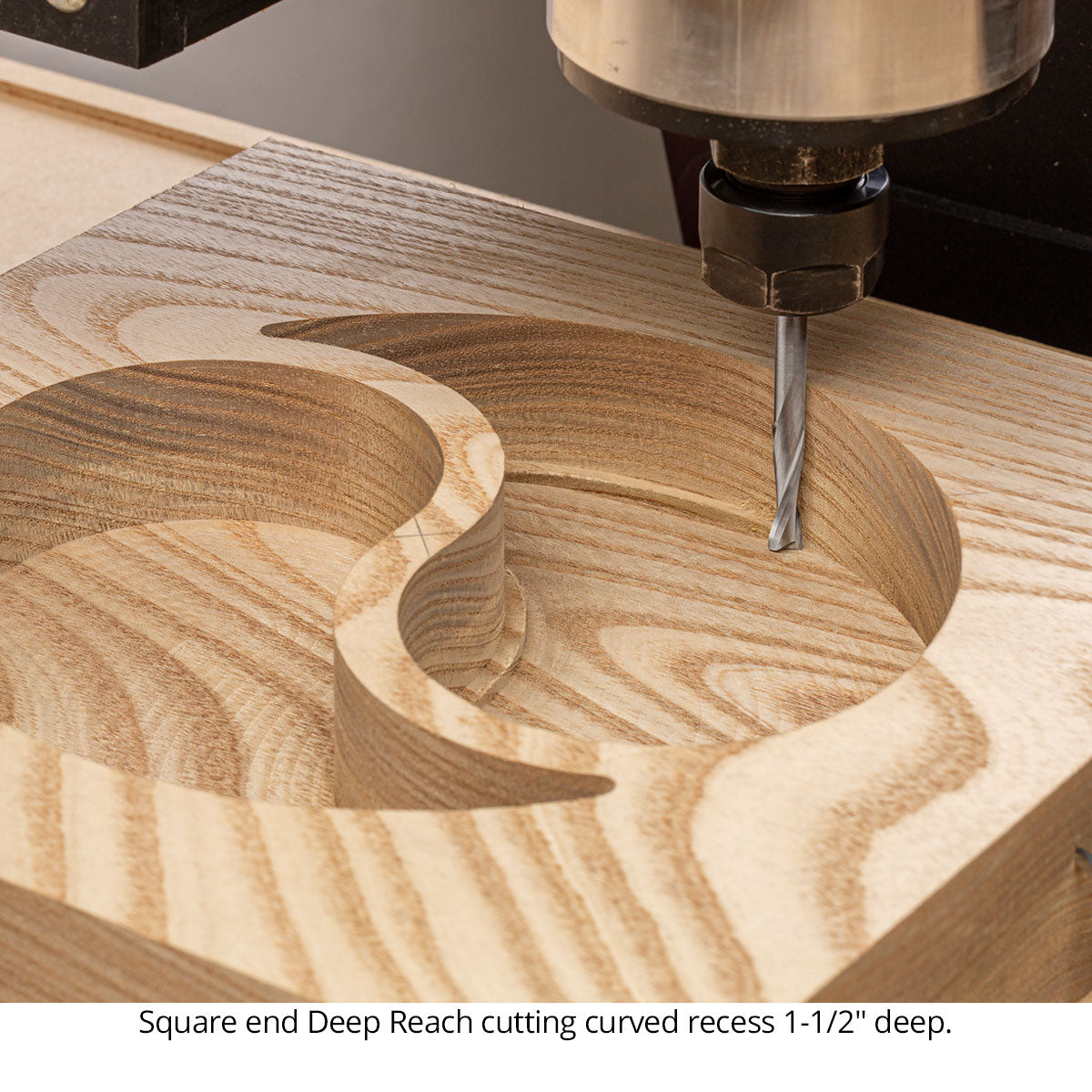

These CNC Router bits cut 2" deep pocket cuts in bowls, trays, and designs that need a 1/4" diameter cutter for tight corners.

Ultra-Shear uses state-of-the-art CNC grinding equipment, the highest quality carbide, ultra-fine grinding wheels and skilled Northeast Ohio machinists to produce American-made router bits at extremely competitive prices. The days of paying extra for middleman markups are over. Buy direct from the manufacturer and pocket the savings. We’re confident you won’t find American-made versions of the same design for less.
