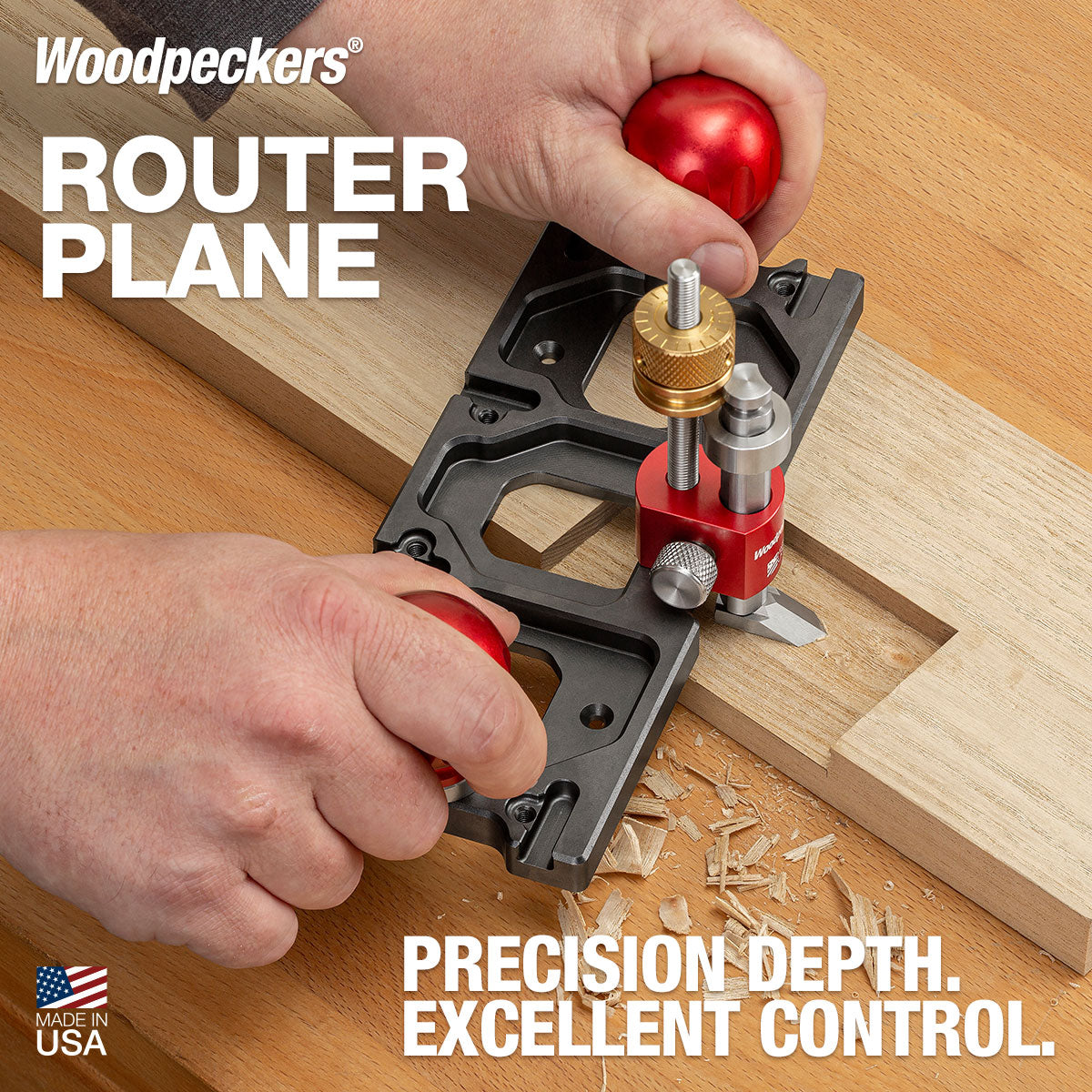

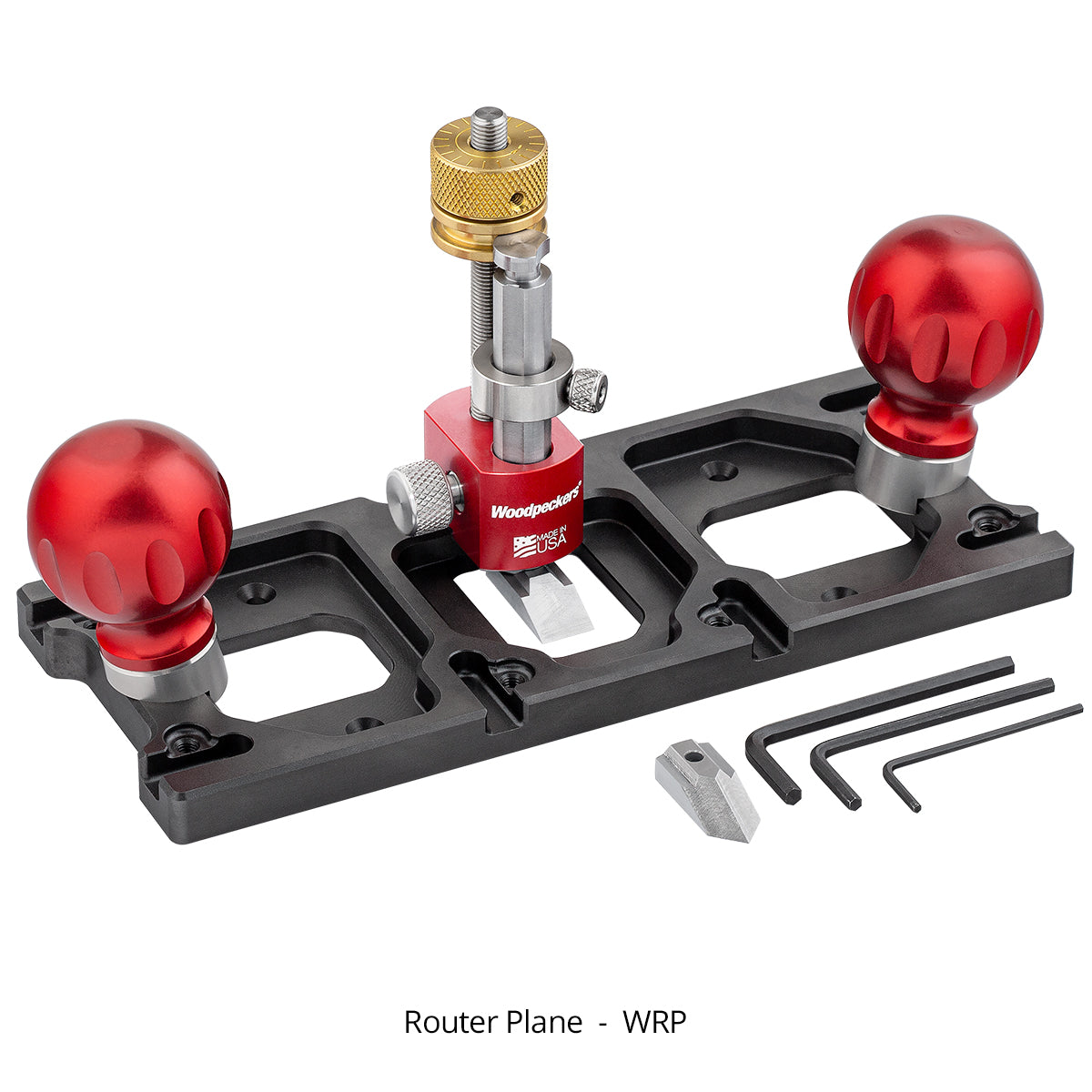

Router Plane

Precise Depth. Excellent Control.

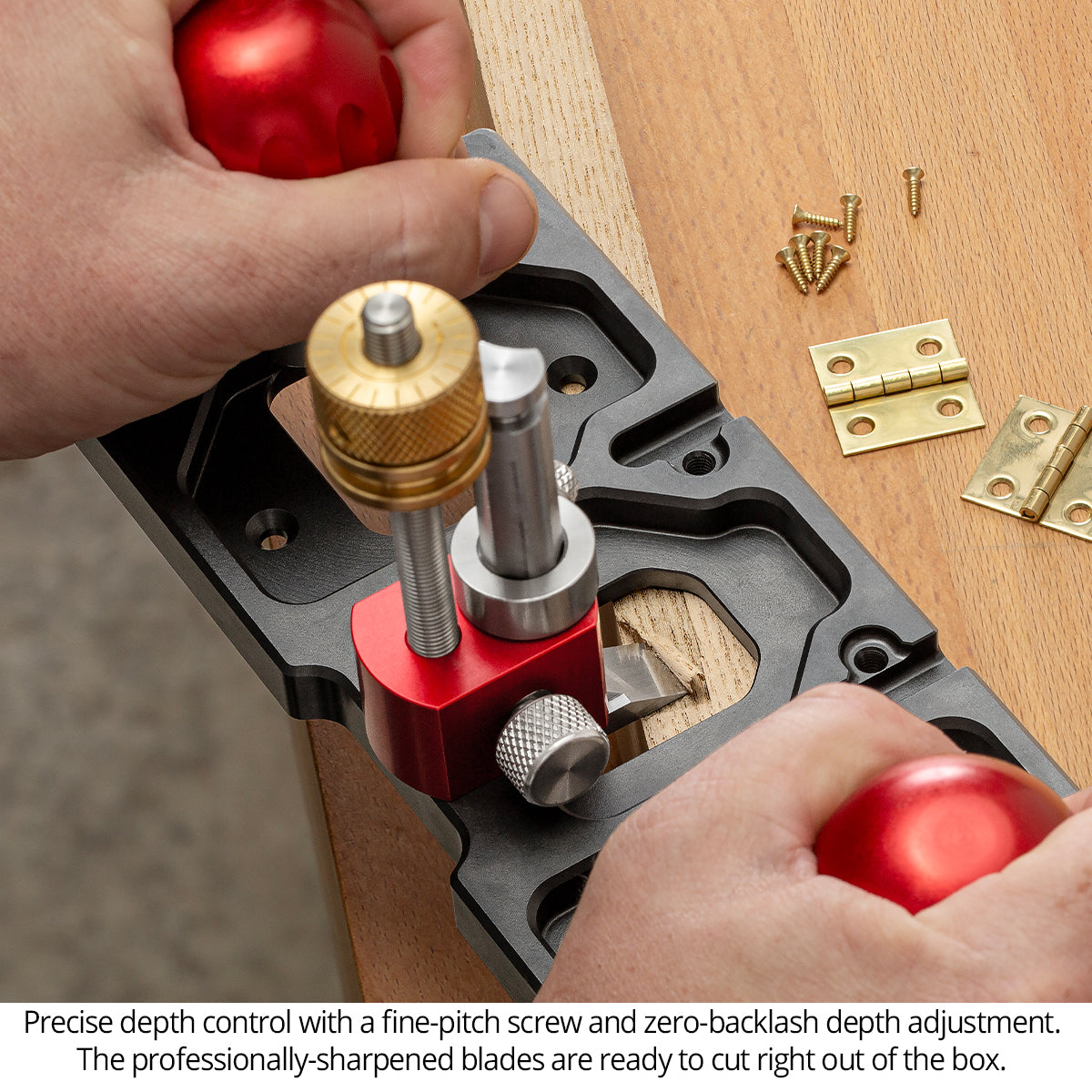

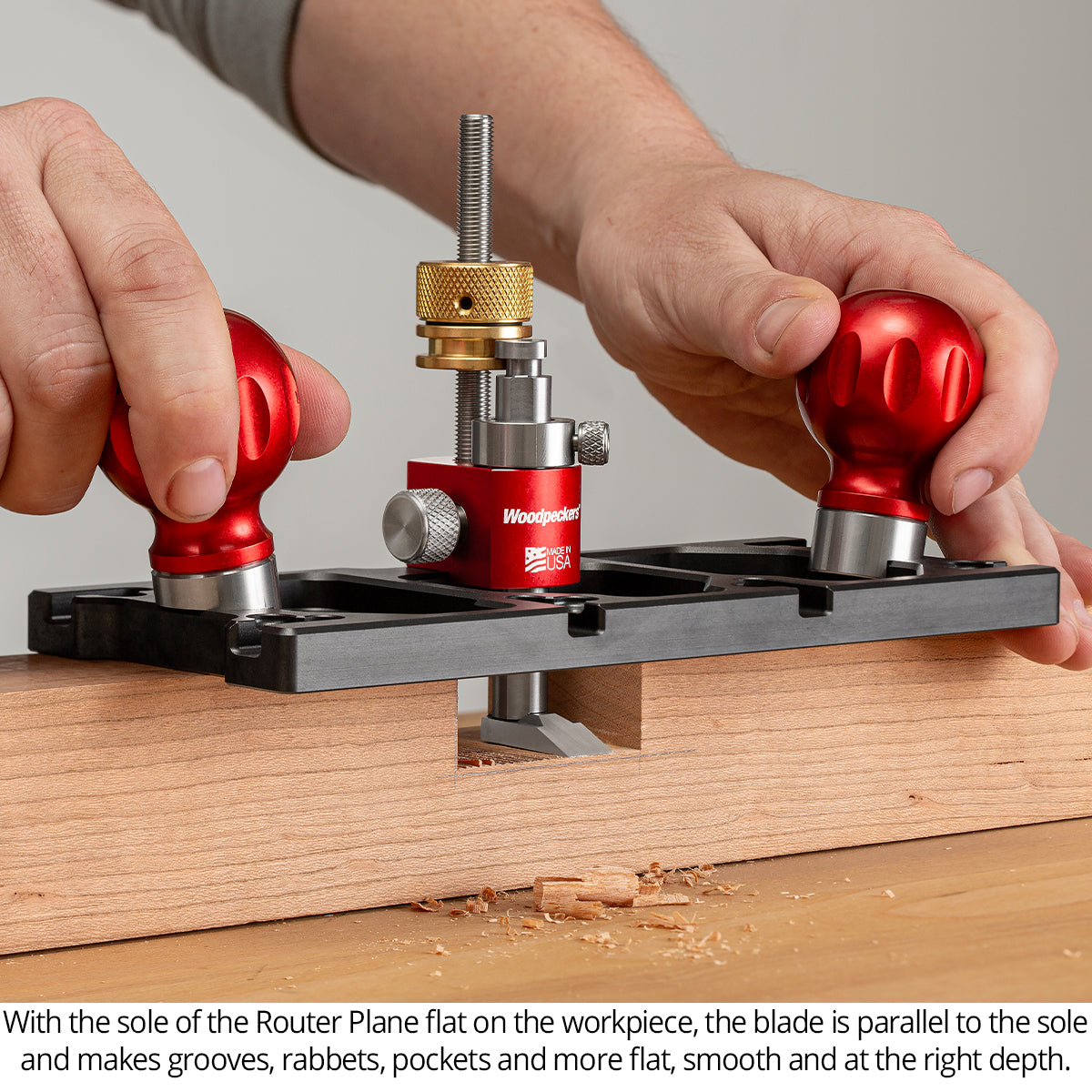

The sole of a router plane references off the face of your board. The blade is parallel to, but well below the sole.  While capable of creating a groove, its primary use has historically been adjustment, rather than creation. It's the right tool to clean up or extend the bottom of dadoes, grooves and rabbets. But most router planes have crude depth of cut adjustment. Getting the depth exactly where you want it can be frustrating. On Woodpeckers new Router Plane, the thumbwheel to adjust depth of cut has a feature that virtually eliminates backlash, getting you to your desired depth of cut quickly and with minimal frustration.

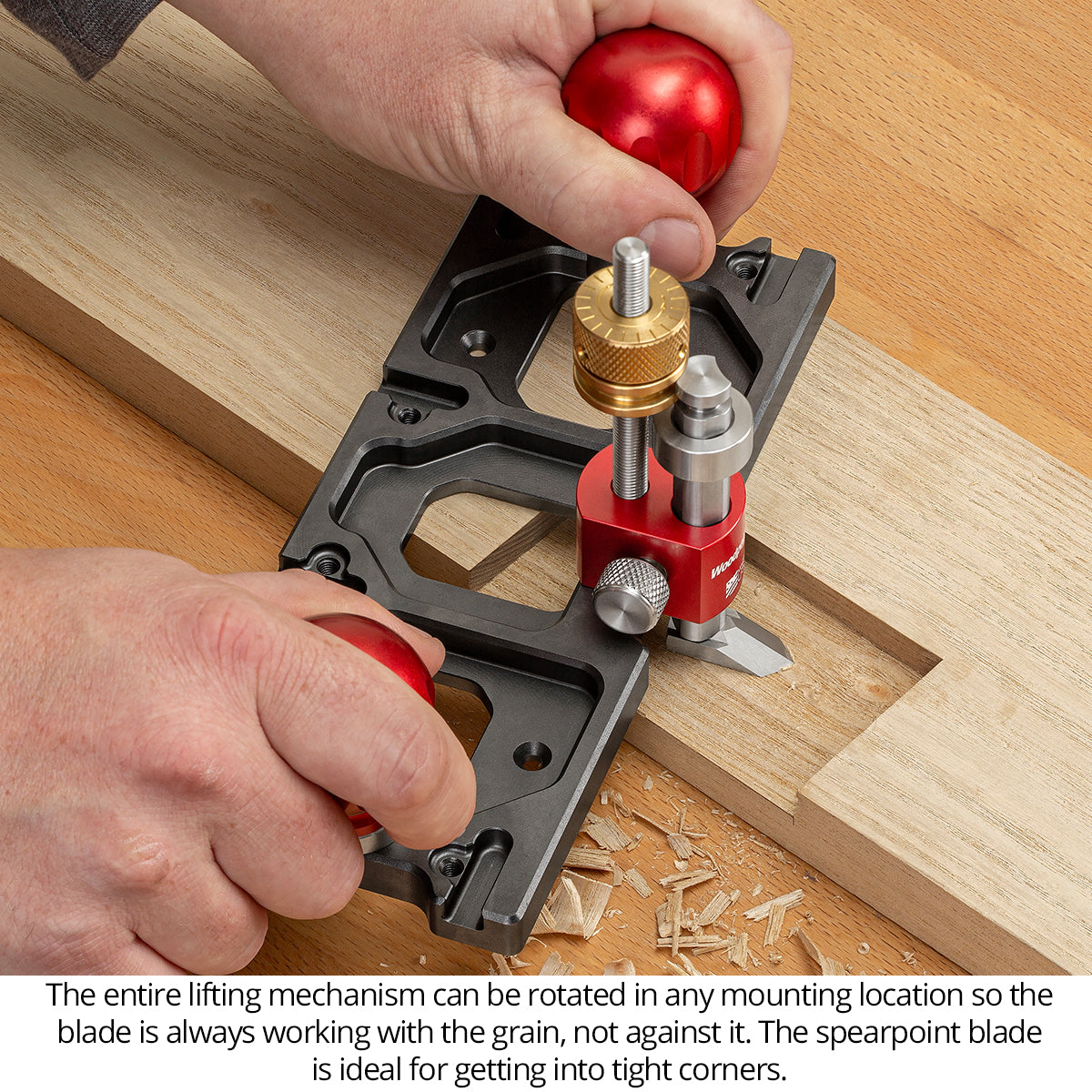

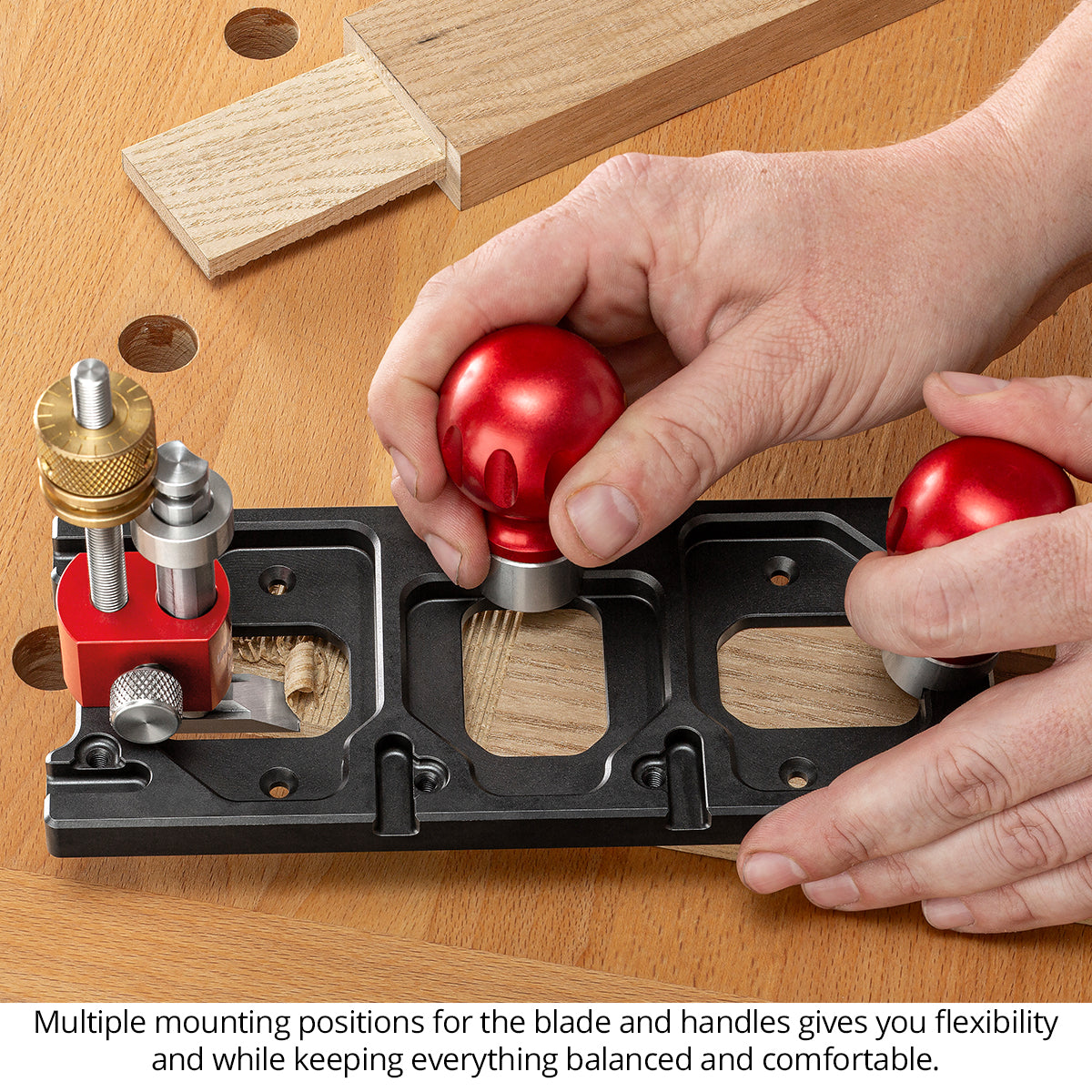

If you look at old router planes, you'll soon notice that in most cases, one was not enough. The sole always seemed to interfere somewhere, so Stanley and its competitors would make another variant that solved one problem at a time. Woodpeckers addressed the problem from the jump by starting with a large (3-1/2" x 8-1/2") sole, then building in three different positions for the blade mechanism. At each position, the blade mechanism can be mounted facing in or facing out. And at cutting depth, the blade can be rotated in the mechanism in 4 different directions. You always have a way to keep the sole flat on your work, get your blade into tight corners and cut with the blade working with the grain instead of against it. The handles mount in the remaining two positions, keeping everything balanced and comfortable.

We machine the base of the Router Plane from a billet of ductile iron. We then treat it with a black nitride coating that reduces friction and virtually eliminates corrosion. The blade mechanism is machined to very tight tolerance, which you'll notice the first time you float the blade up and down. We milled countersunk holes in the base so you can attach shop-built fences, but if you prefer a ready-made approach, we offer an optional fence that can attach in three different positions (opposite the blade mechanism). Every feature screams quality and precision, right down to the double-wedge lock that secures the blade without ever marring the shaft. Your Router Plane is supplied with both square and spearpoint blades. Unlike most hand tools you buy, the back of both blades has been lapped perfectly flat and polished to a mirror finish. The back needs no work whatsoever. The bevel has been carefully ground to the correct angle and requires only light honing before use. You'll use the square blade most of the time. Switch to the spearpoint blade to get into hard-to-reach corners.

 Like all Woodpeckers products, the Router Plane is precisely machined and carefully inspected in our Strongsville, Ohio, facility (just south of Cleveland).
