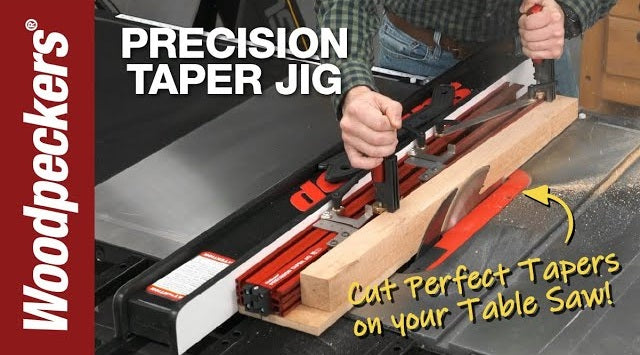

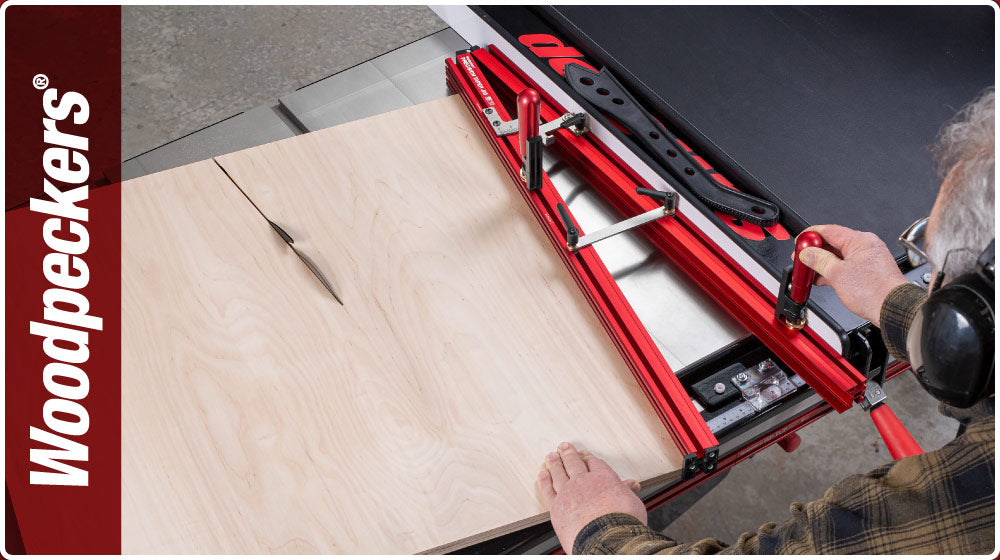

Load video: Woodpeckers Precision Taper Jig Video

Save $30.00

Precision Taper Jig

SKU: PTJ-32

$279.99 ~~$309.99~~

Shipping calculated at checkout.

Reserve Yours Today! Estimated Ship Date: July 24, 2026

Woodpeckers Precision Taper Jig takes a 120-year-old tool design and brings it into the 21st Century with modern materials and cutting-edge manufacturing techniques. This updated version of the traditional taper jig offers instantly repeatable quarter-degree angle setting, material clamping, zero-clearance material support and length capacity that can extend up to 48".

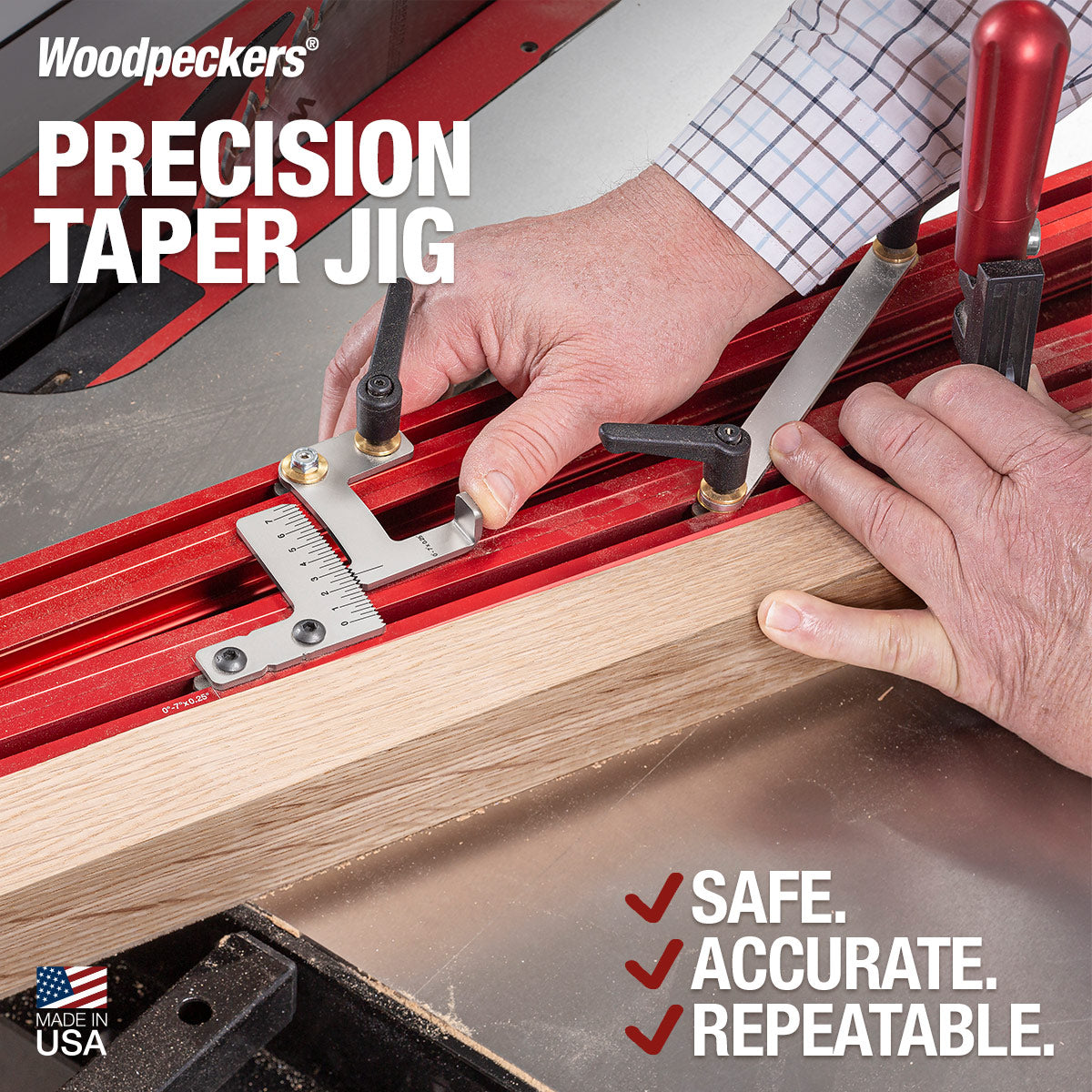

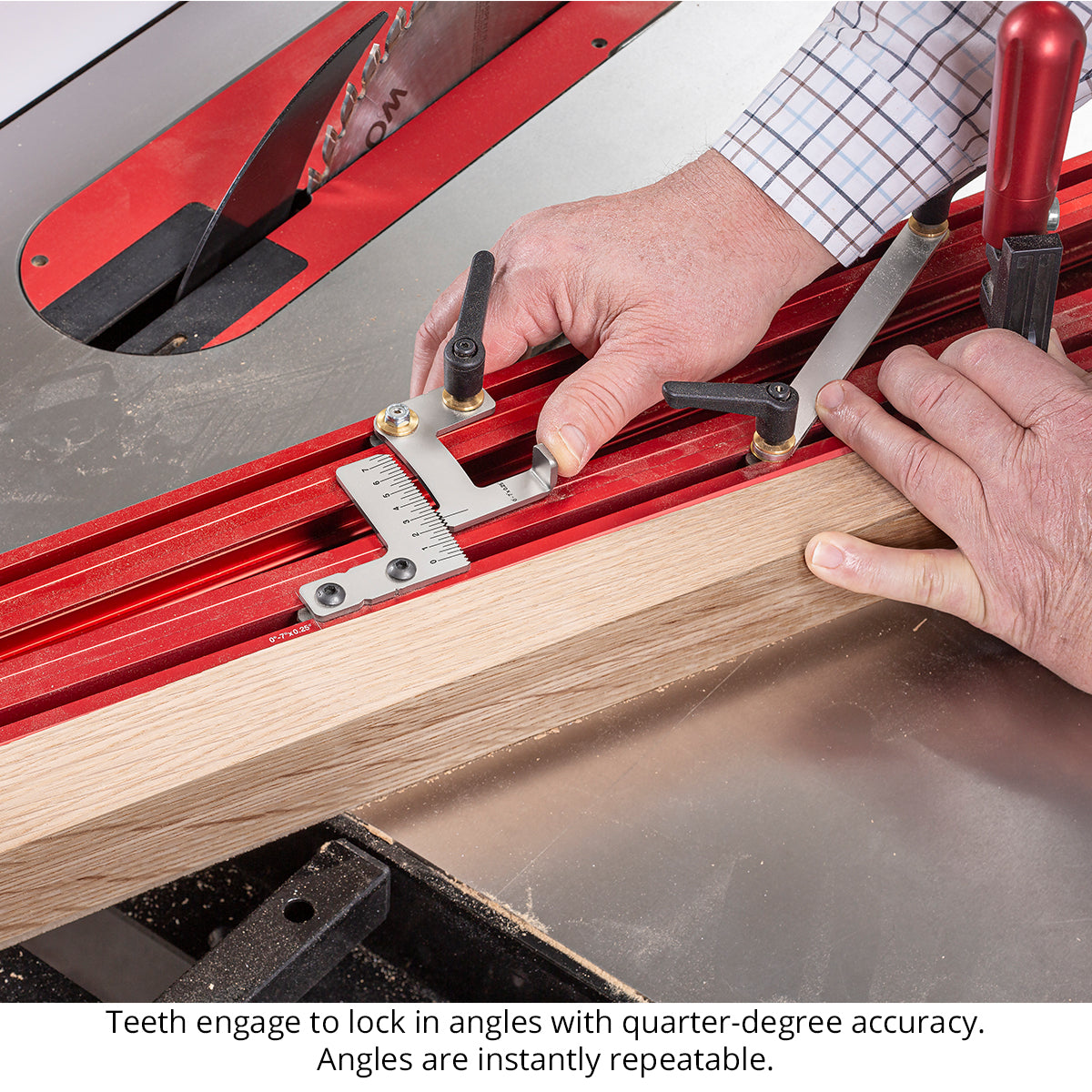

Setting the angle of the Precision Taper Jig couldn’t be easier. A scale with interlocking teeth sets the angle precisely in quarter-degree increments from 0° to 7°. For larger angles, you can switch to the other scale which goes from 0° to 15° in half-degree increments. Should you need to change the angle, the interlocking teeth assure perfect realignment.

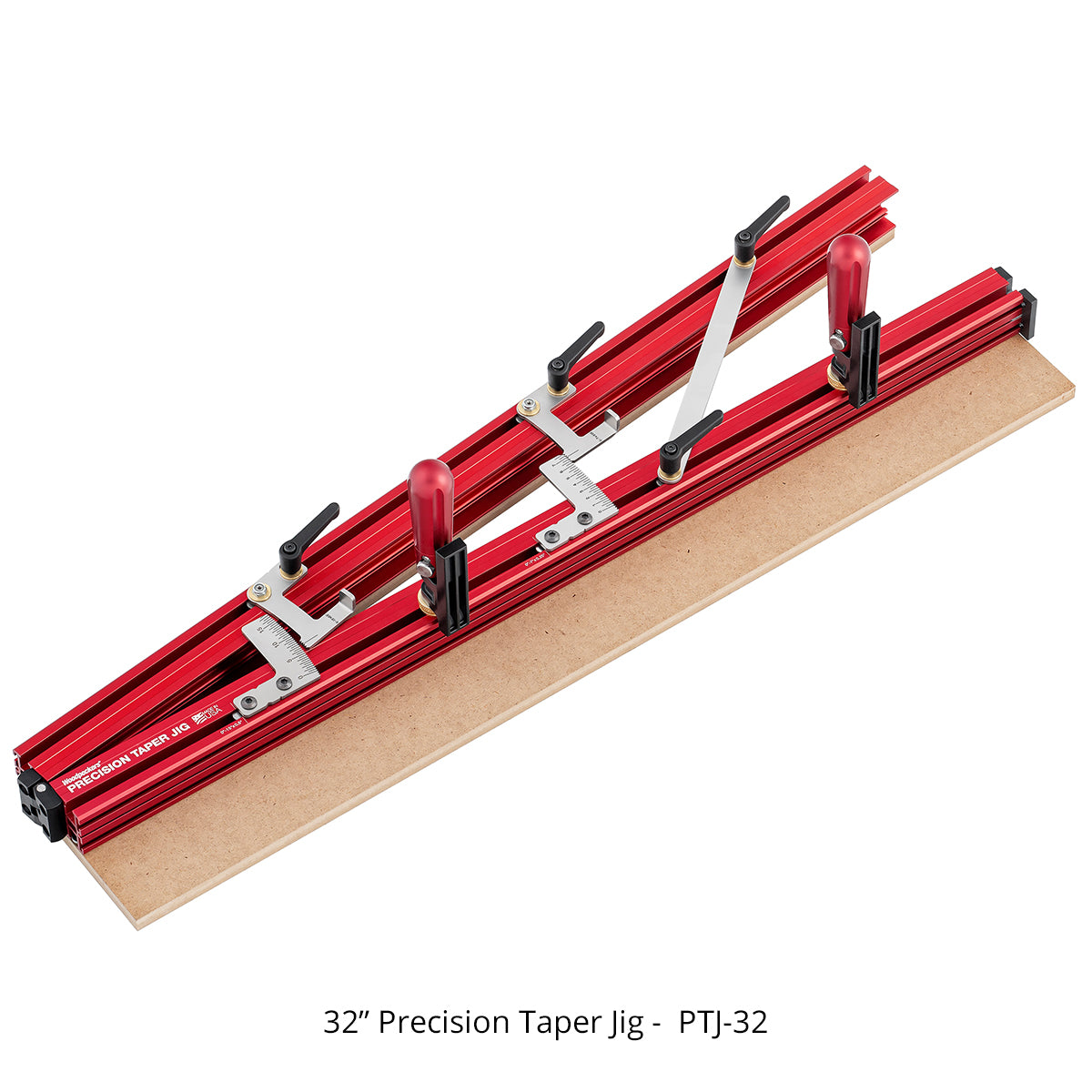

32 Inch Model Includes: (2) 32" Extrusion Tracks, MDF Sleds, (2) Clamping Handles, (1) 0°-15° x 0.5° Scale, (1) 0°-7° x 0.25° Scale and (1) Short Span Clamp.

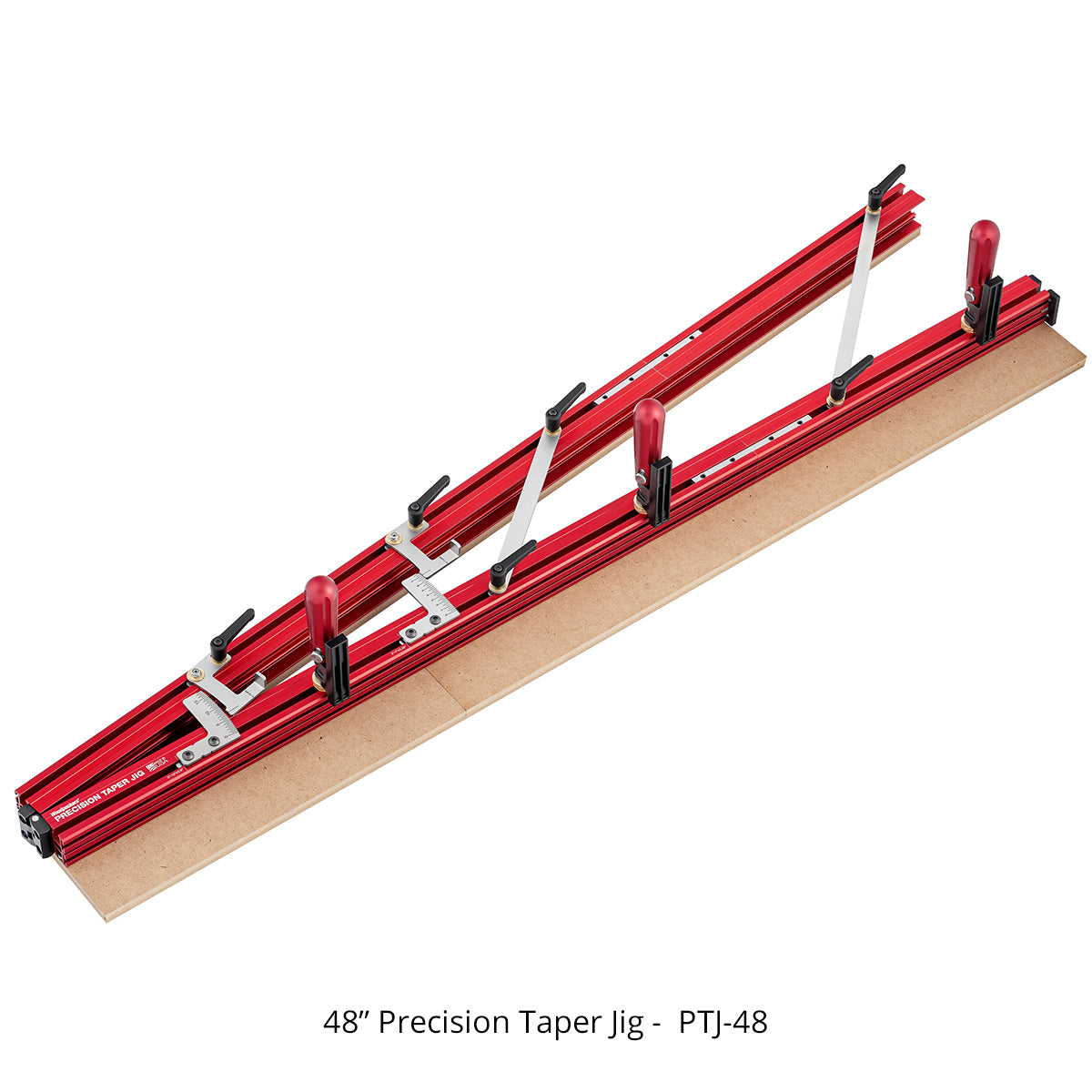

48 Inch Model Includes: (2) 32" Extrusion Tracks, (2) 16" Extrusion Tracks, MDF Sleds, (3) Clamping Handles, (1) 0°-15° x 0.5° Scale, (1) 0°-7° x 0.25° Scale, (1) Short Span Clamp, (1) Long Span Clamp and Hardware.

Options: 32 Inch

32 Inch 48 Inch

TOP 20 BEST SELLER

NEW LOWER PRICE

FREE Shipping On This Item

Buy Now, Get FREE Shipping on Entire Order

Pickup Today at

Description

Interlocking Teeth Ensure Perfect Angle Repeatability

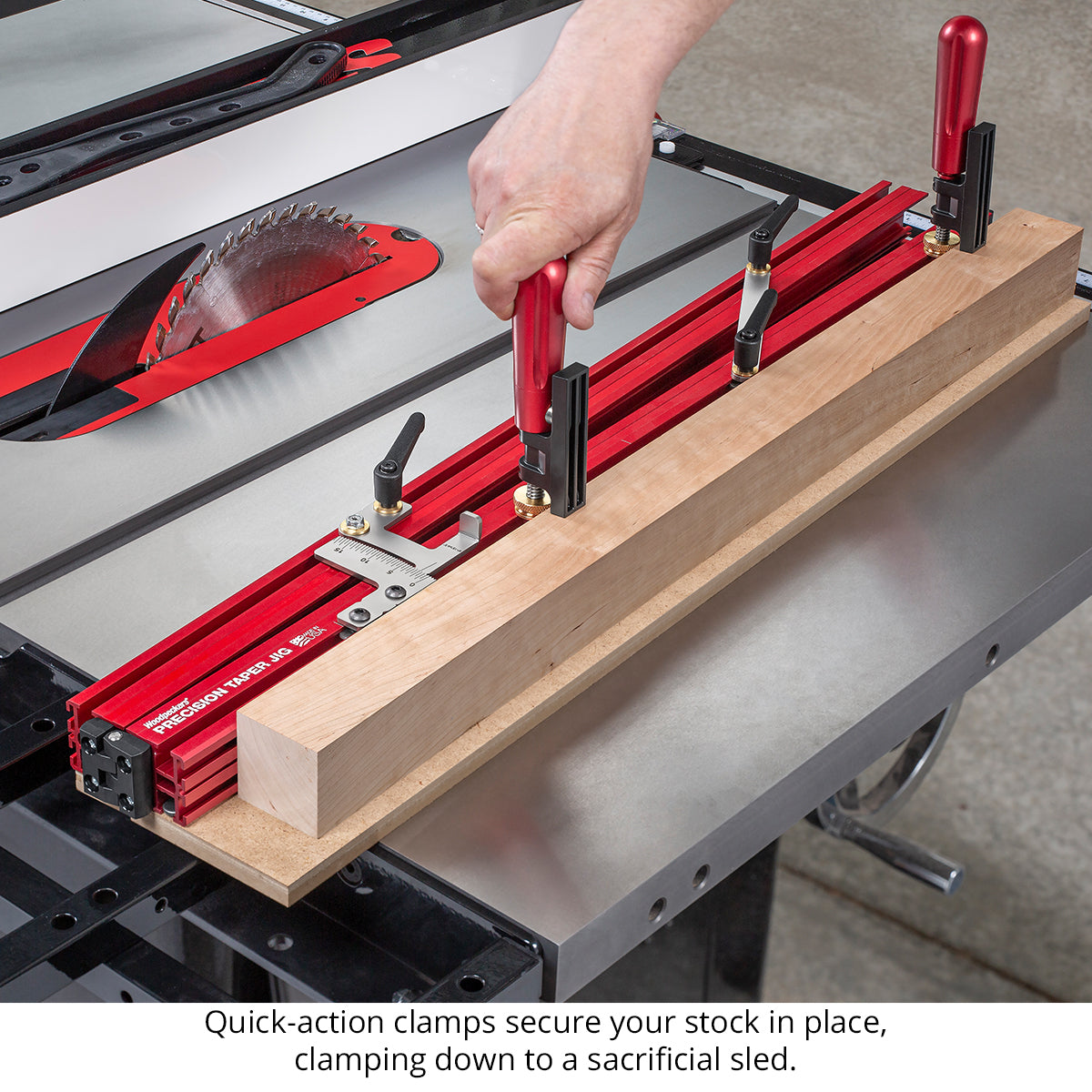

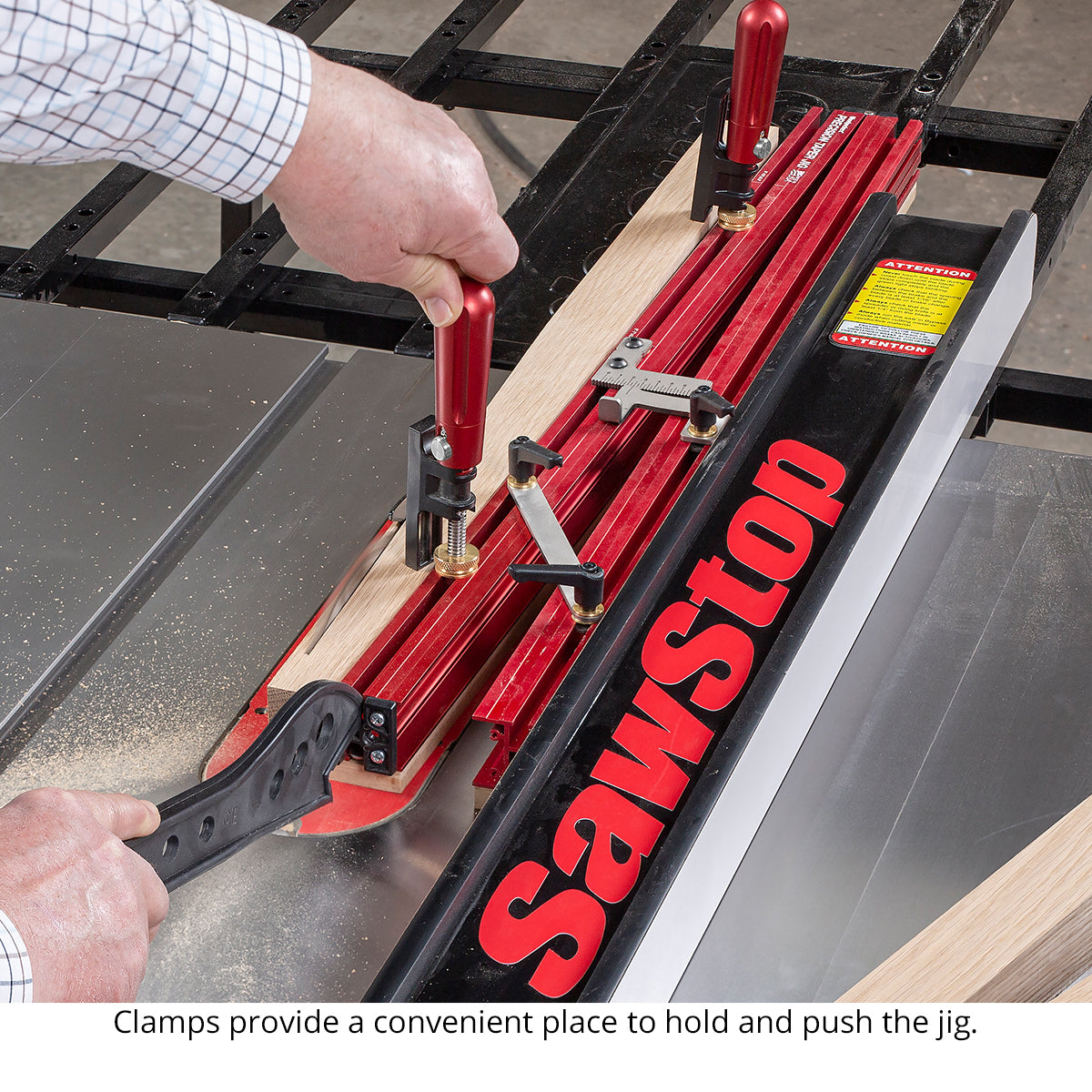

We've put thought into safe and efficient operation, too. There’s a sacrificial MDF sled on the bottom and quick-release clamps riding in the extrusion tracks. With quick-release adjustment and a clamping range from 3" down to just 17/32", the clamps are simple to use for all manner of tapered projects. The clamping handles serve double-duty as convenient gripping points for pushing the jig. And, the MDF sled eliminates any worry about bottom-side tear-out.

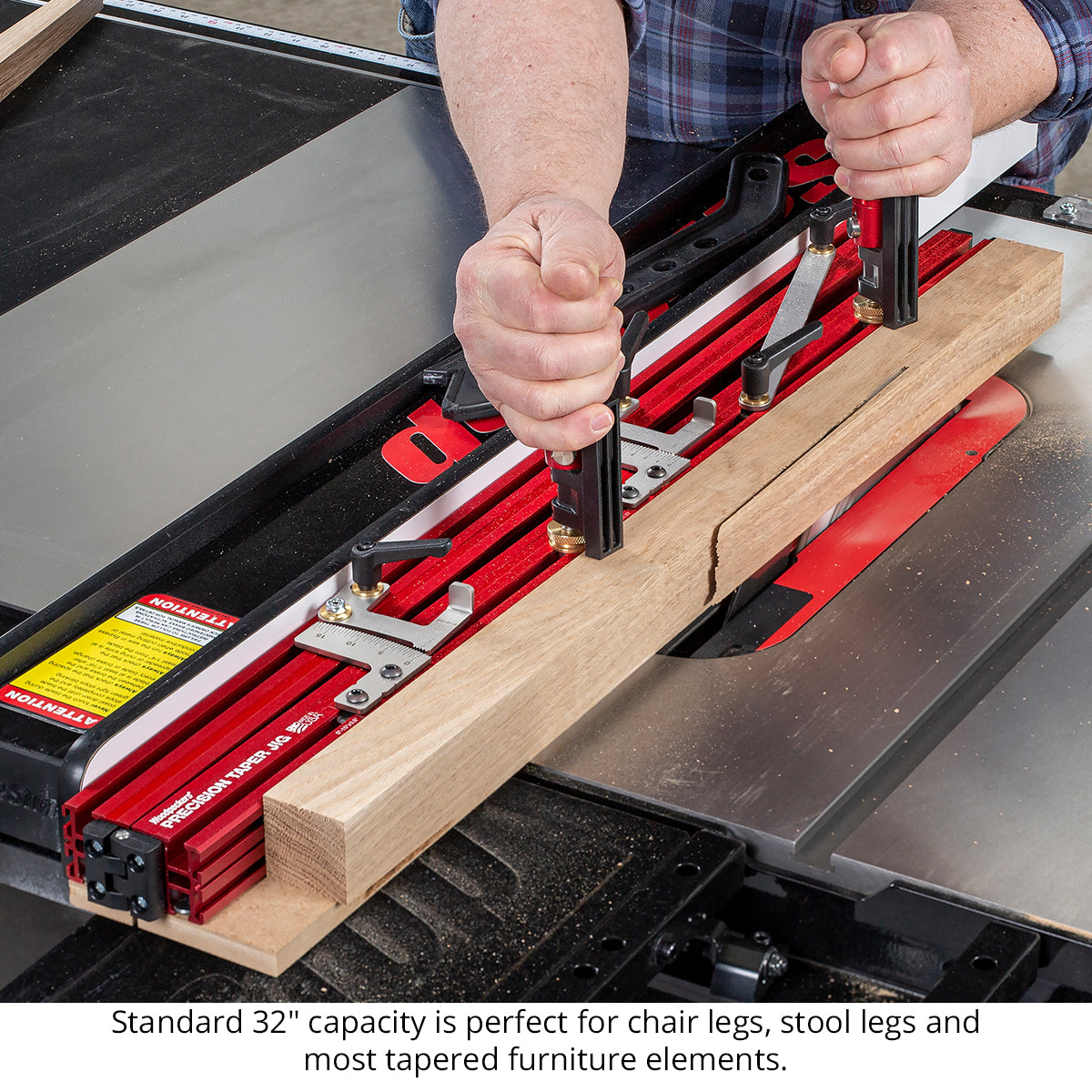

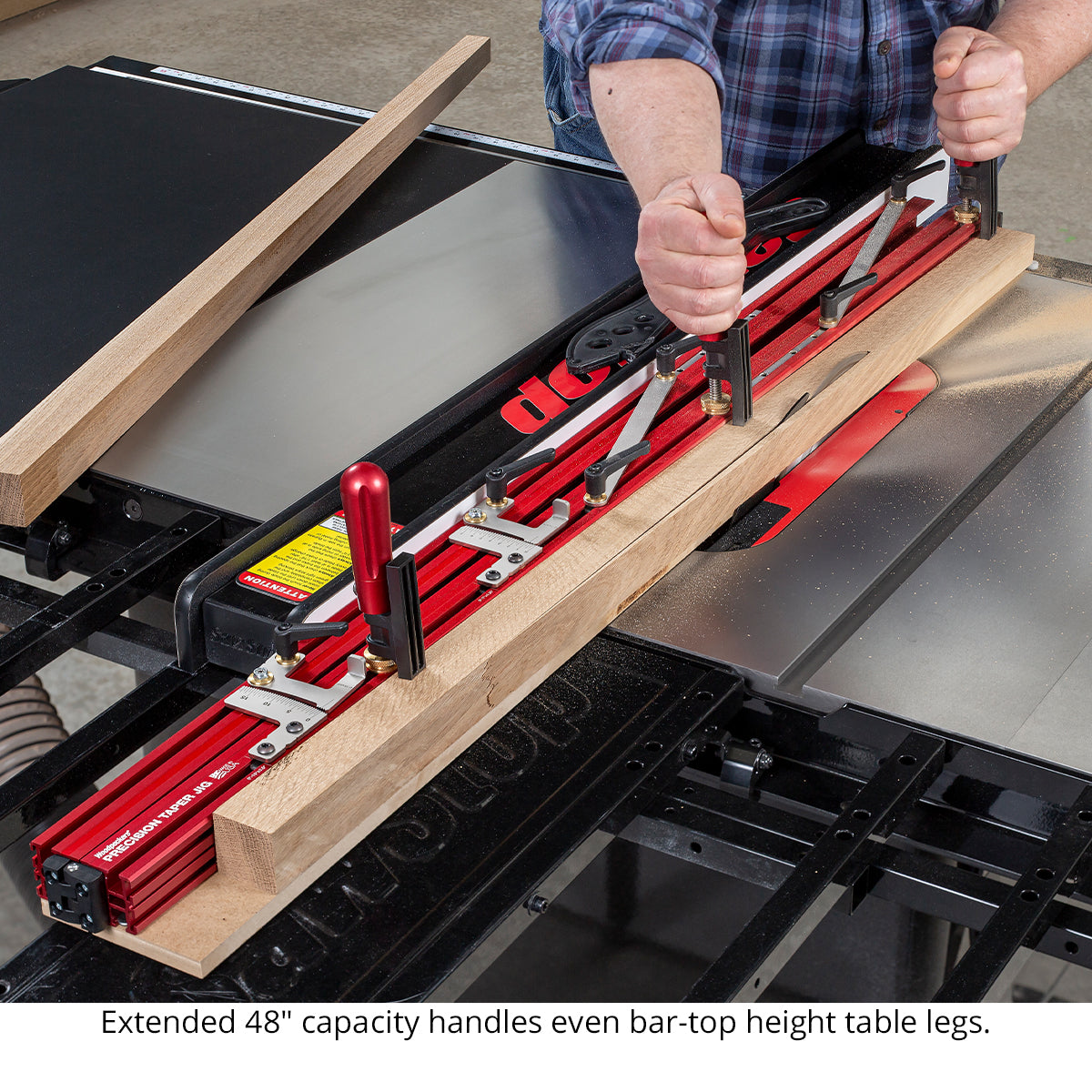

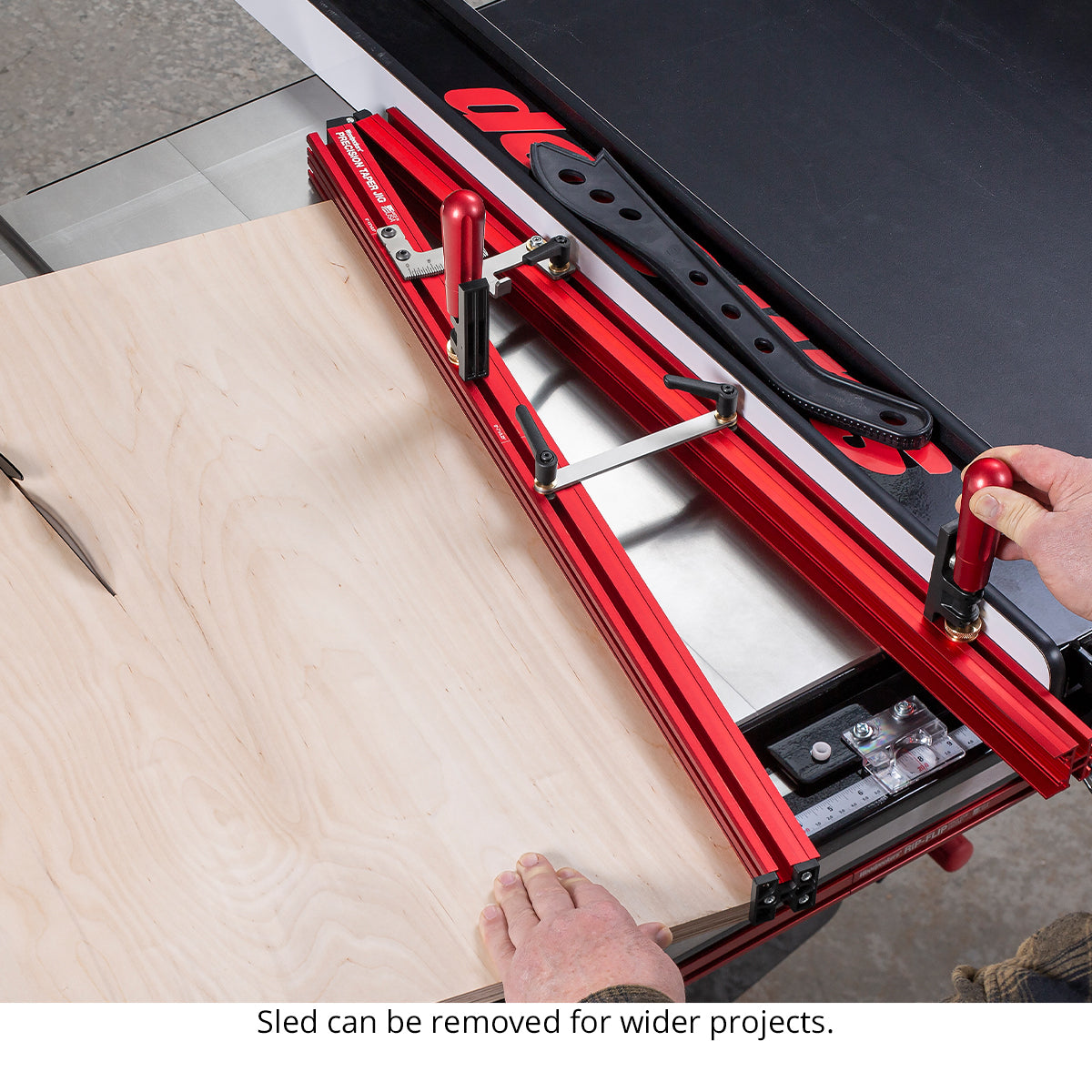

For wider stock, you have two choices. You can make a sacrificial sled the same size as your workpiece or you can remove the sled and use the Precision Taper Jig riding straight on the table like all the rest. It’s your choice. If you need more than the 32" capacity of the standard Precision Taper Jig, you can expand it to 48".

There’s never been a taper jig with all these features; capacity that can extend from 32" to 48" in a matter of minutes, quarter-degree angle resolution that’s instantly repeatable, material clamping and zero-clearance support. This is a handsome, well-built tool that you’ll be proud to have in your shop. It’s designed and built to serve generations of woodworkers to come.

Like all Woodpeckers products, the Precision Taper Jig is precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland).

Protected by US PATENT NO. D985,638, D983,636, 12,090,611 & 11,820,039.

Manuals

Woodpeckers Precision Taper Jig Instructions (Accessible)

Specifications / FAQs

PROP 65

WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Woodpeckers limited warranty

Materials and workmanship are guaranteed for the life of your tool. If you are dissatisfied for any reason, return the tool within 30 days of purchase for your money back.
