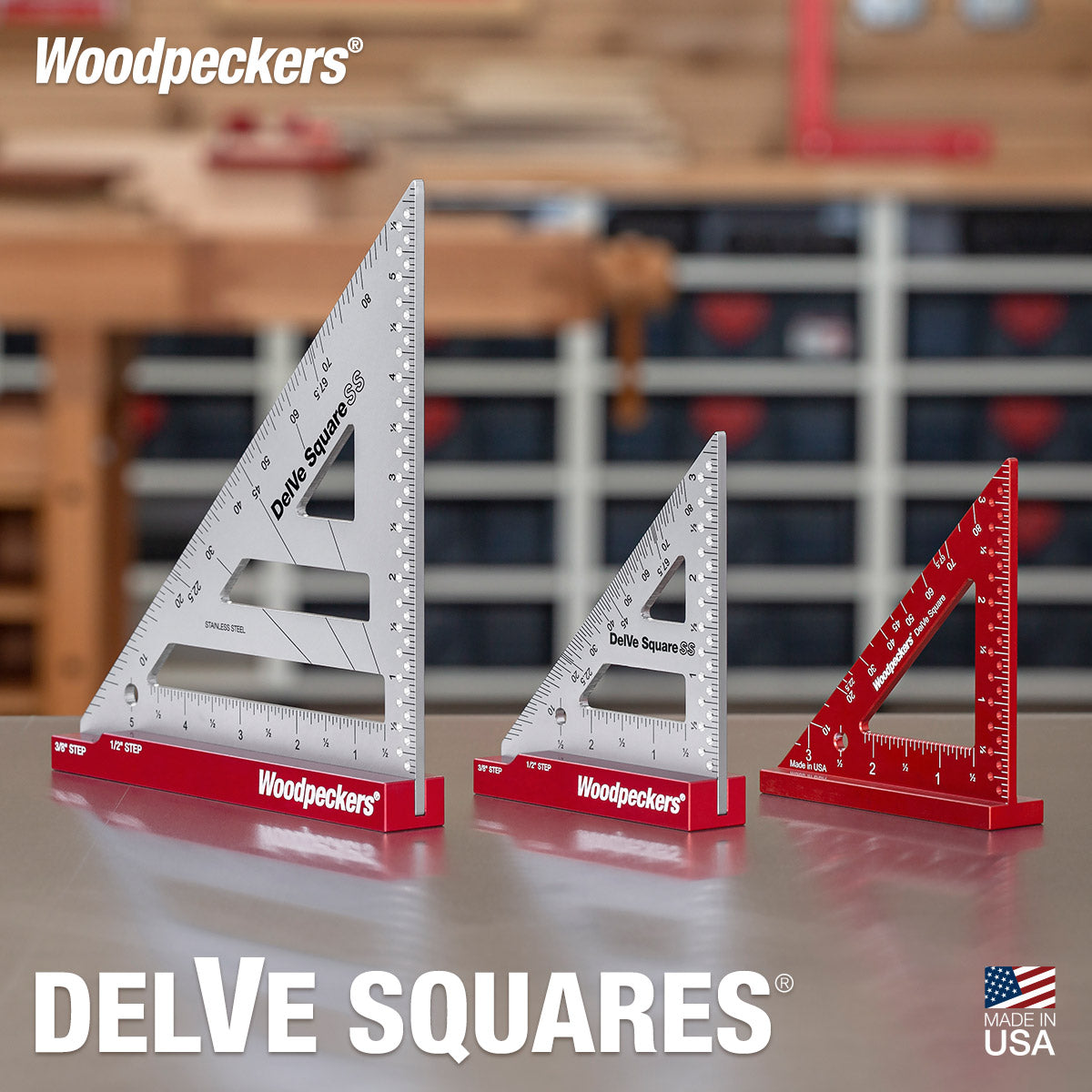

DelVe Square

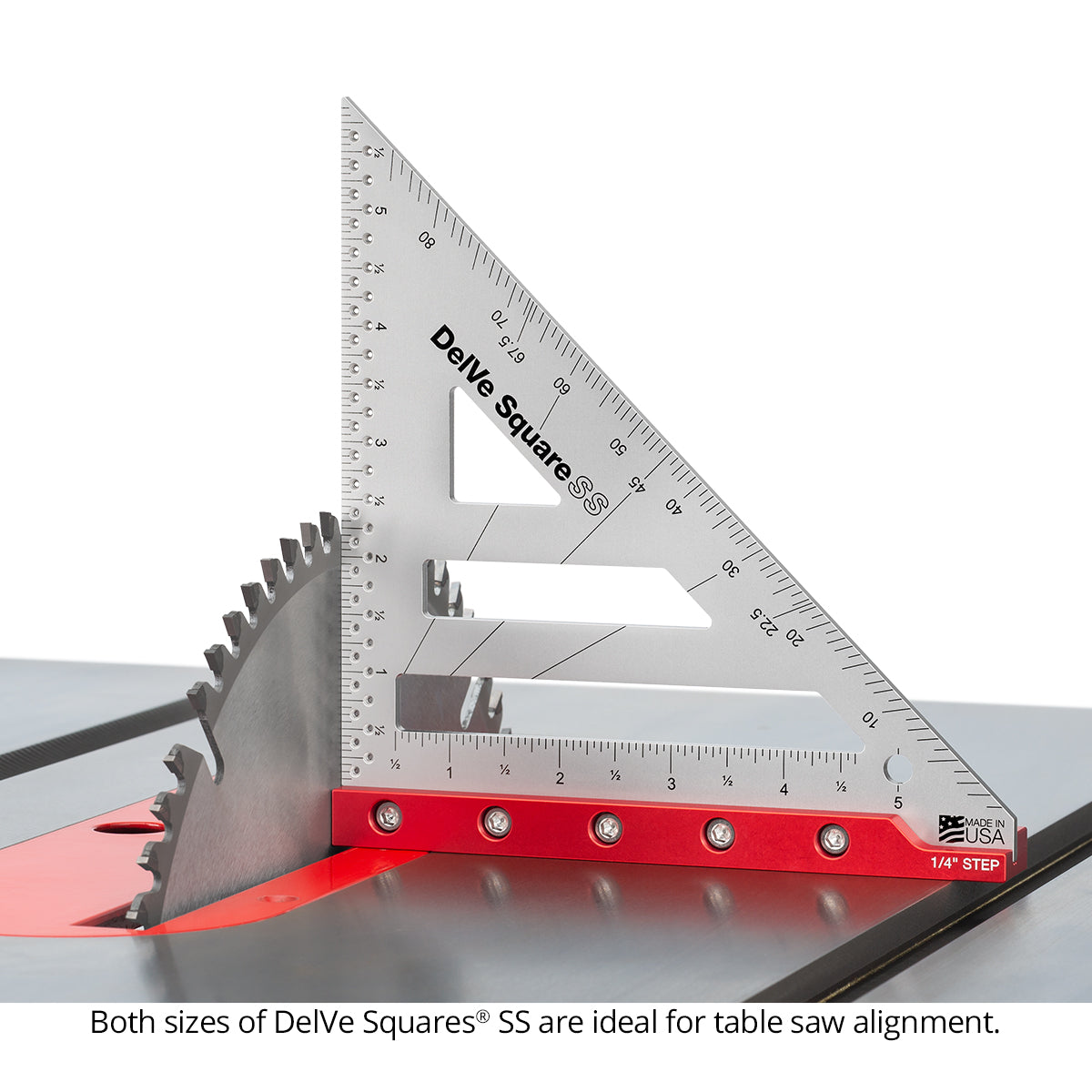

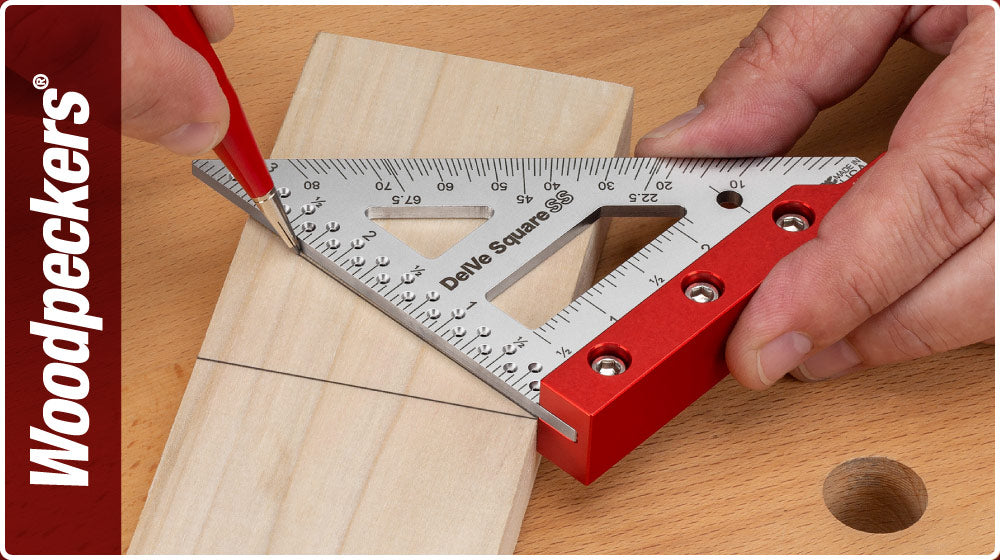

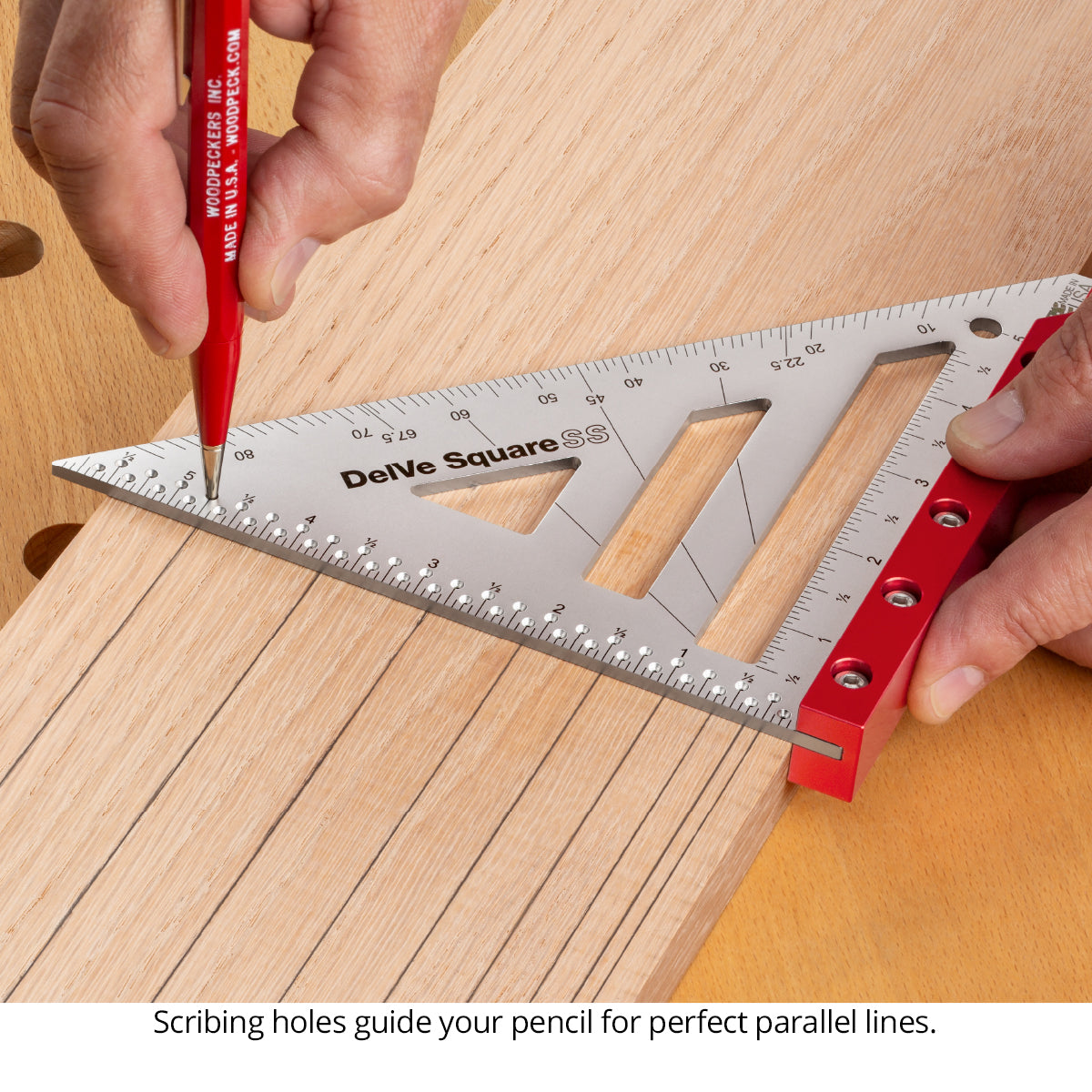

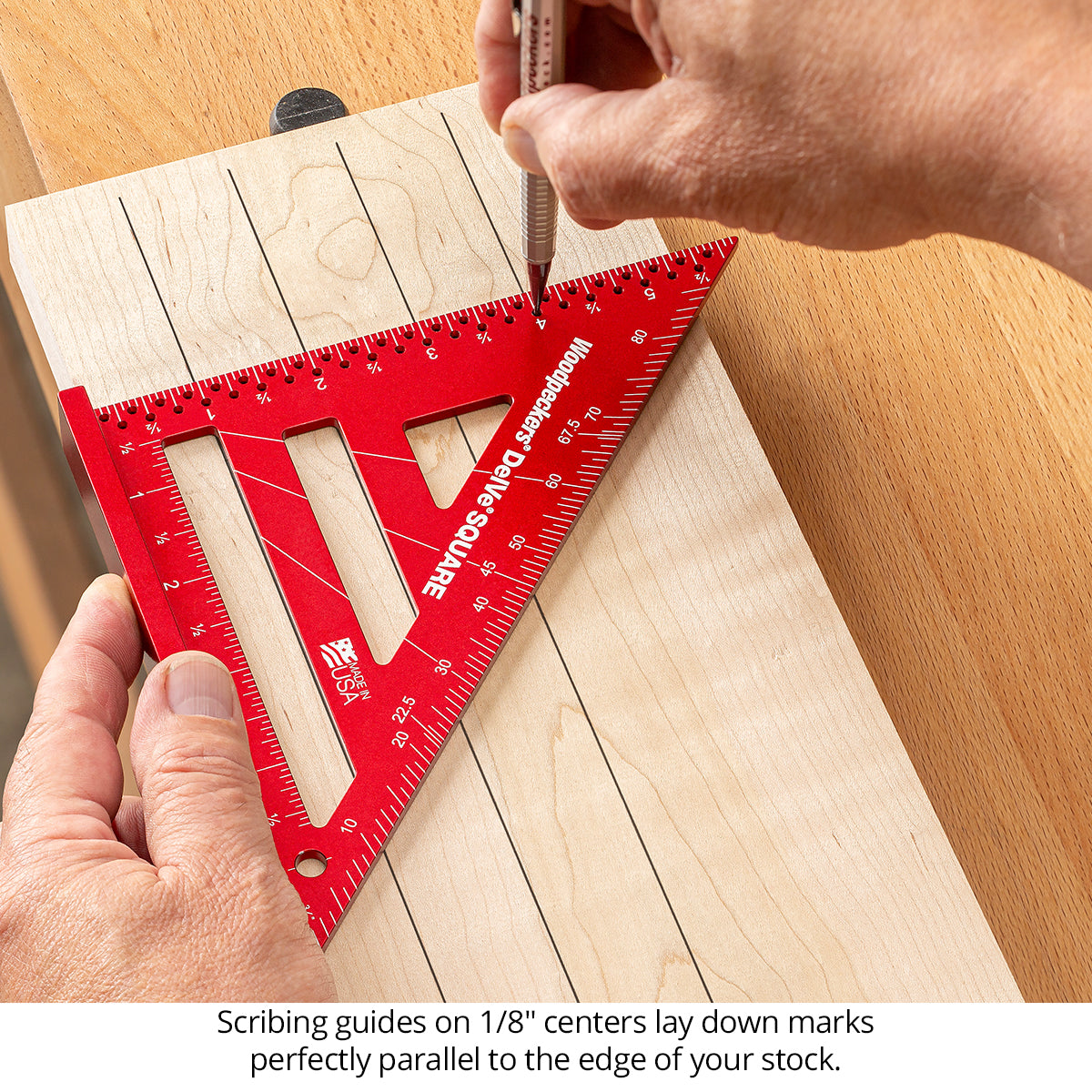

Its versatility makes the DelVe a trusted companion for layout, assembly and installation. Scales on the blade are laser-engraved to an accuracy of ± 0.004" total accumulated error. Precisely machined scribing guides on 1/8" centers enable you to strike lines parallel to the edge of your stock quickly and accurately. And the squareness of the DelVe is held to Woodpeckers stringent standard of ±.0085°.

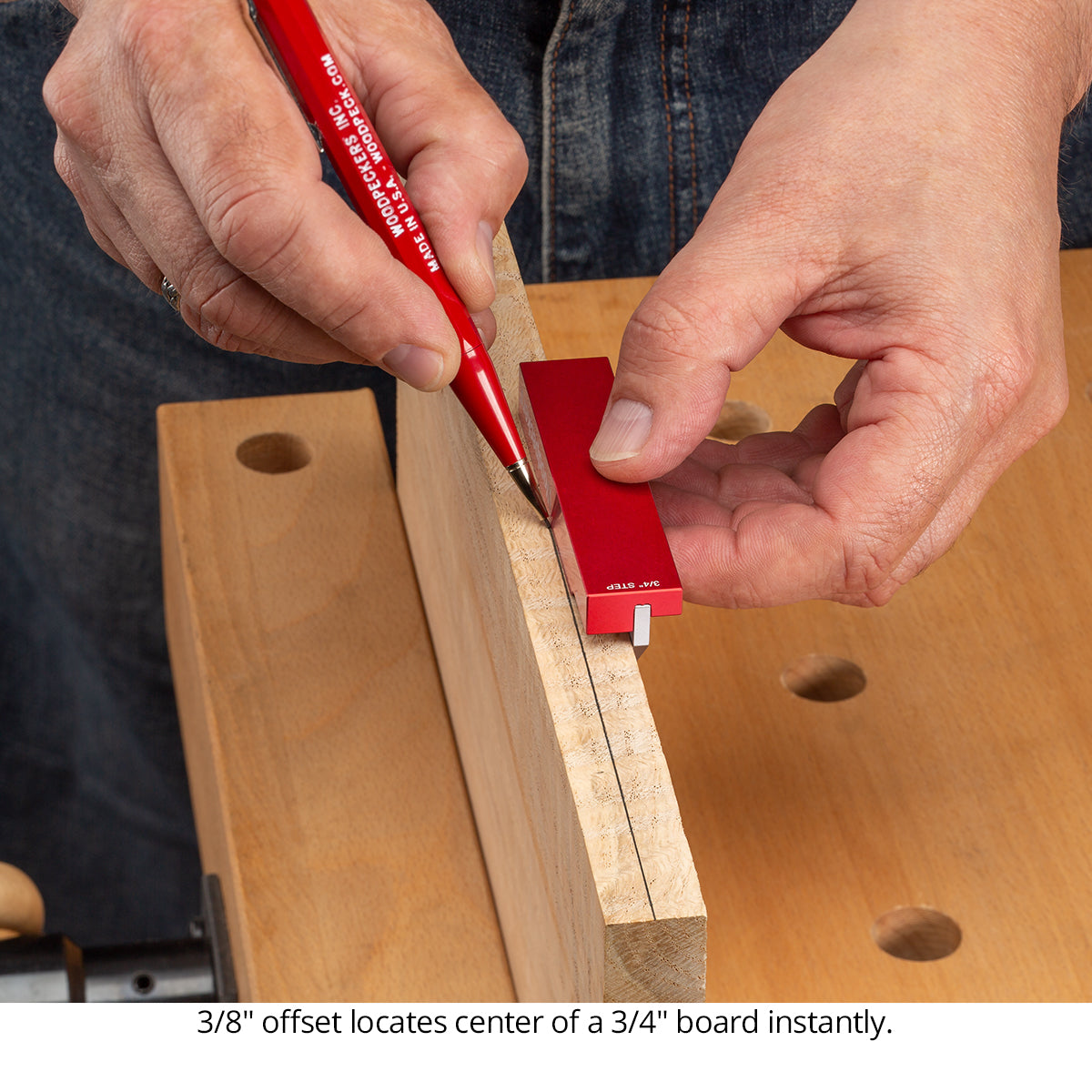

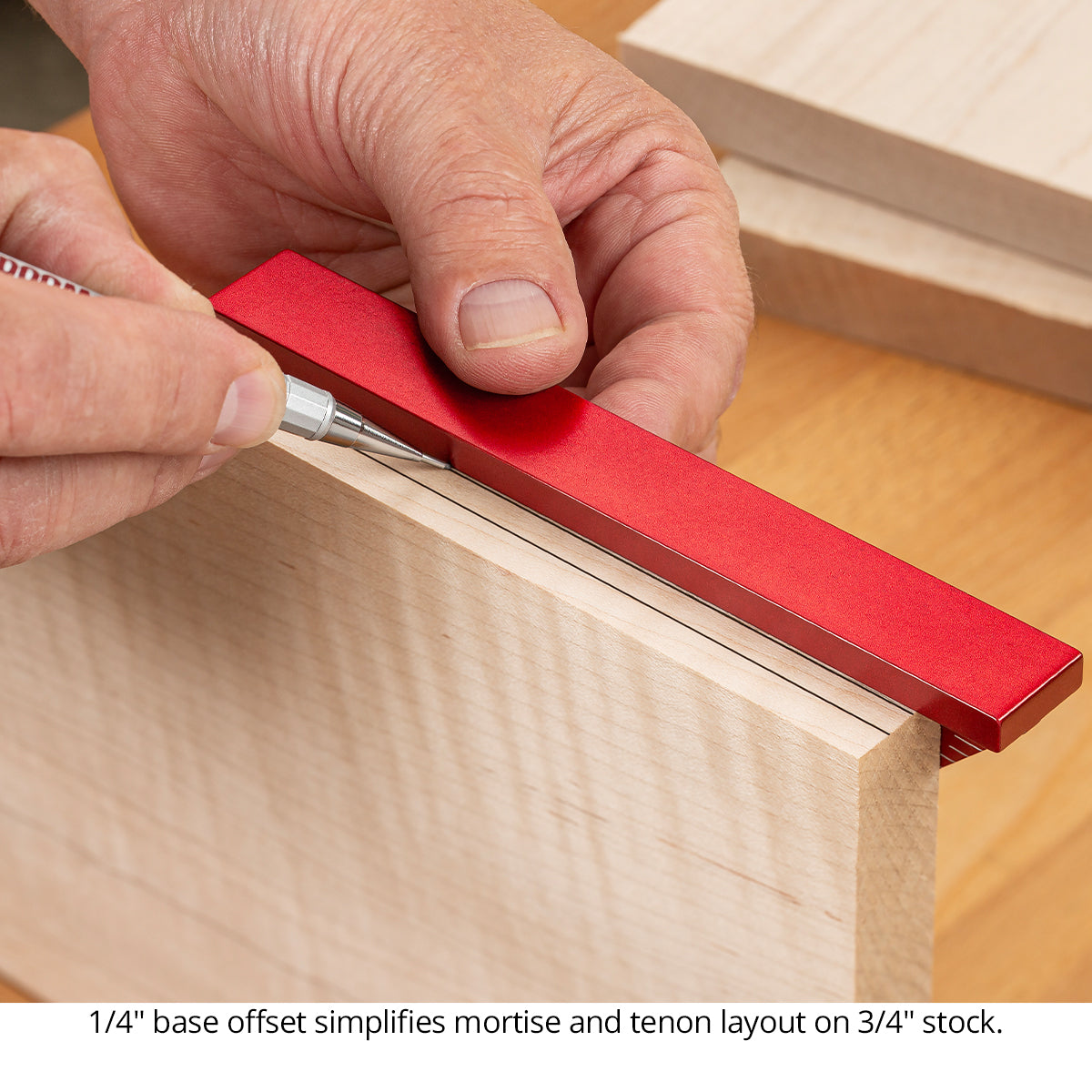

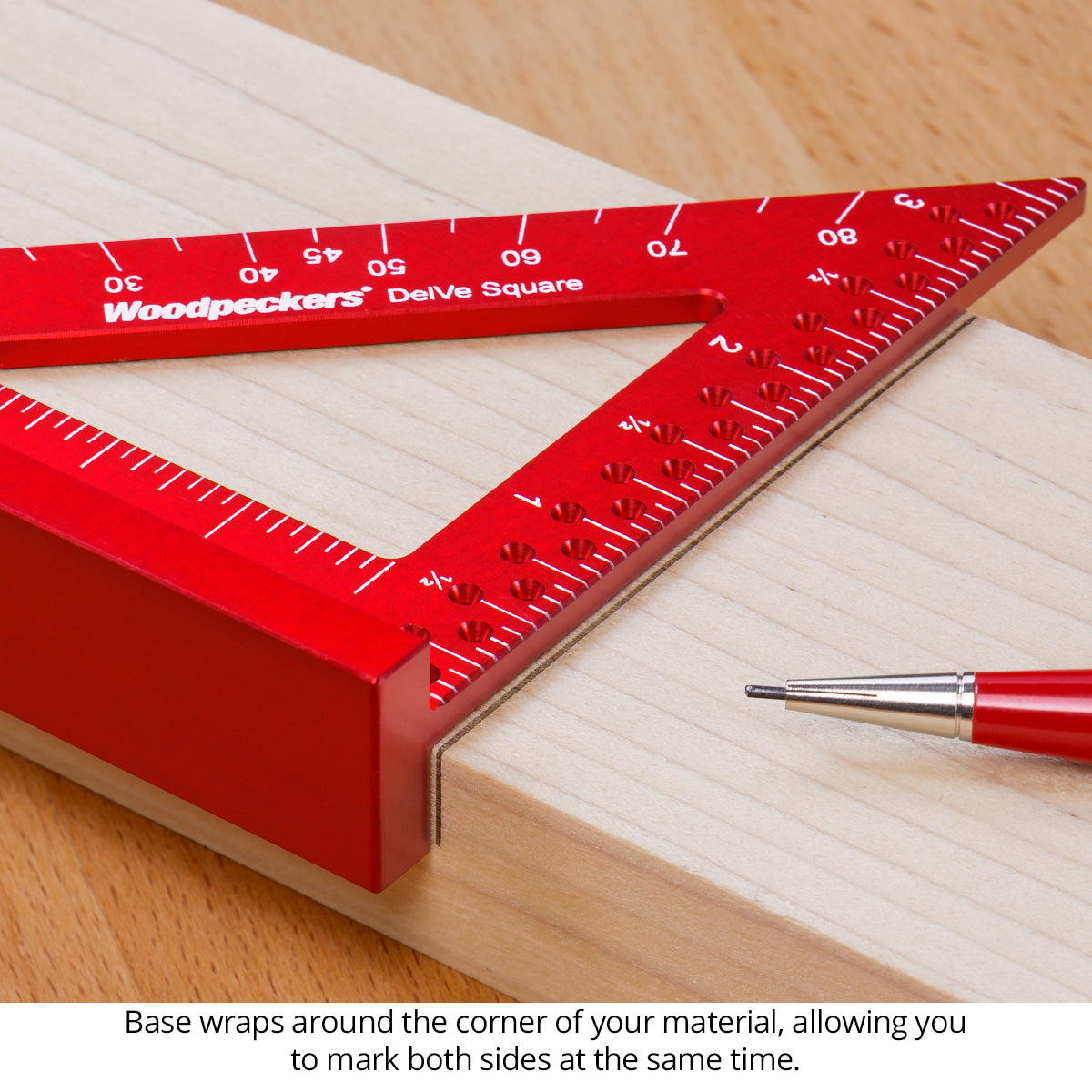

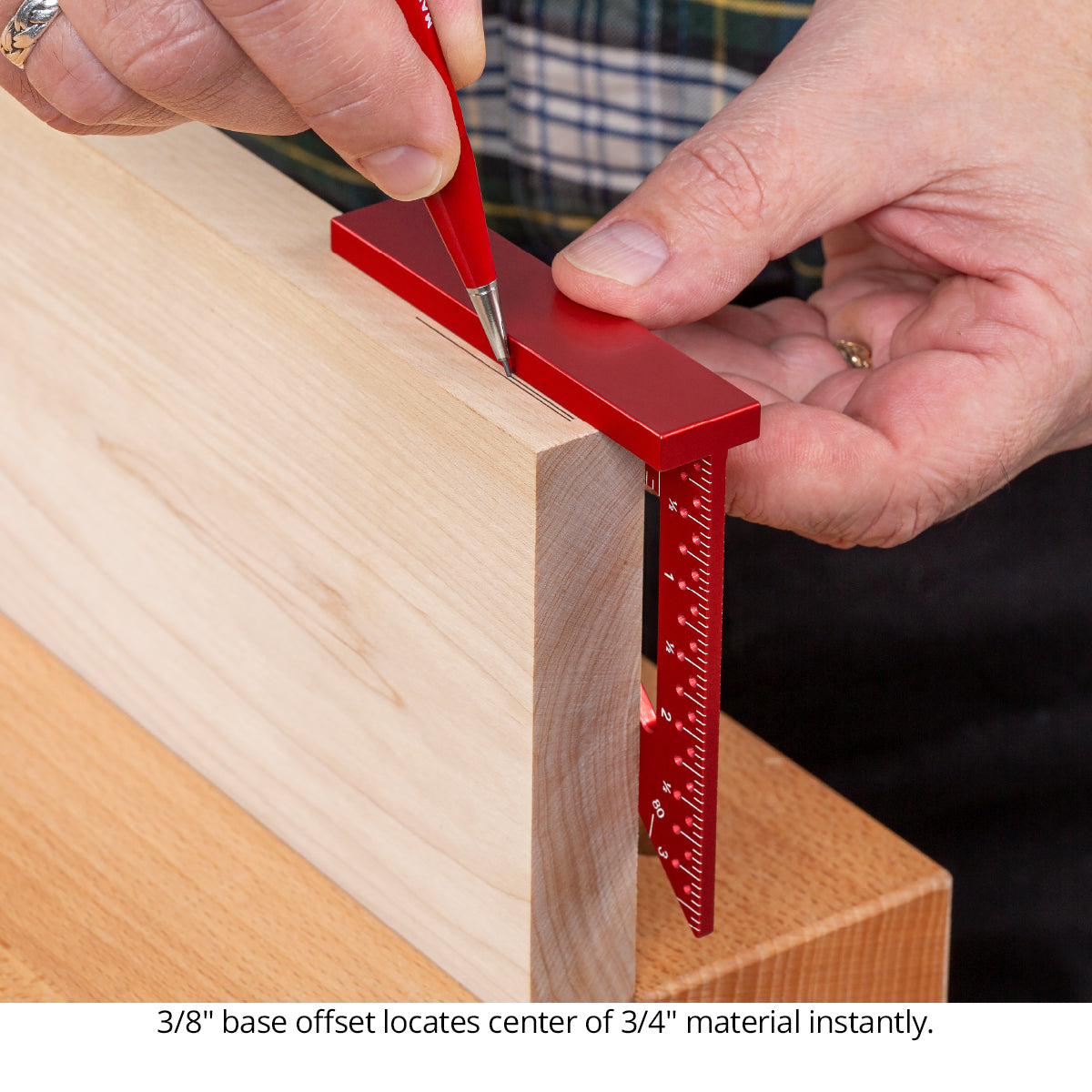

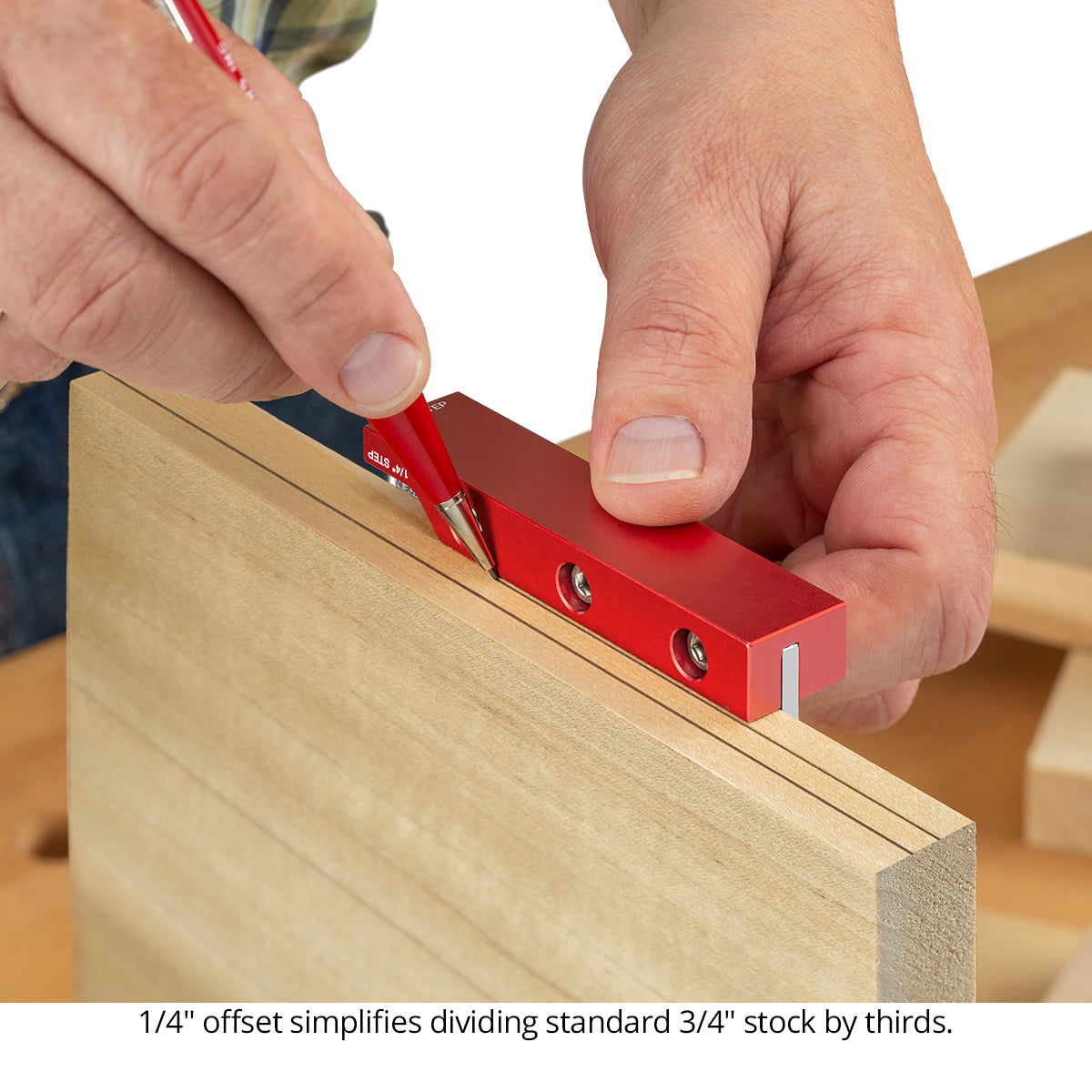

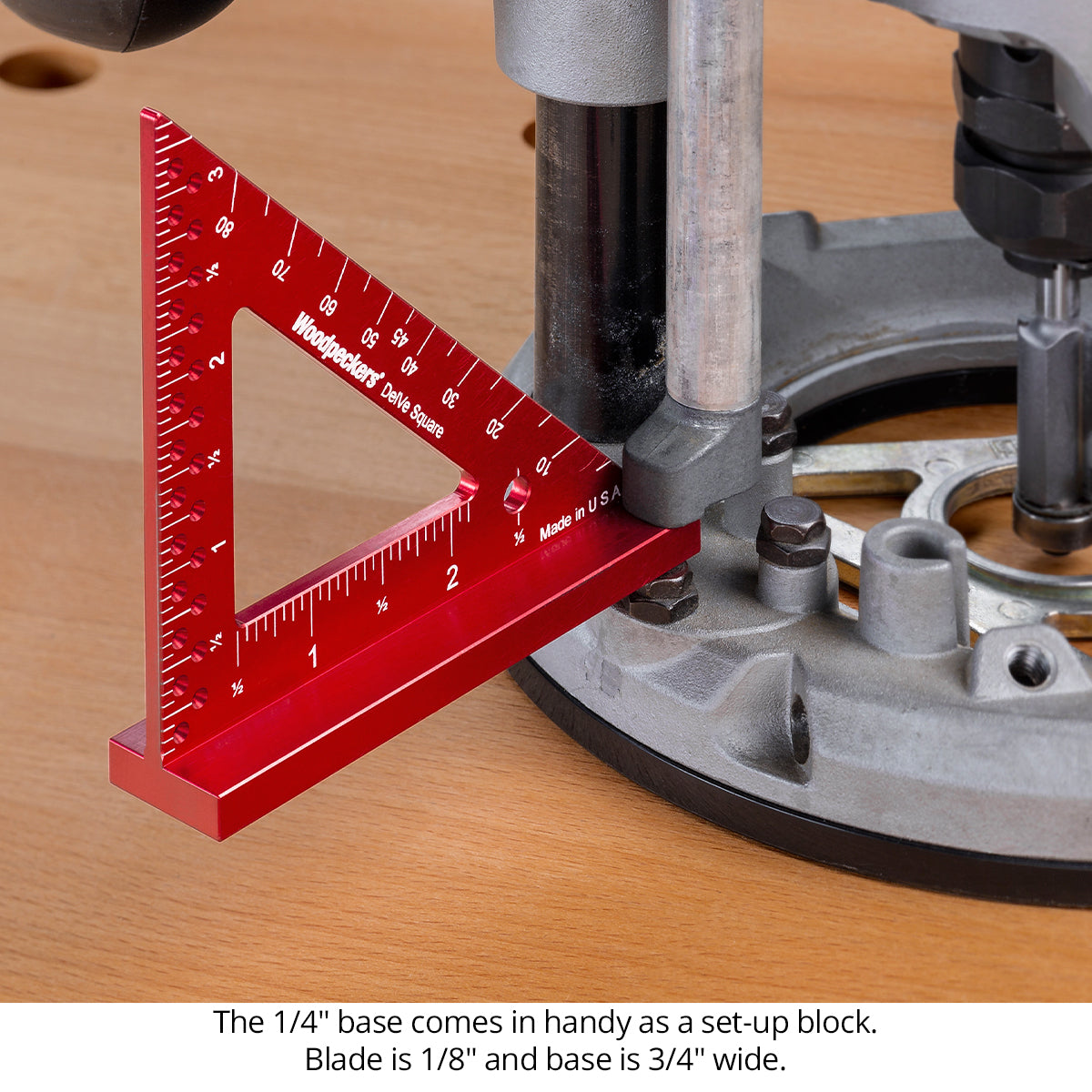

The most unique feature of the DelVe Squares is easy to overlook, but invaluable once you’ve found it. One side of the base is 1/4" from the blade and the other is 3/8". Mark from the 1/4" side on both edges of 3/4" stock and you’ve just laid out a perfectly centered mortise or tenon. Use the 3/8" side to locate center of 3/4" stock for joinery lay out or hardware installation. The 3/8" side also makes it simple to mark the face and edge of your stock at the same time at exactly the same point.

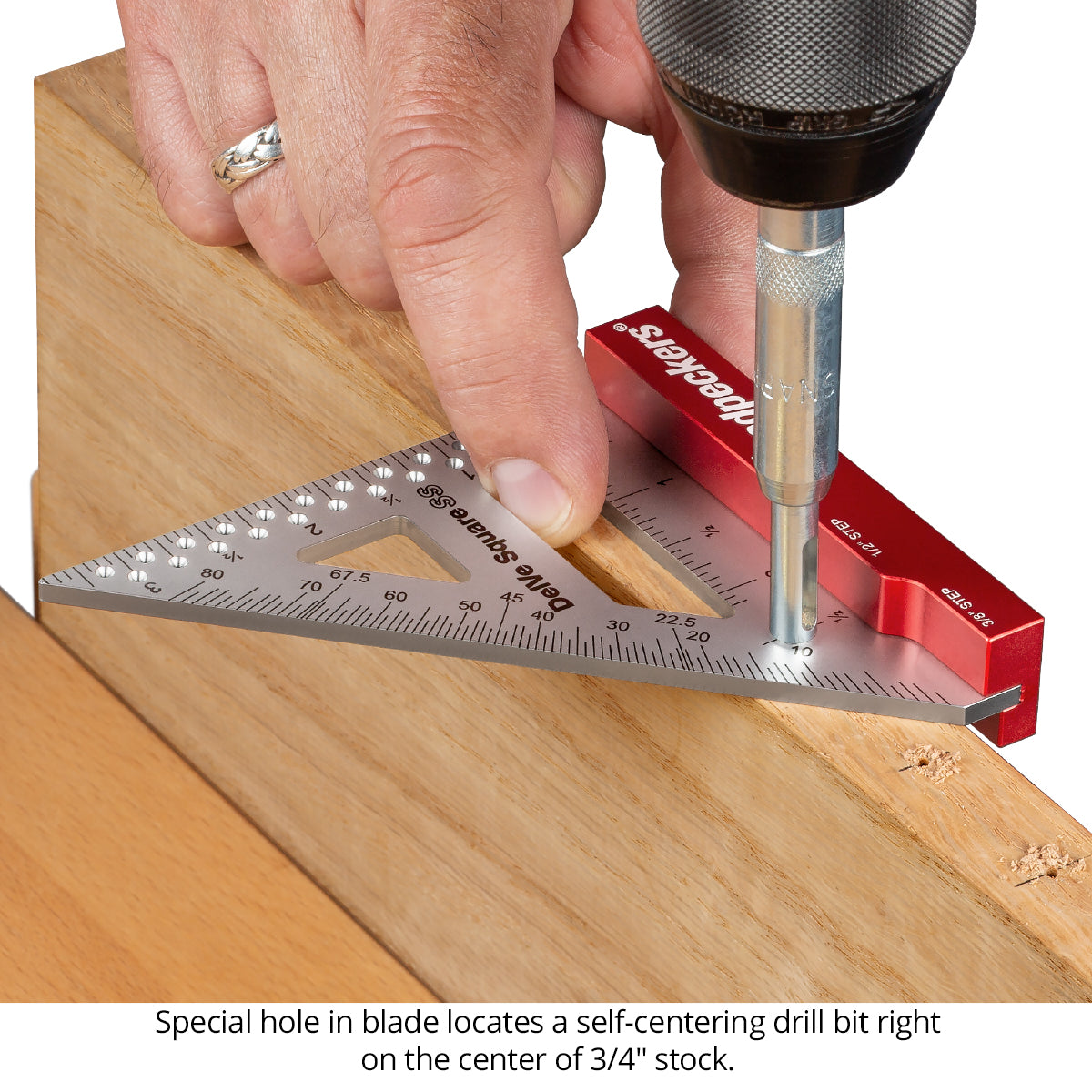

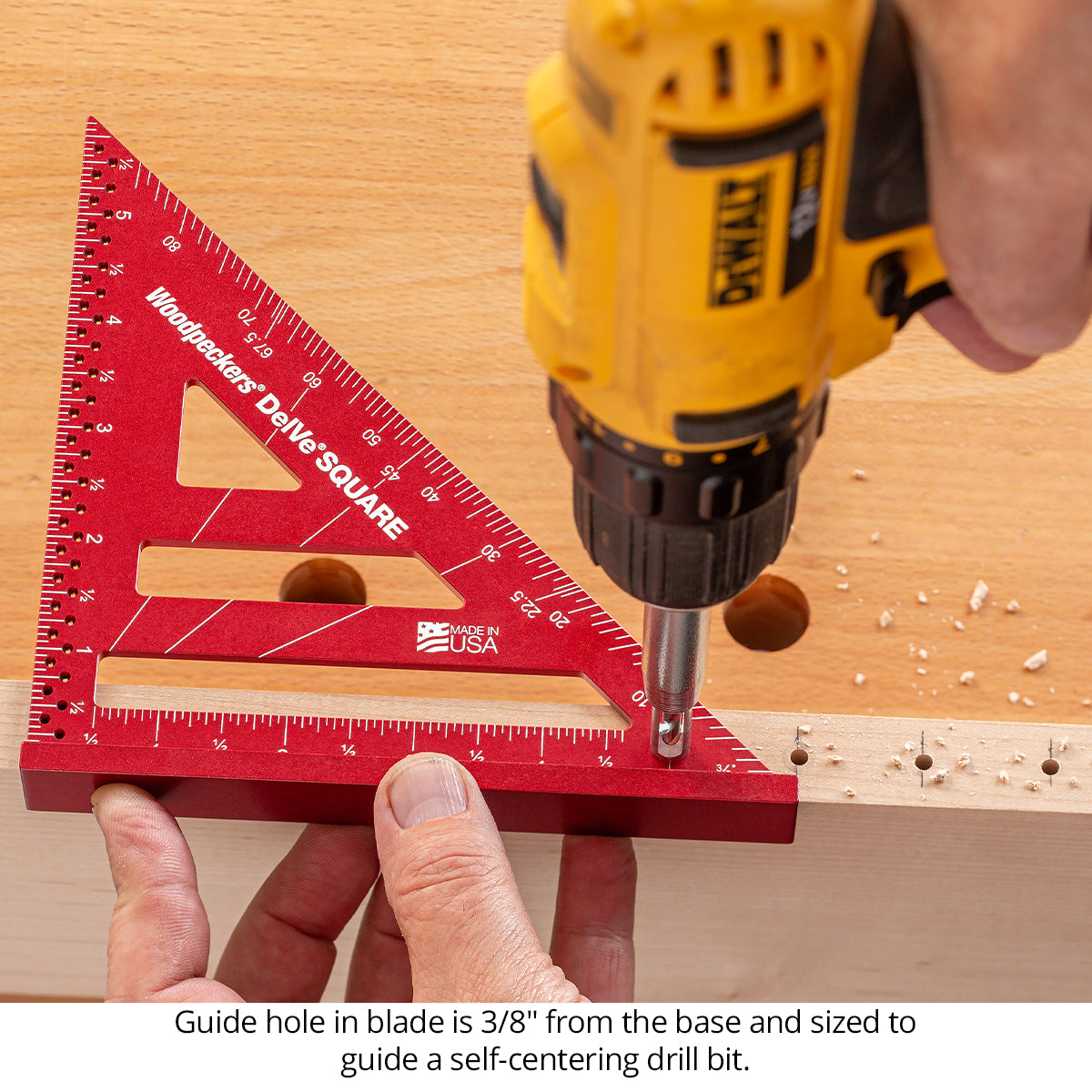

Need a hole centered on 3/4" stock? No problem, there’s a hole milled 3/8" from the inside edge of the base and perfectly sized to work with self-centering drill bits.

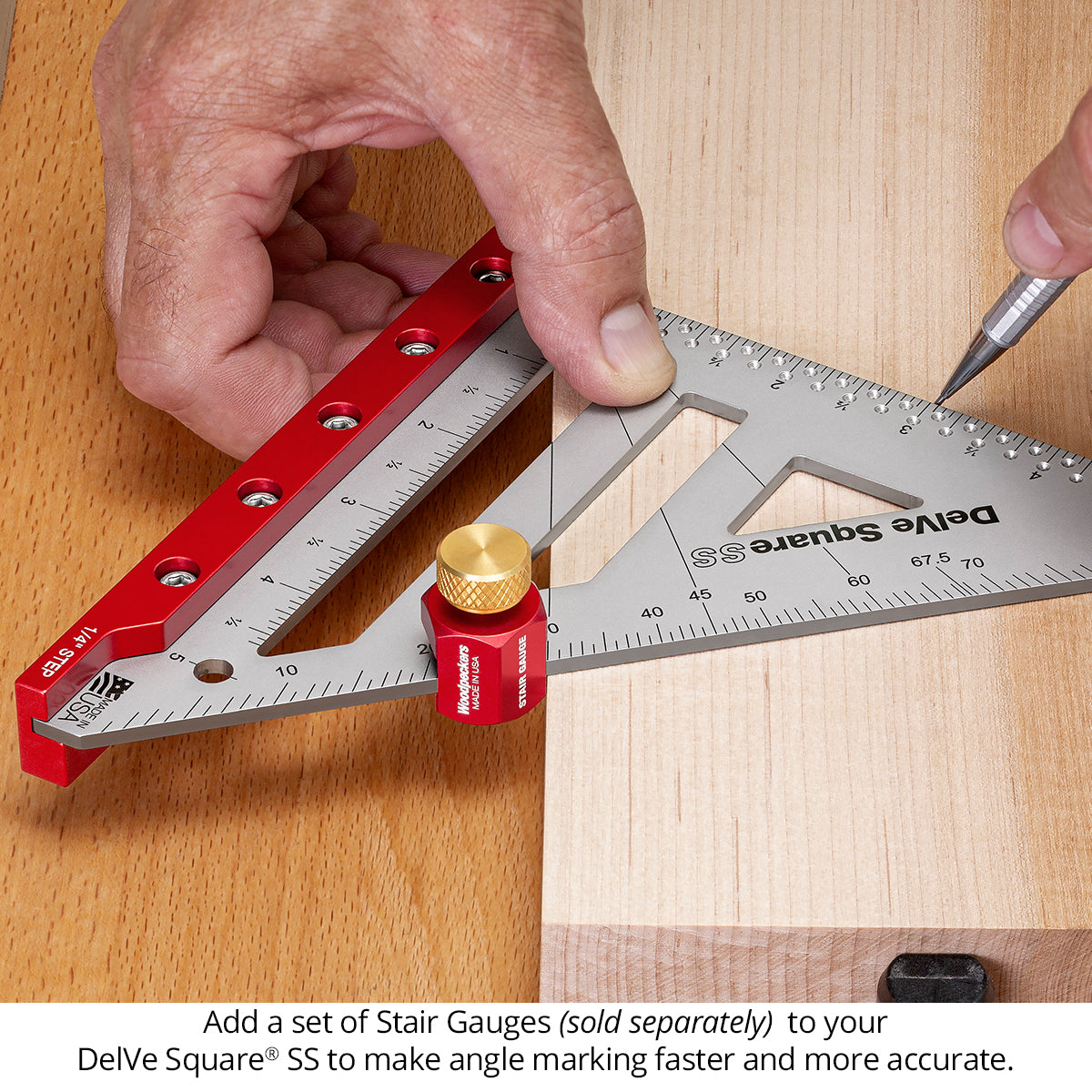

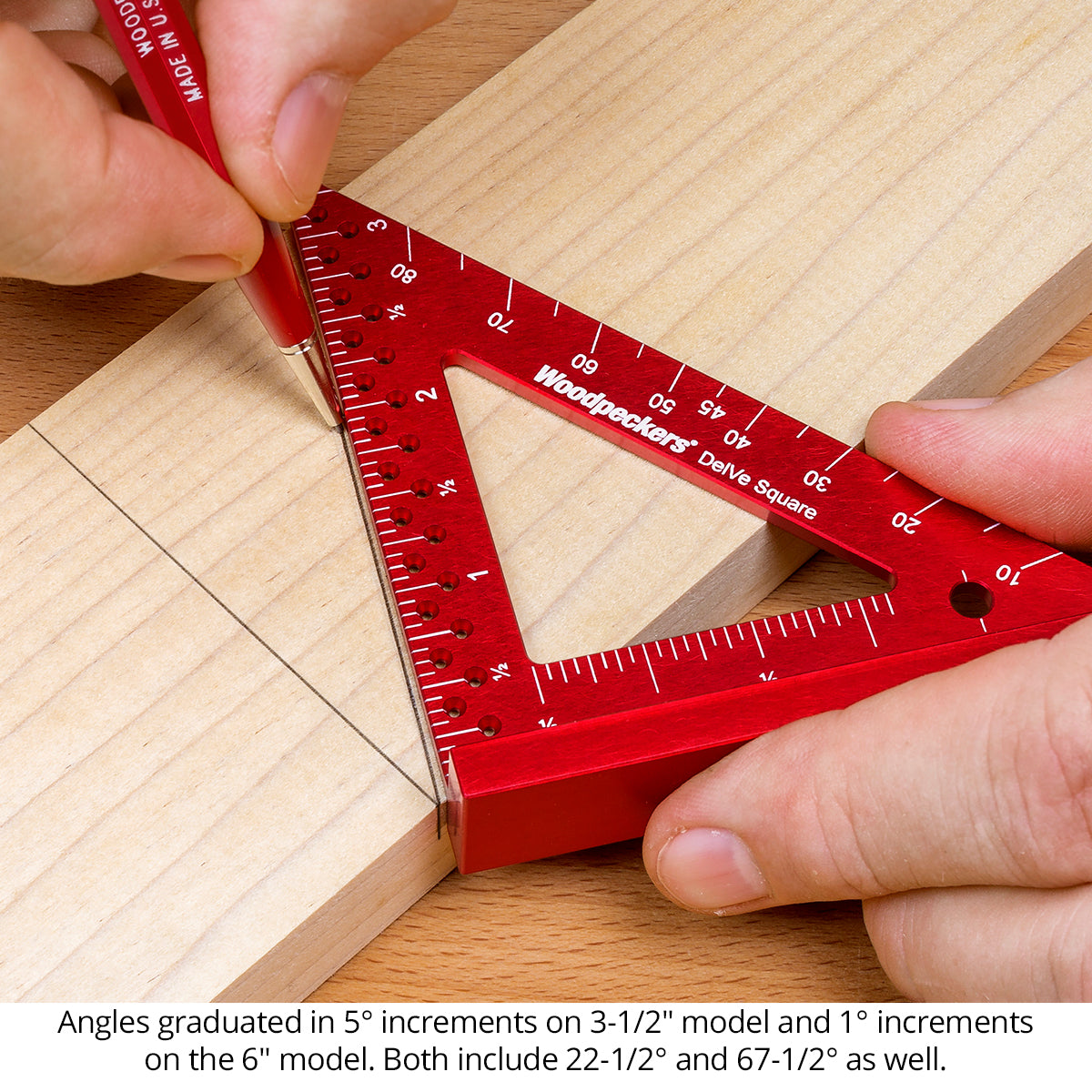

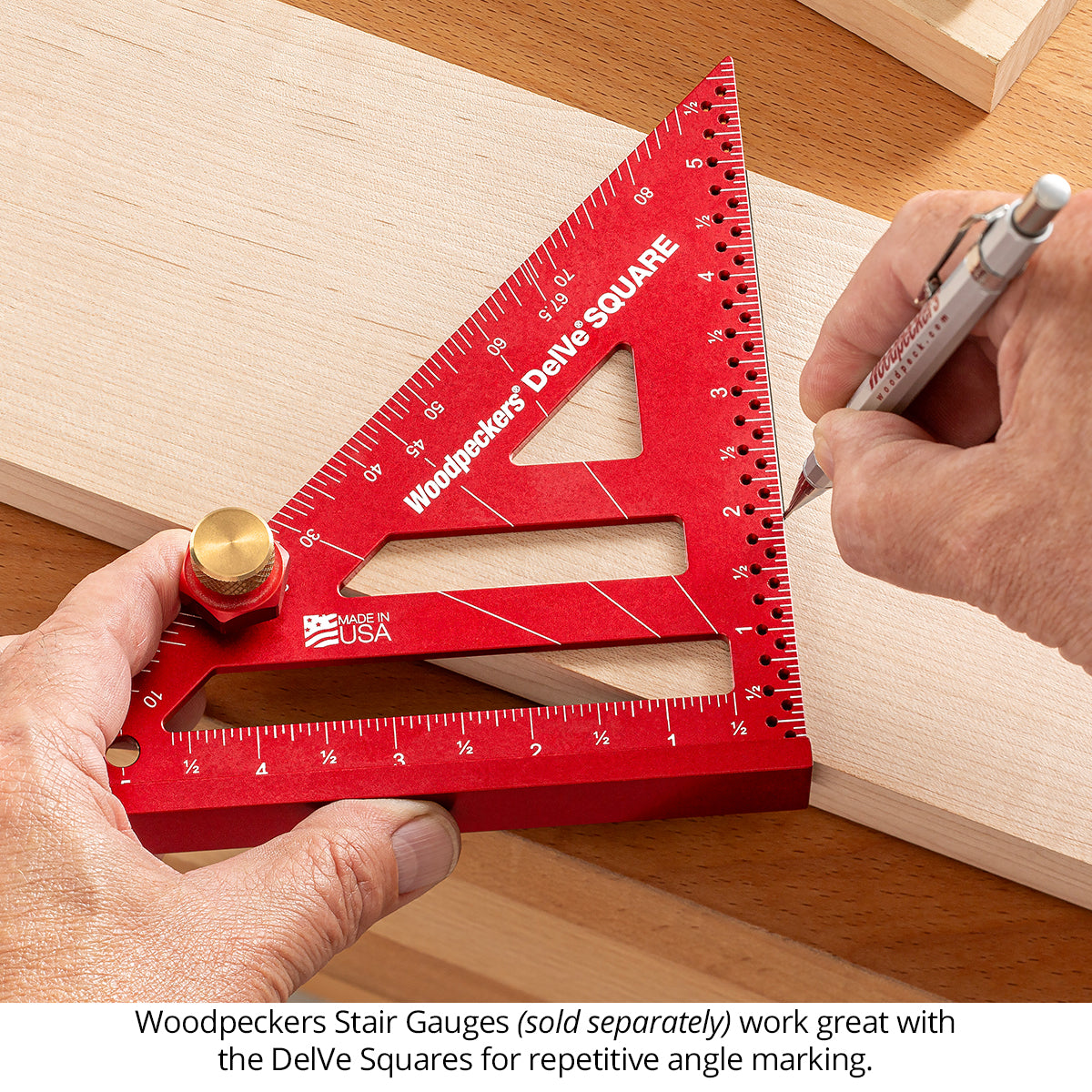

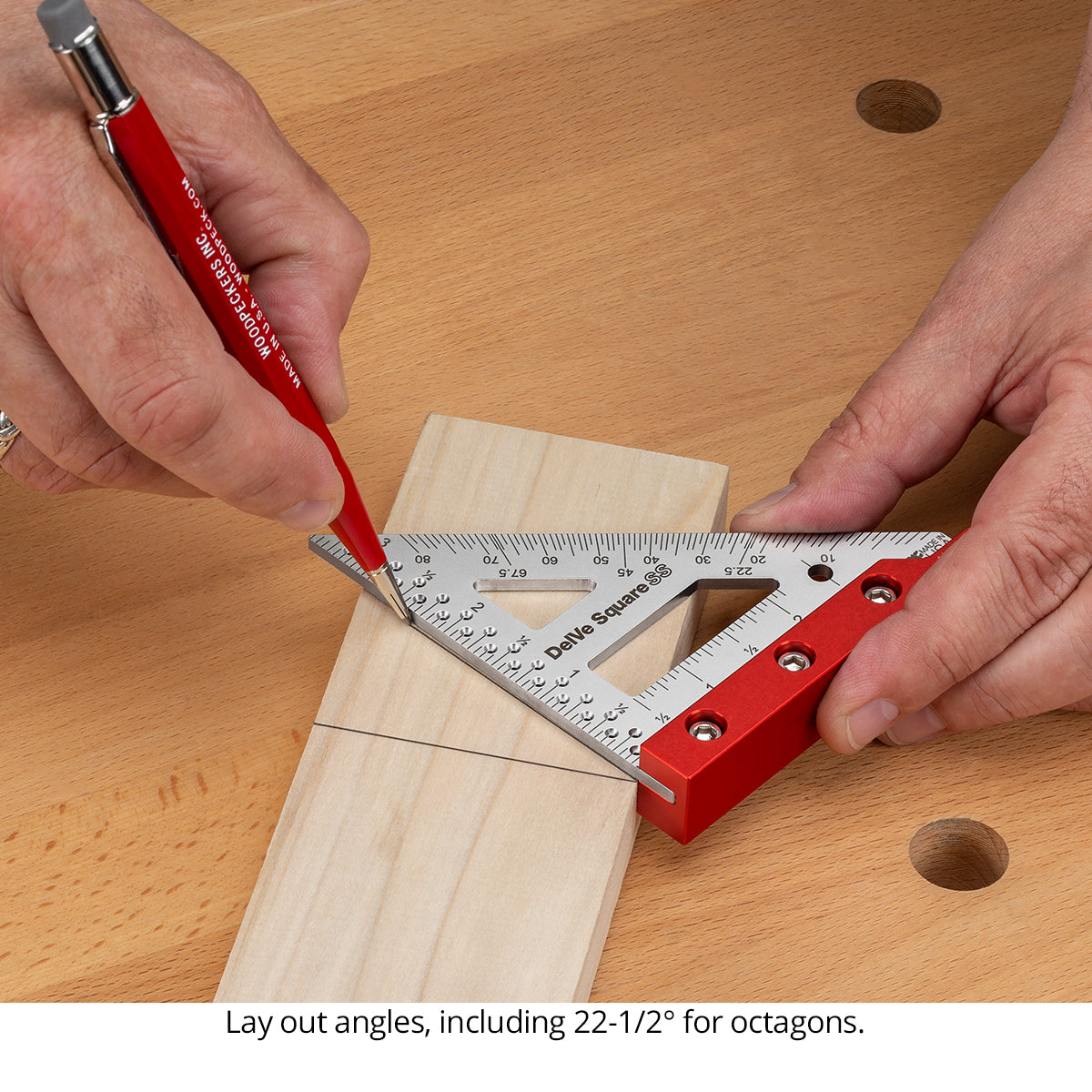

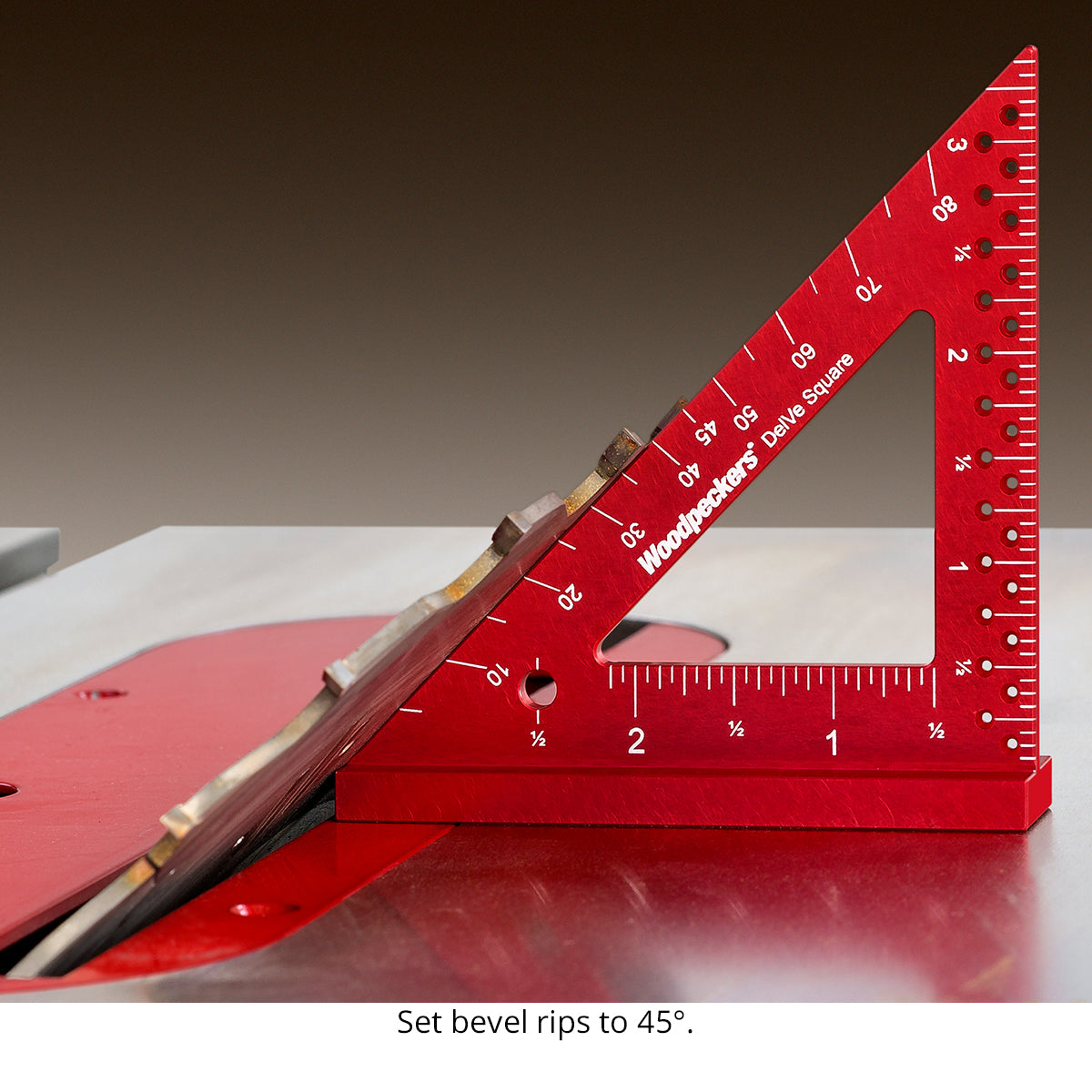

These are not just simply squares. In addition to the 45⁰ and 90⁰ edges, angles are graduated along the hypotenuse...in 1° increments on the 6" version and 5° increments on the 3.5". Both squares have additional graduations for octagonal layout at 22.5° and 67.5°. Woodpeckers Stair Gauge (sold separately) pairs well with the DelVe Square to lock in an angle and make repeatable marks where you need them.

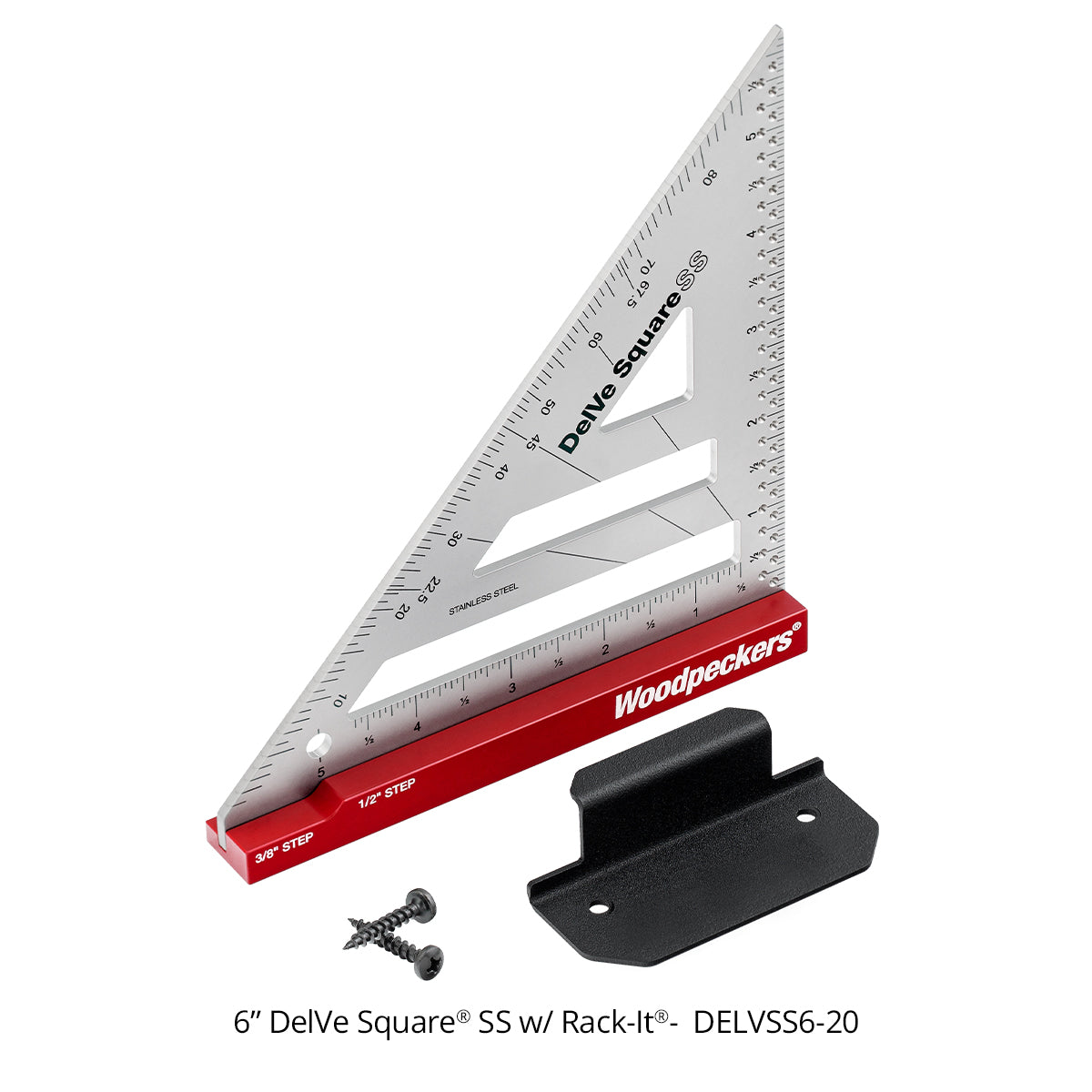

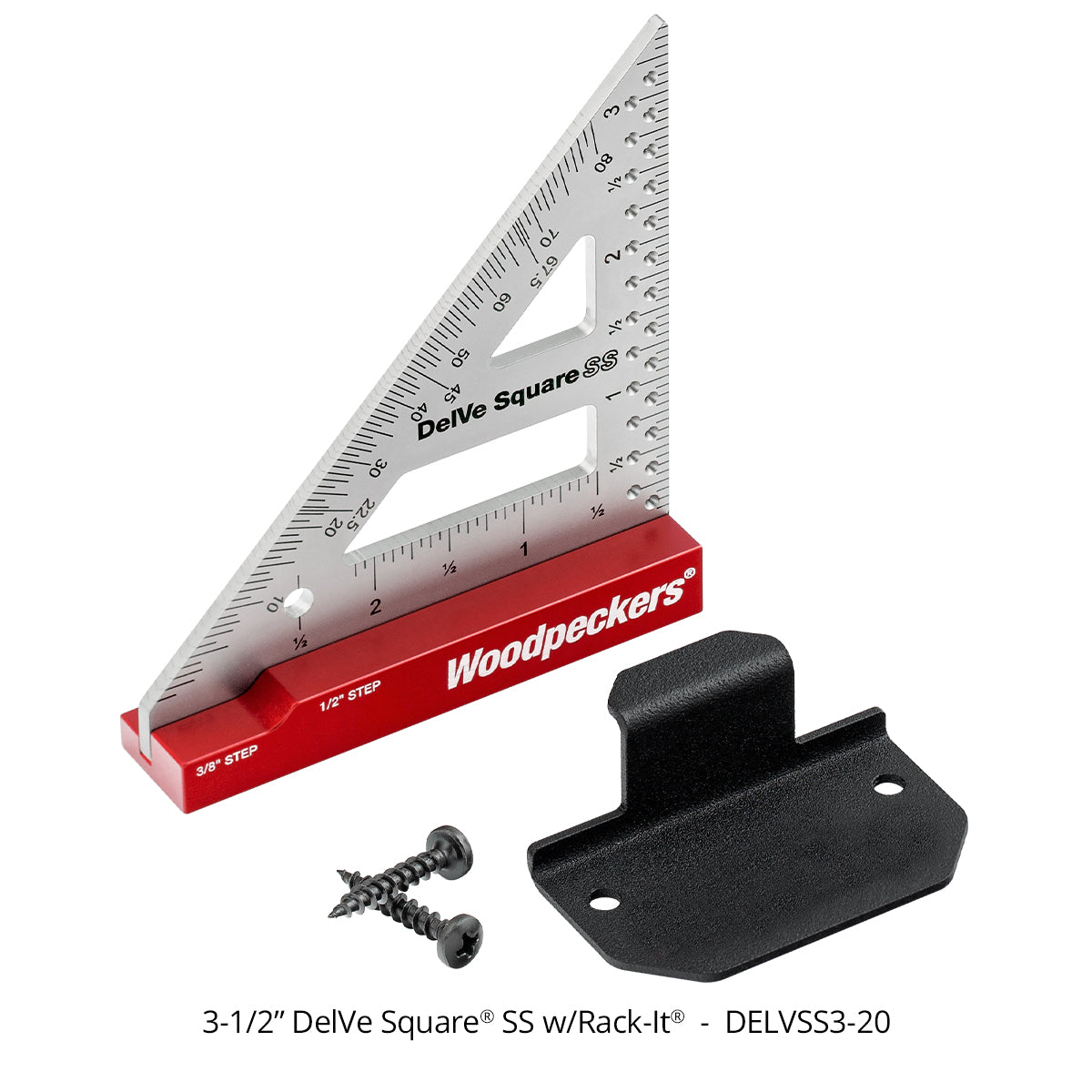

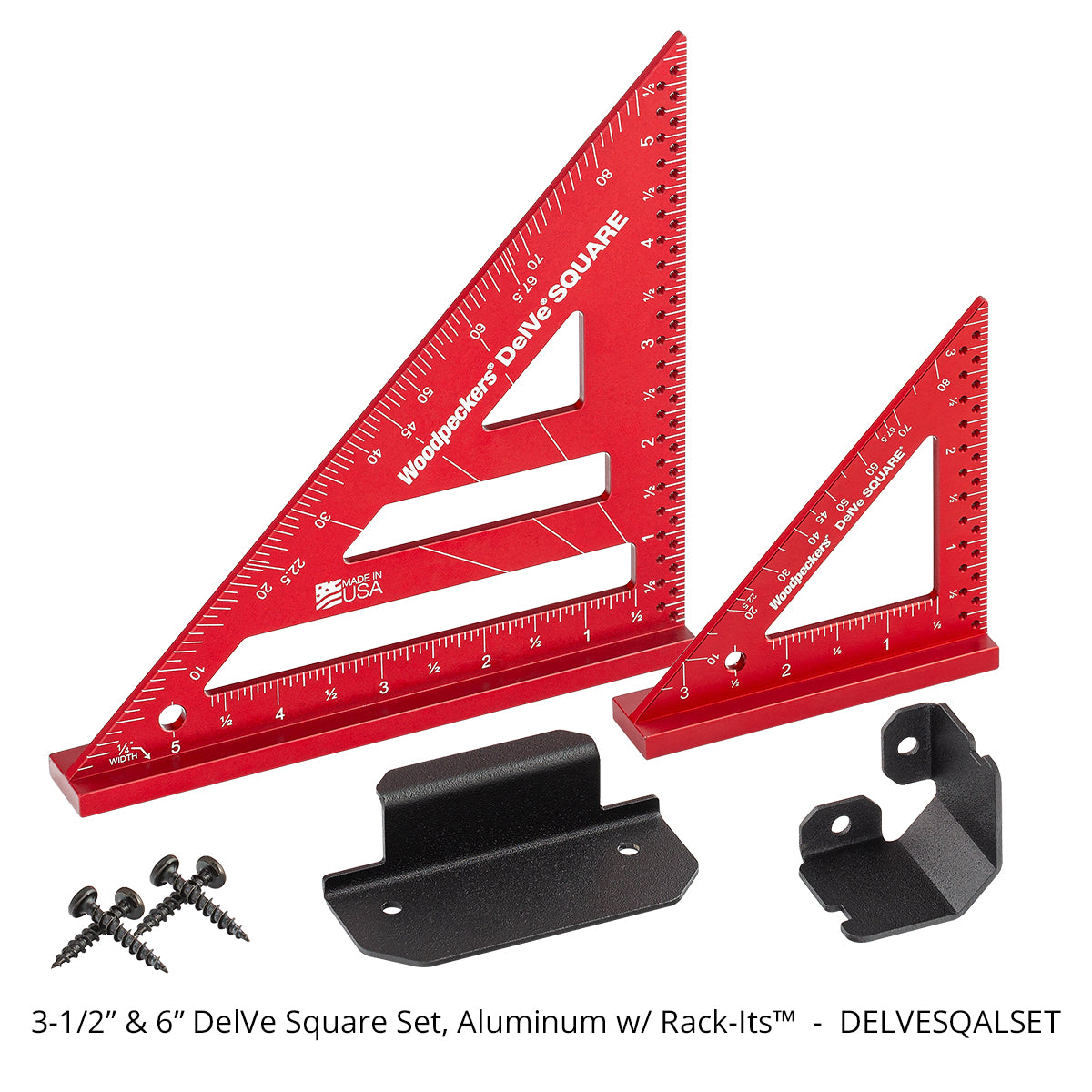

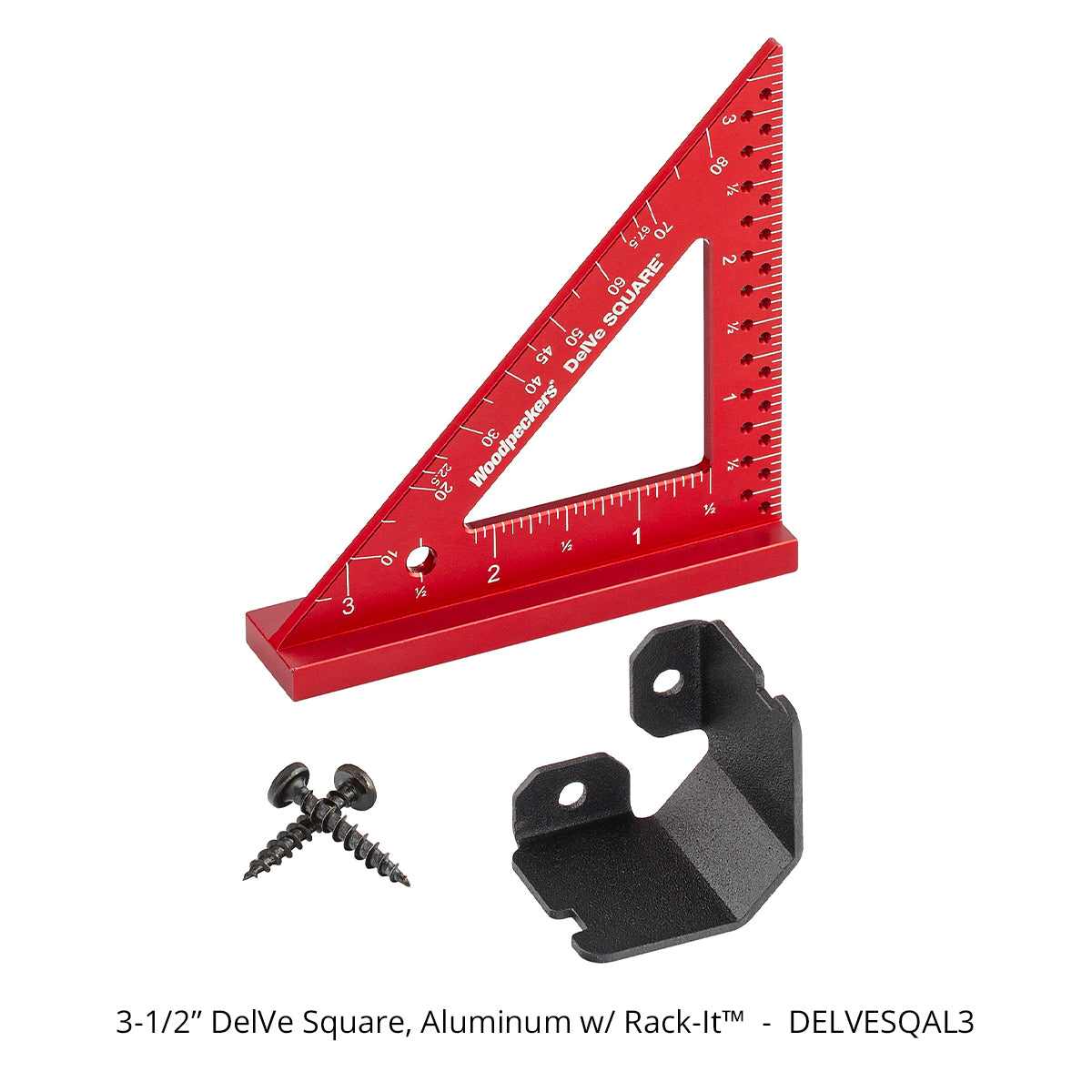

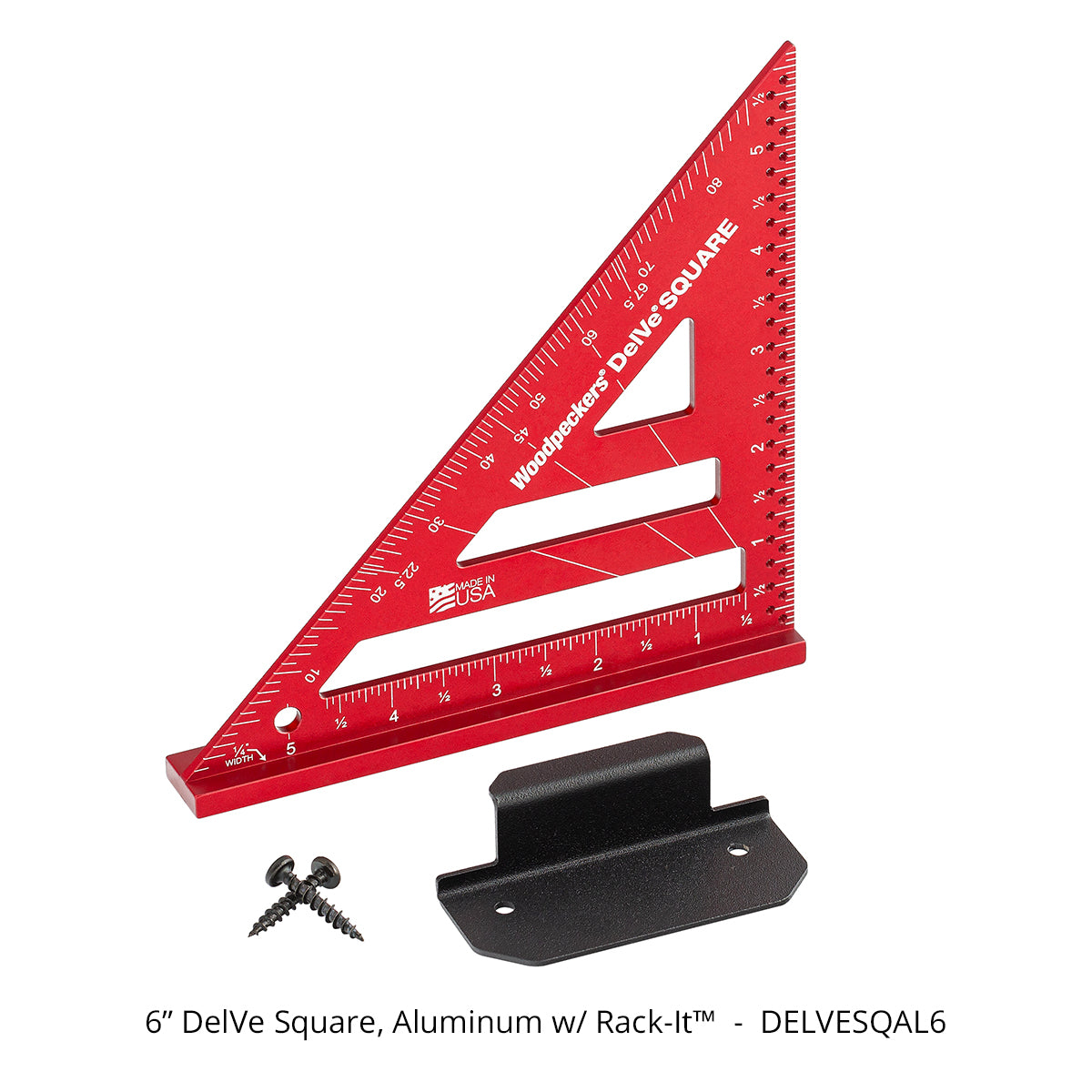

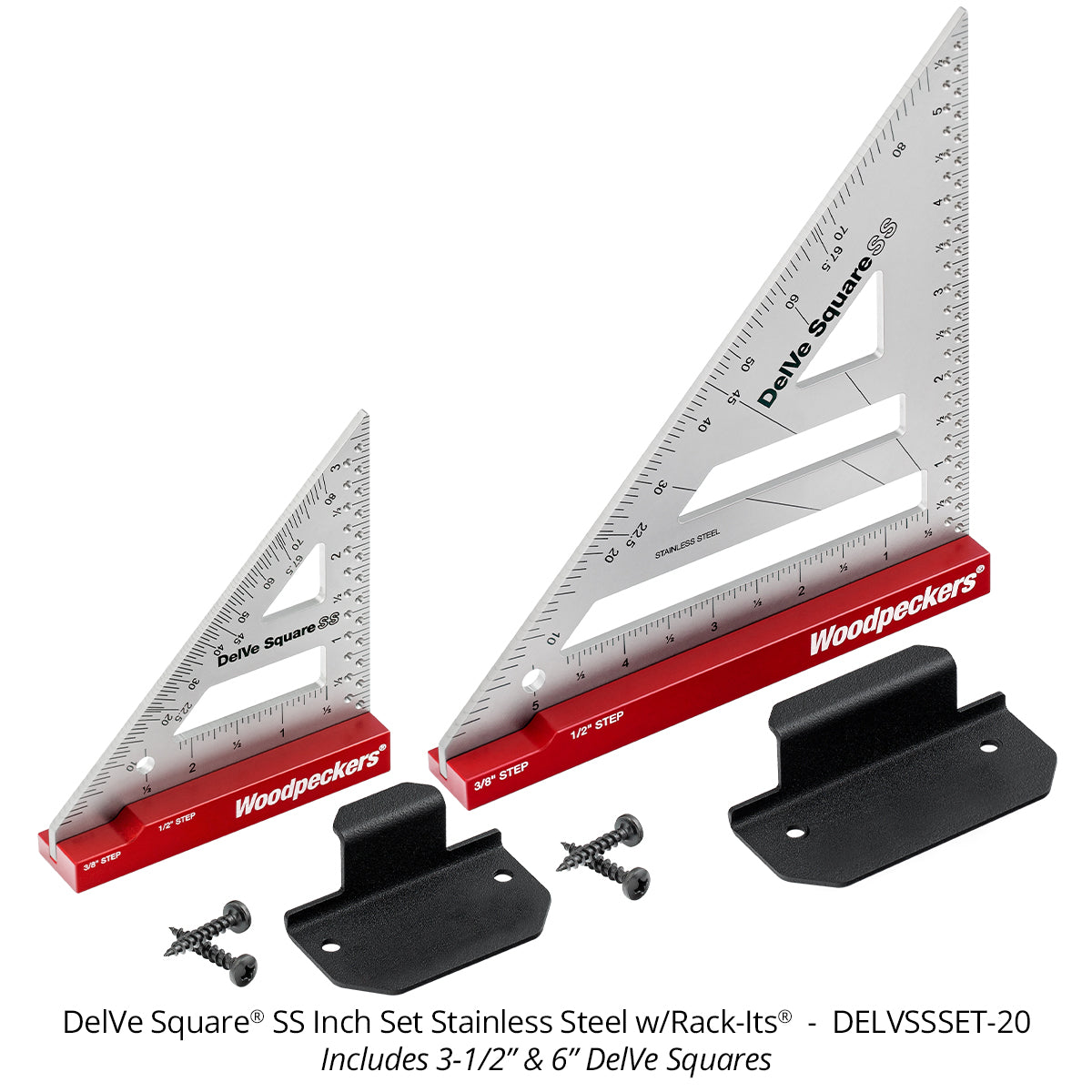

All models include a wall-mountable Rack-It to keep your DelVe right in plain sight and ready to go to work.

Like all Woodpeckers products, the DelVe Squares are precisely machined and carefully inspected in our Strongsville, Ohio facility, just south of Cleveland.
