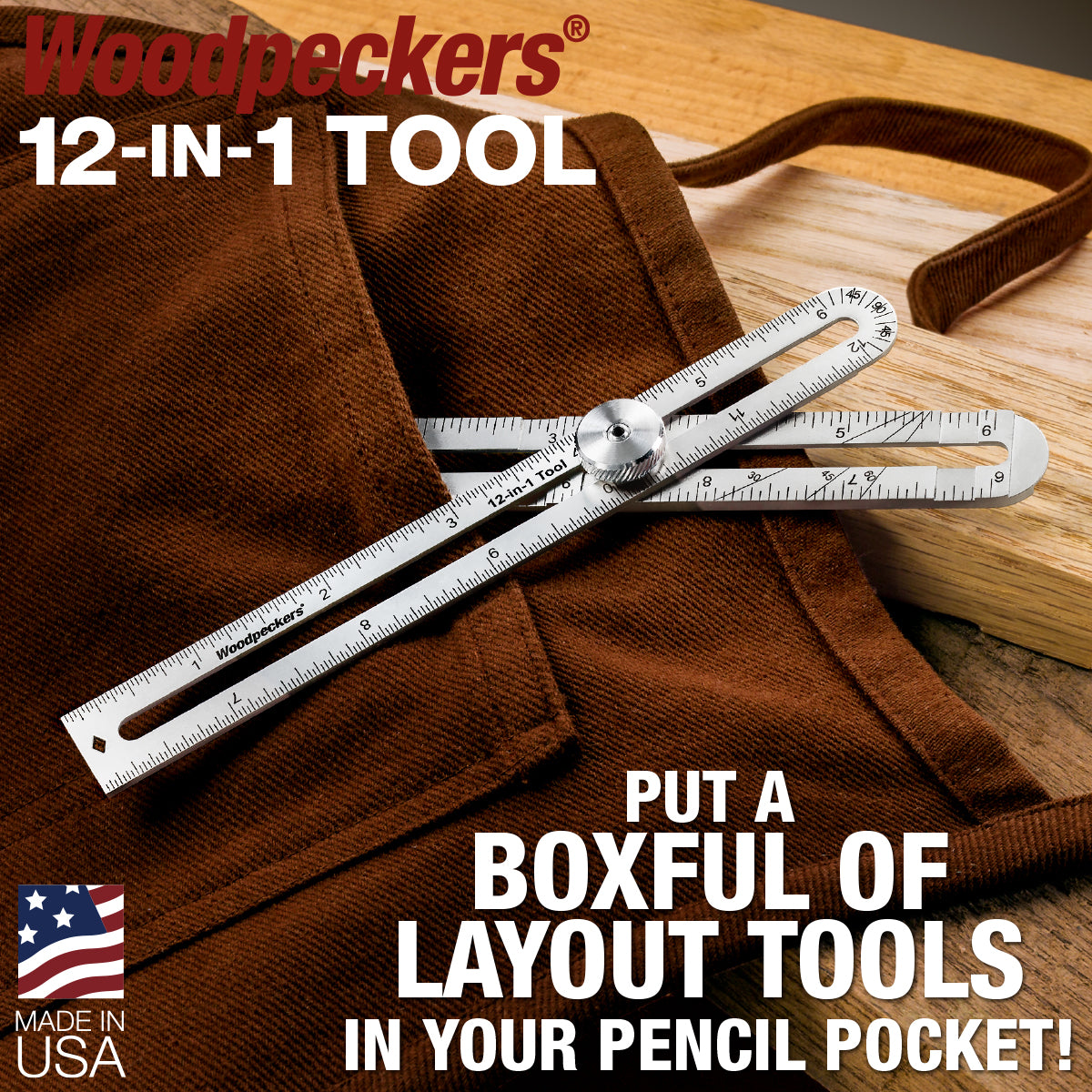

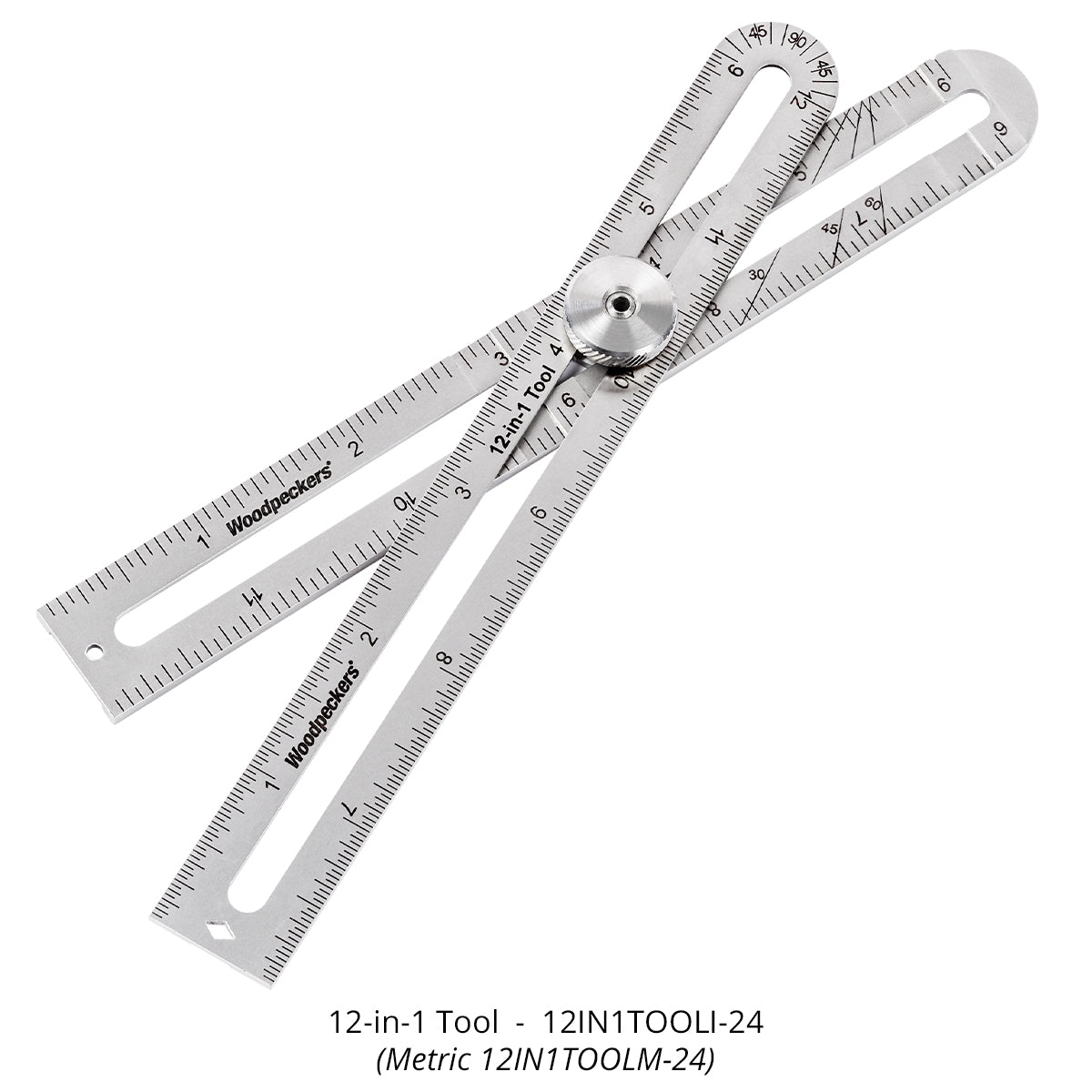

12-In-1 Layout Tool and Adjustable Square

Woodpeckers 12-IN-1 Layout Tool and Adjustable Square Does the Job of All These

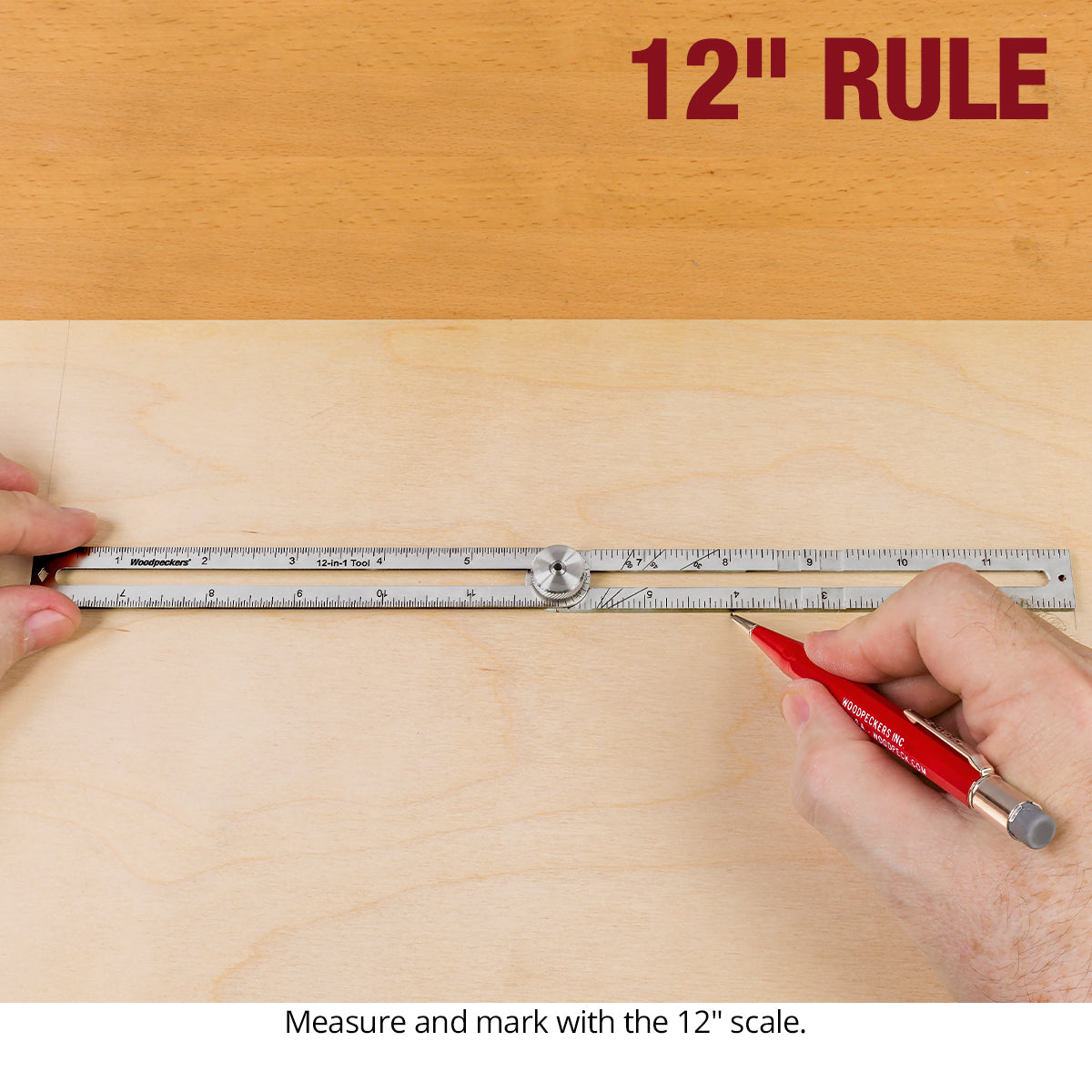

• 12" Rule

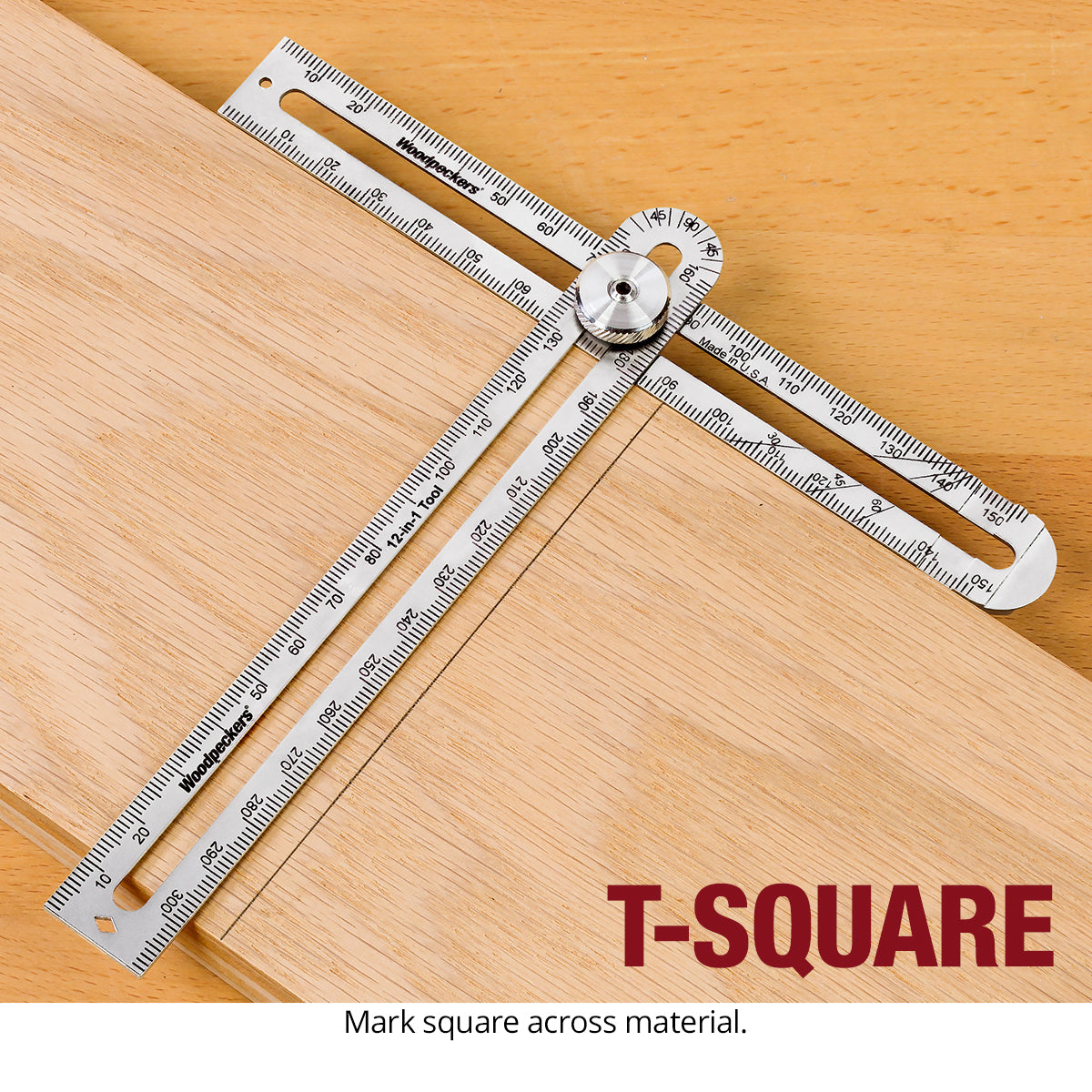

• T-Square

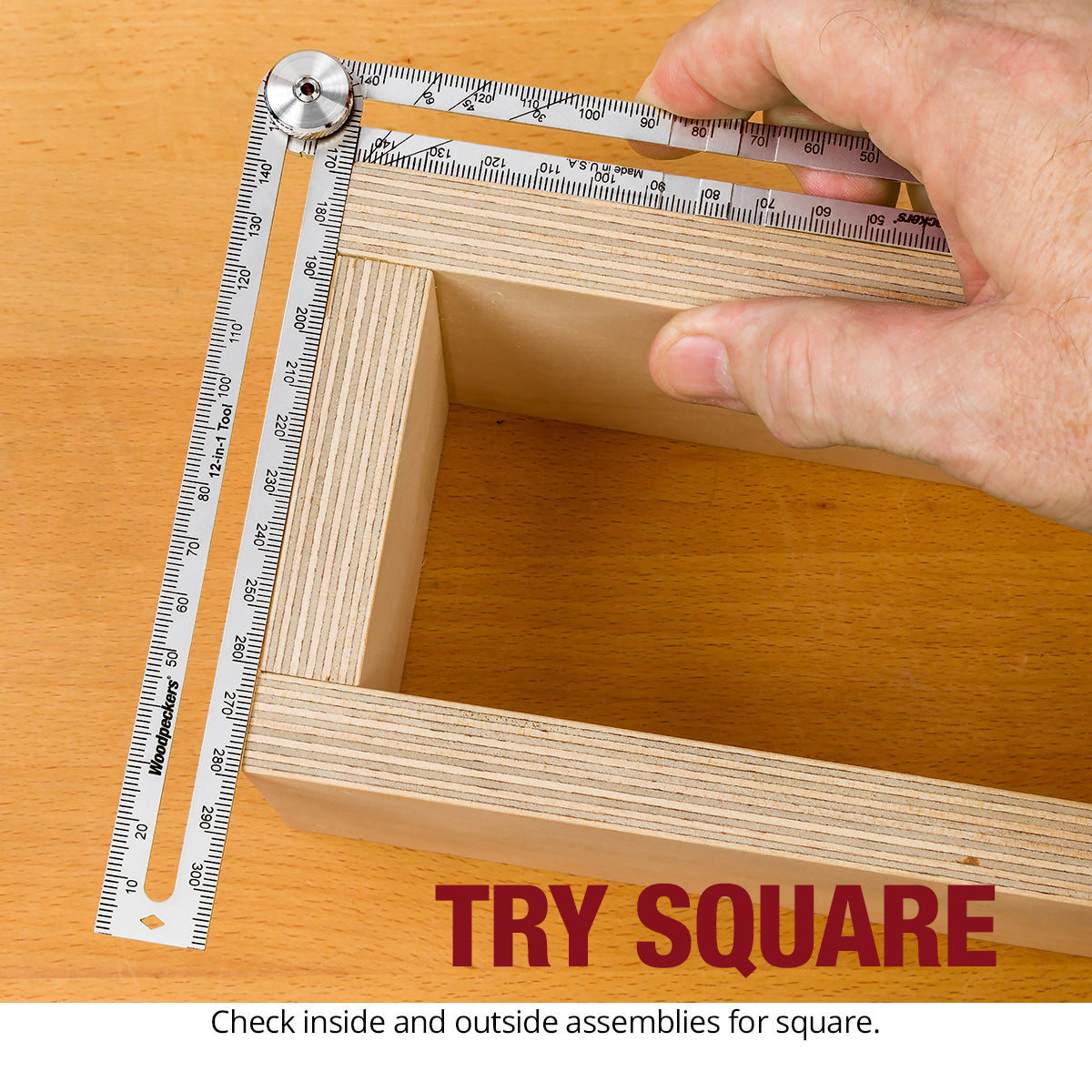

• Try Square
• Bevel Gauge
• Compass
• Marking Gauge
• Divider
• Depth Gauge
• Diameter Gauge

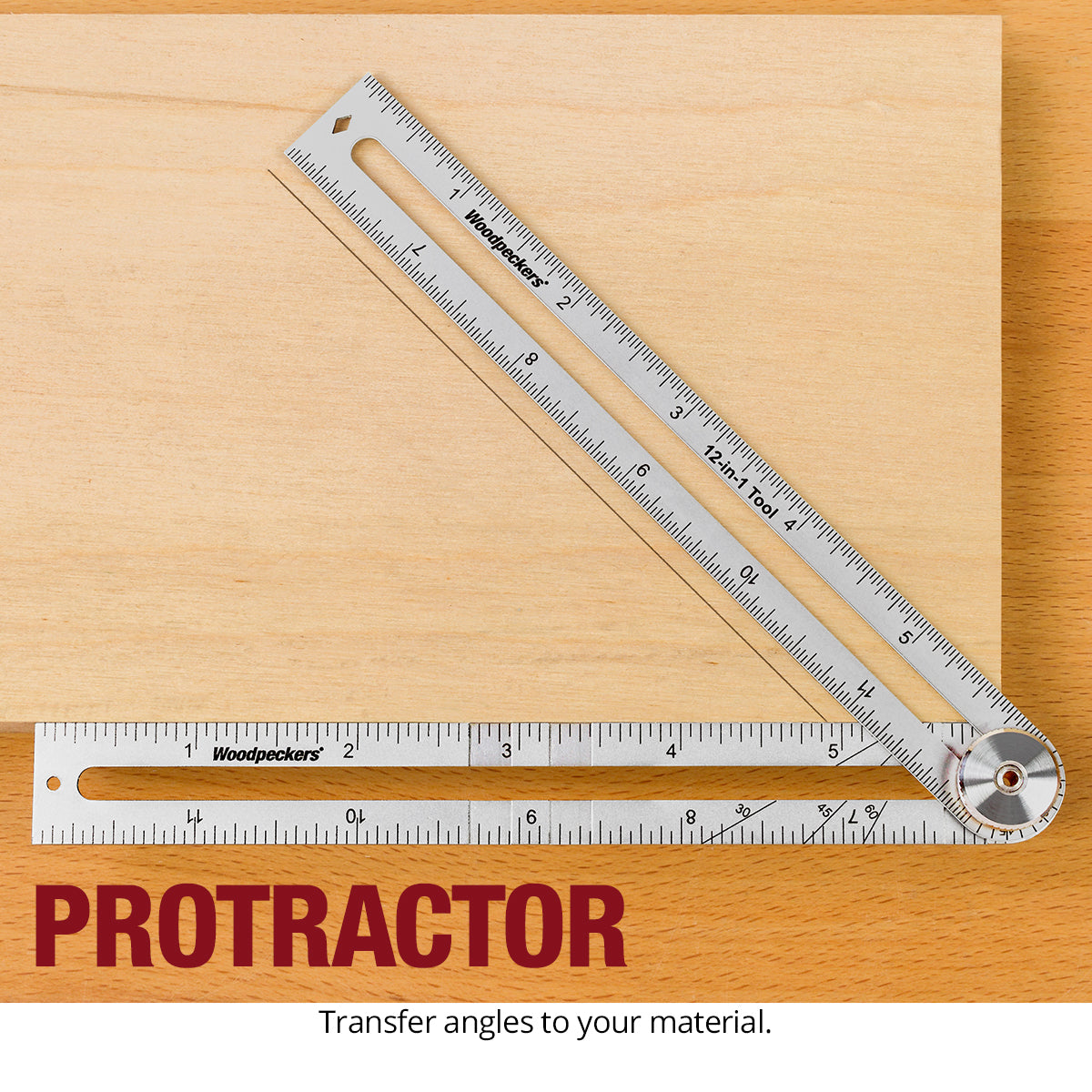

• Protractor

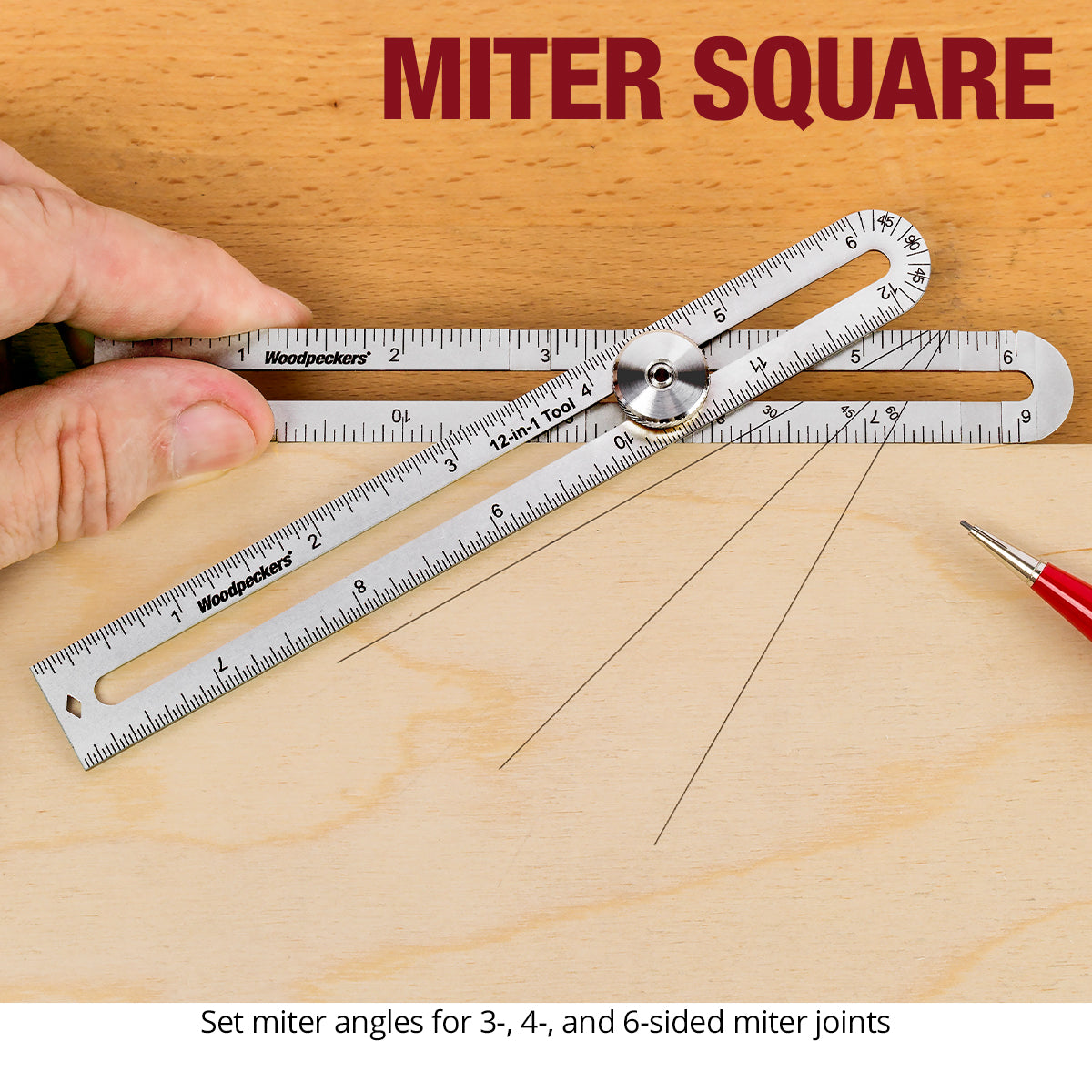

• Miter Square
• Inside Measurement Scales

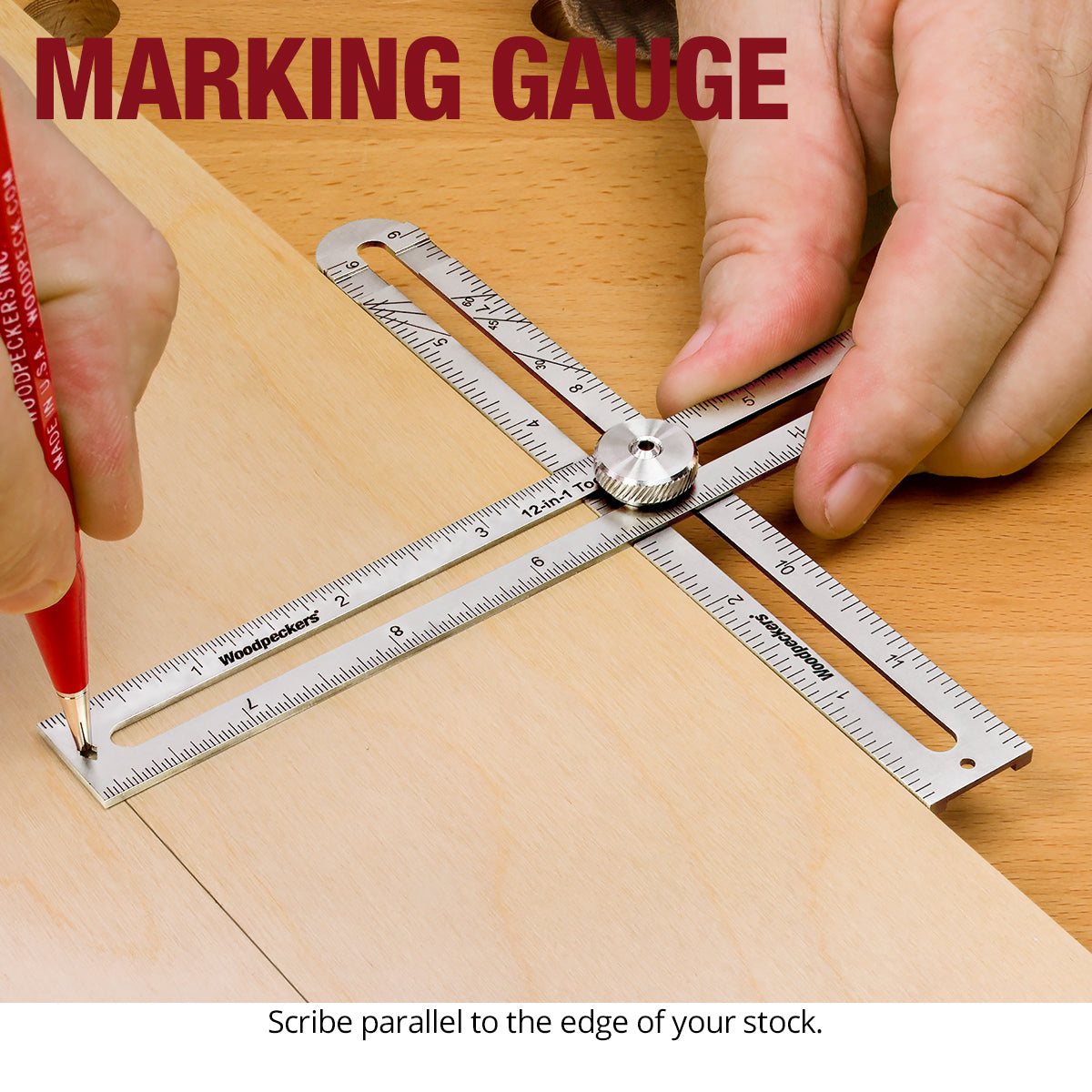

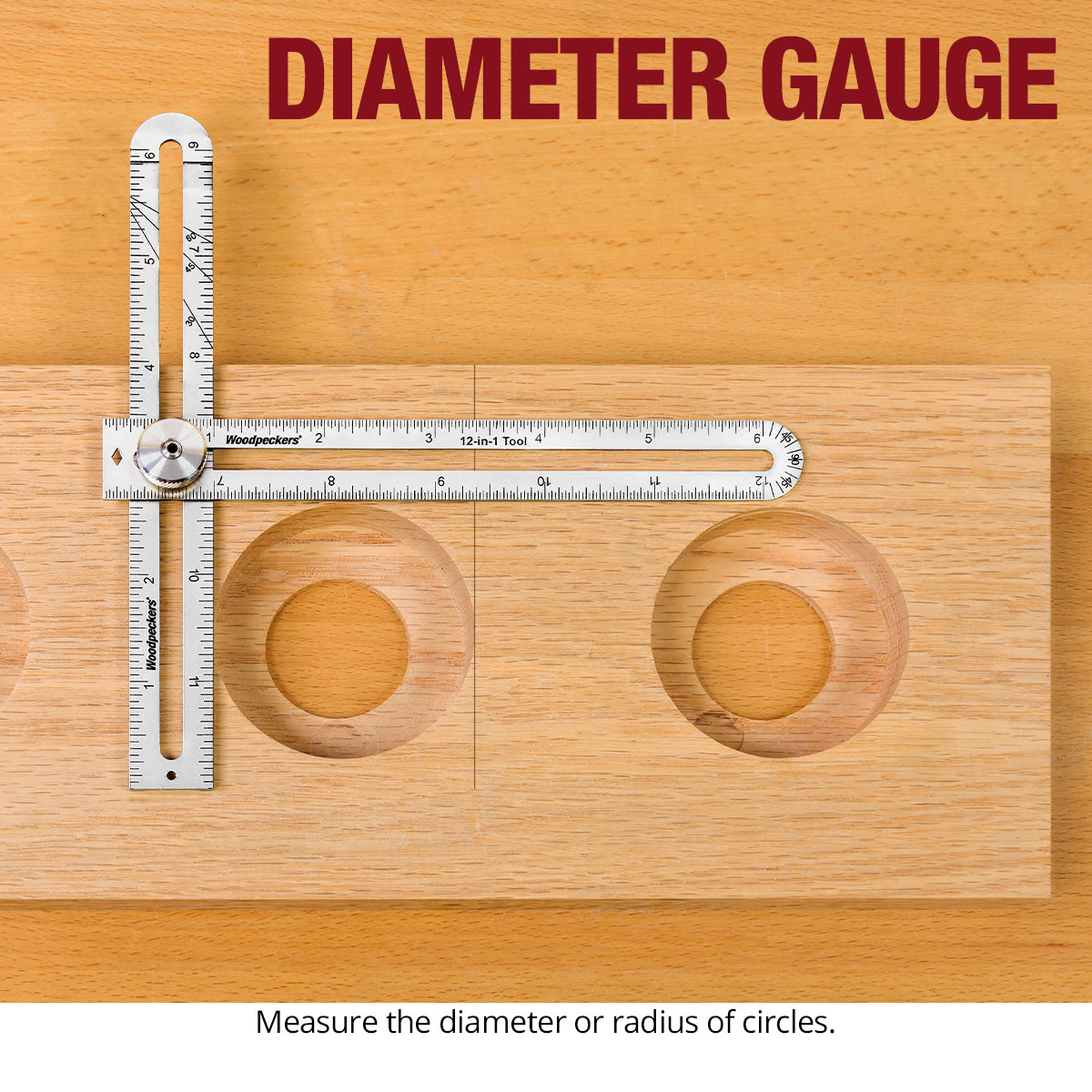

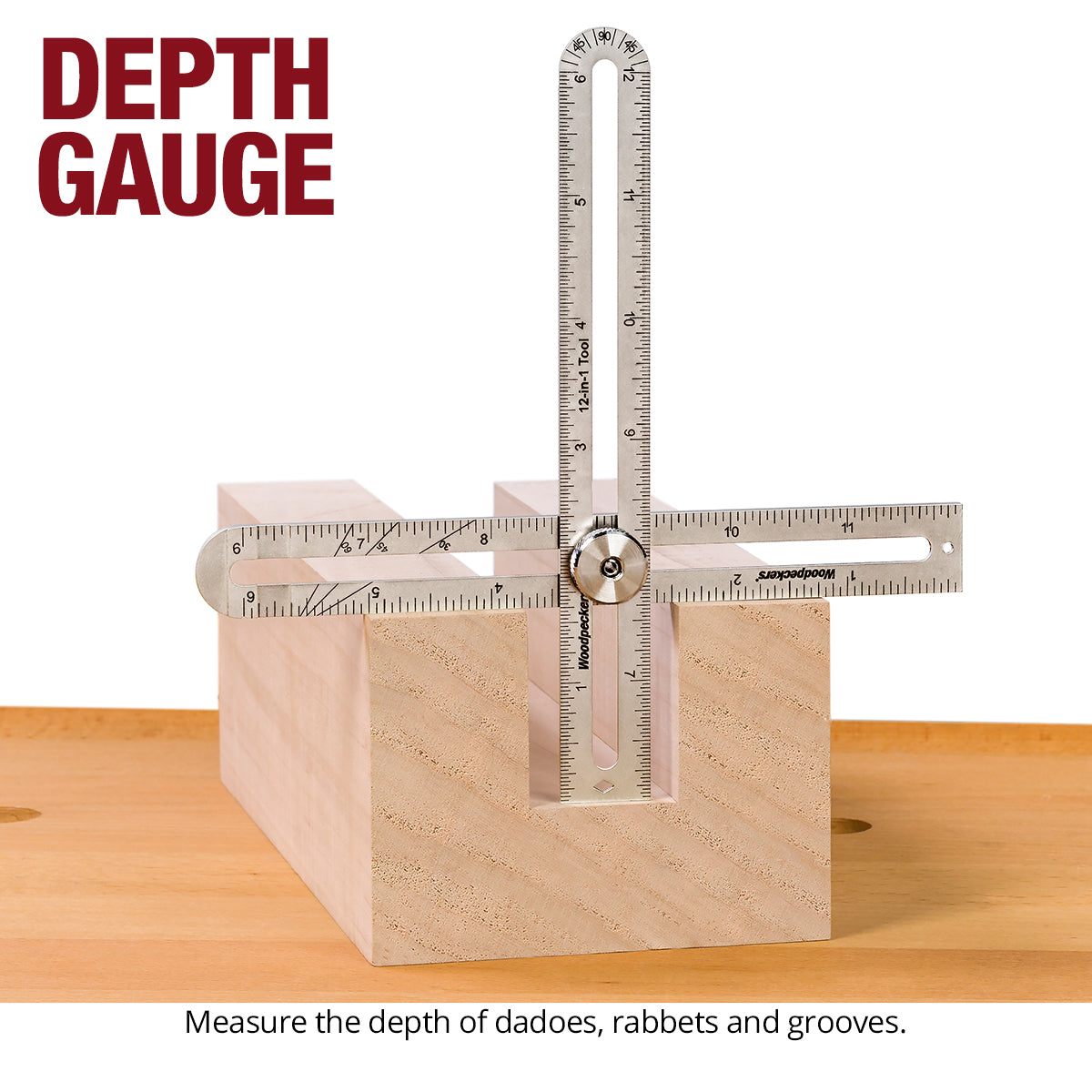

A pair of close-tolerance grooves machined in the center of the base scale capture the adjustable scale dead square. This forms the foundation of the T-square, Marking Gauge and Depth Gauge. A similar set of grooves at the end of the base scale locates the adjustable scale for the Try-Square and Diameter Gauge functions. There's a scribing guide 1/8" from the end of the adjustable scale. Just drop in a pencil, slide the base scale along your material and mark precisely parallel to the edge. Go ahead…test these functions against your most trusted square reference. We're confident you'll find them to be well within acceptable working limits.

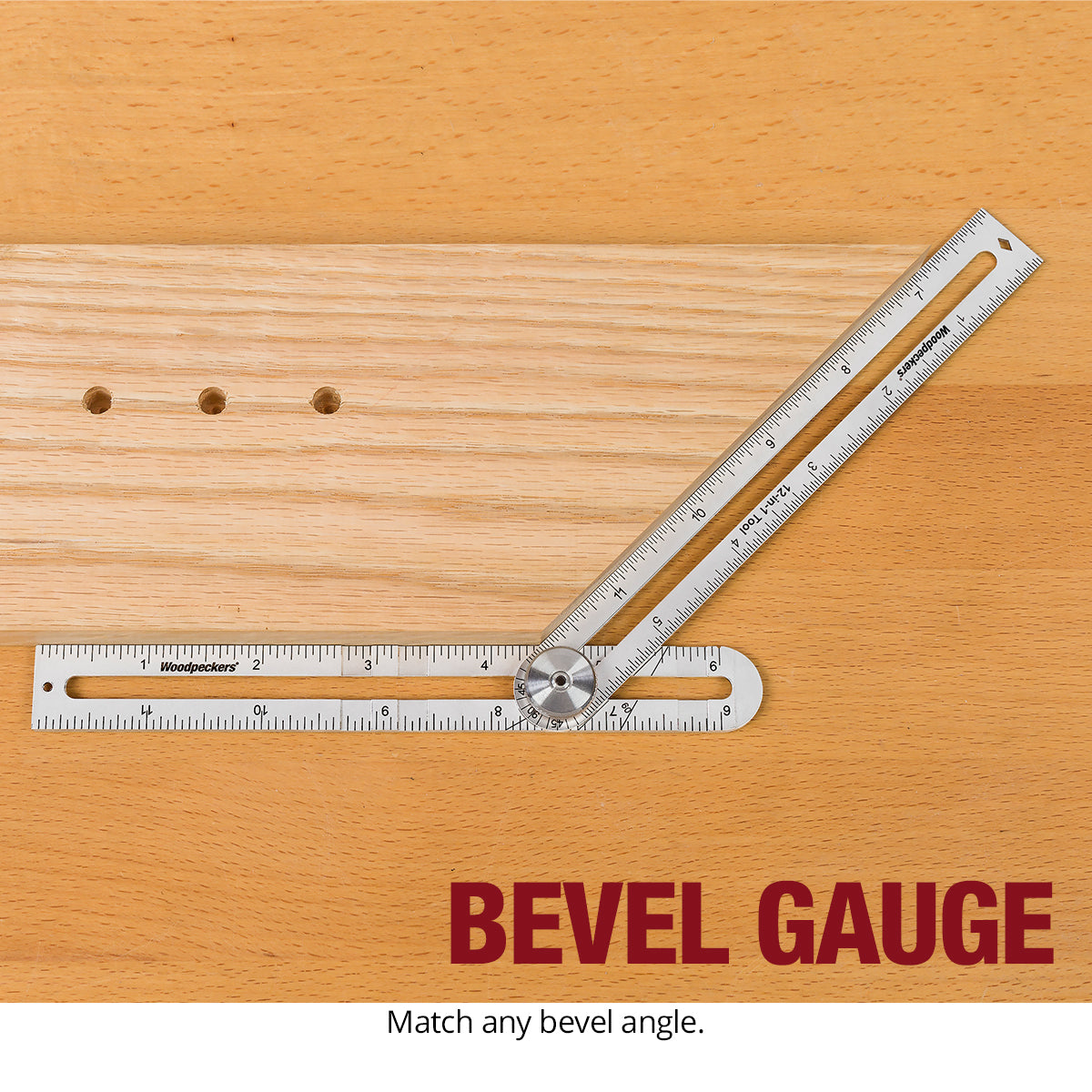

The base scale is engraved with angle alignment guides for 30°, 45° and 60° angles. When you're working with non-standard angles, simply match the angle you need with the bevel gauge function and transfer it to your workpiece.

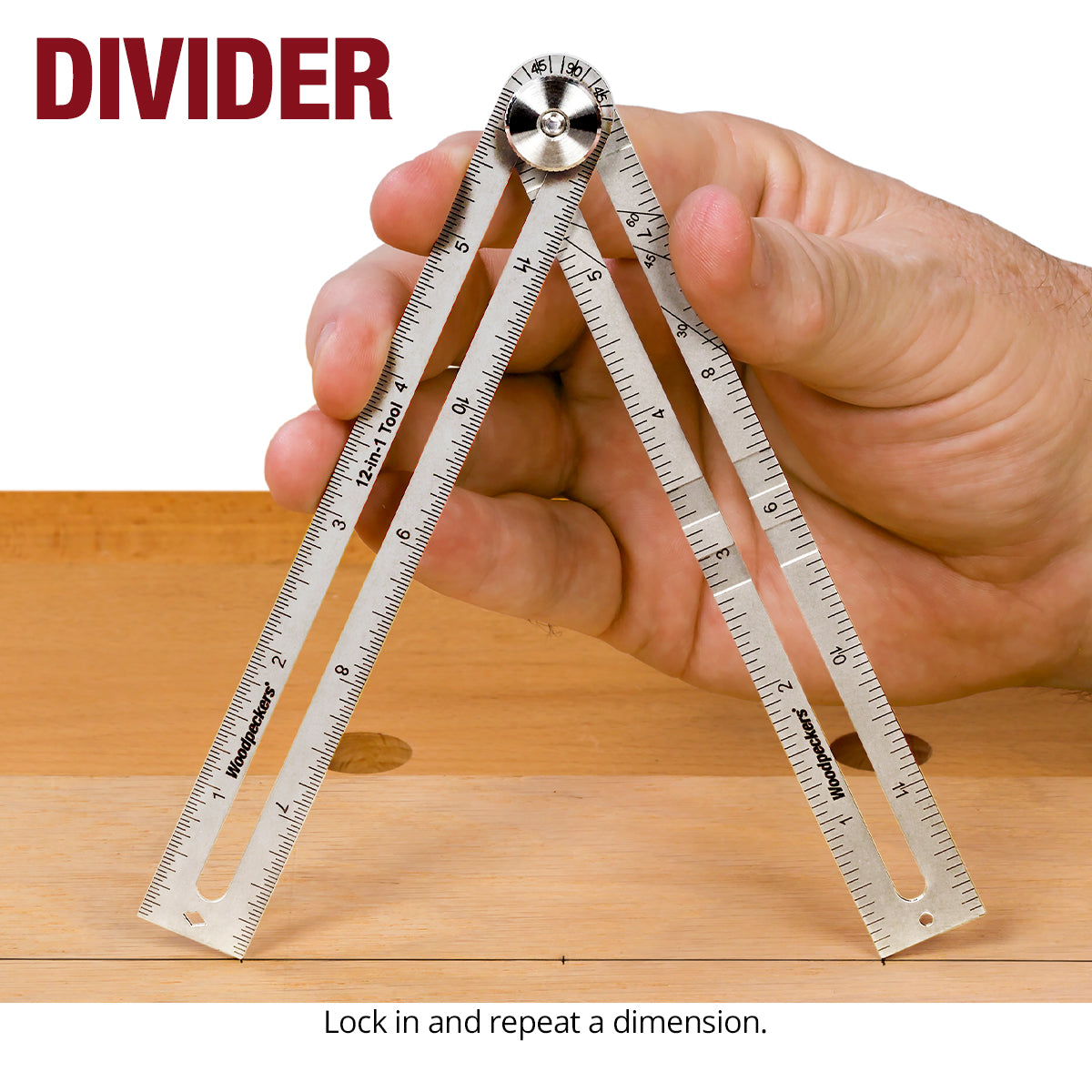

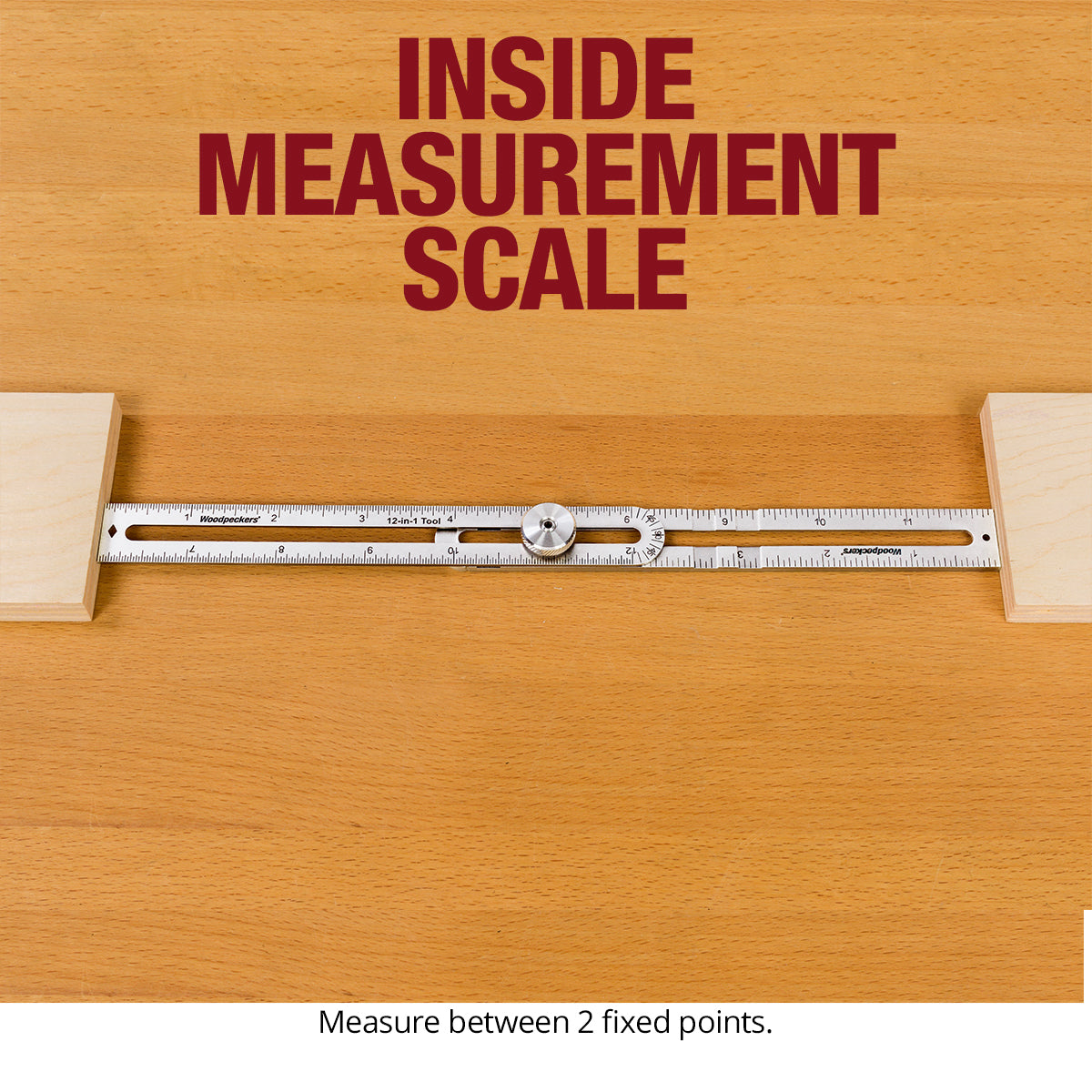

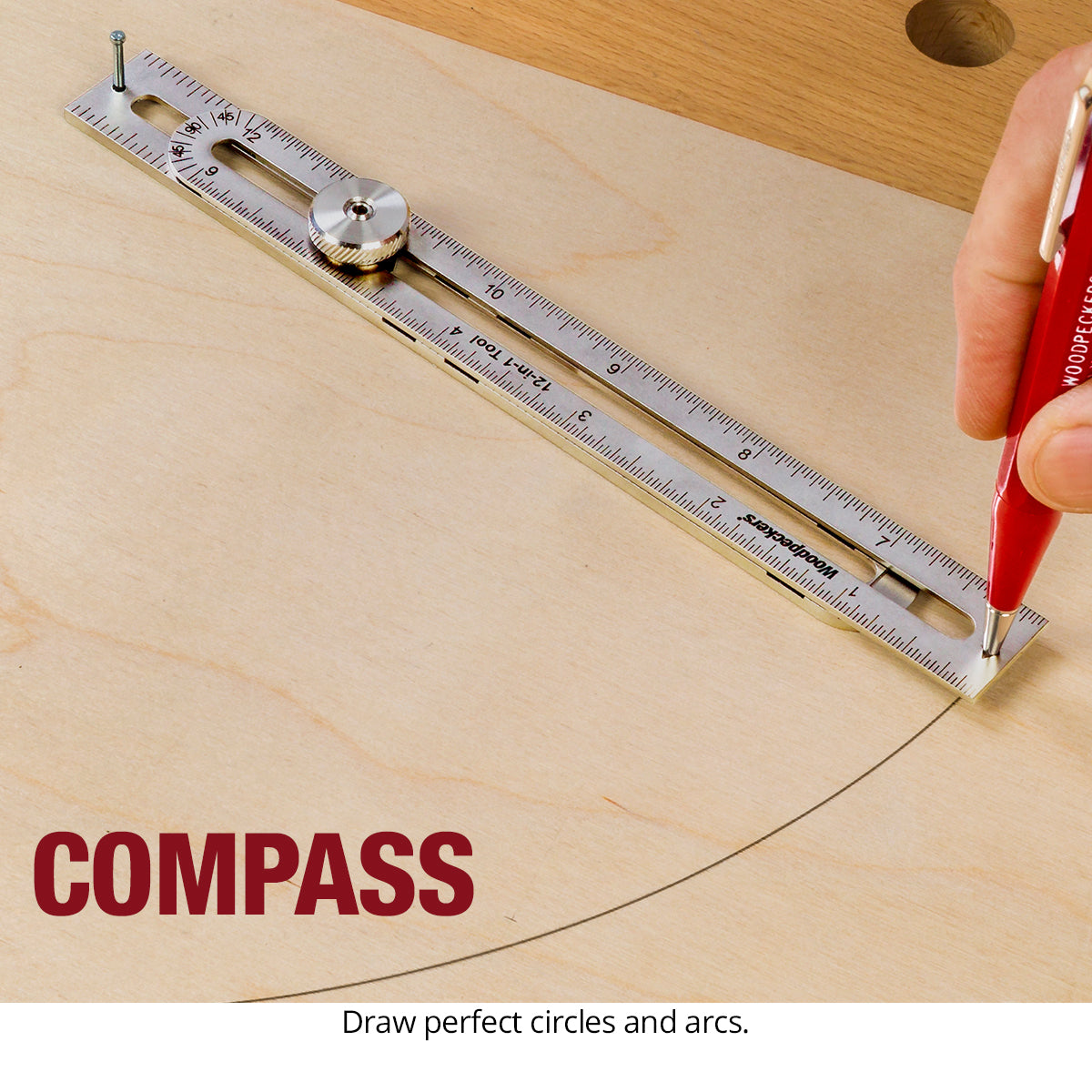

The sliding nature of the tool brings utility to the scale. Not only do you have an accurate 12" rule, but you can adjust it to check inside dimensions and use it as a beam compass to draw perfect arcs. Hinge it around to use the square ends as a divider that will transfer a dimension accurately without measuring.

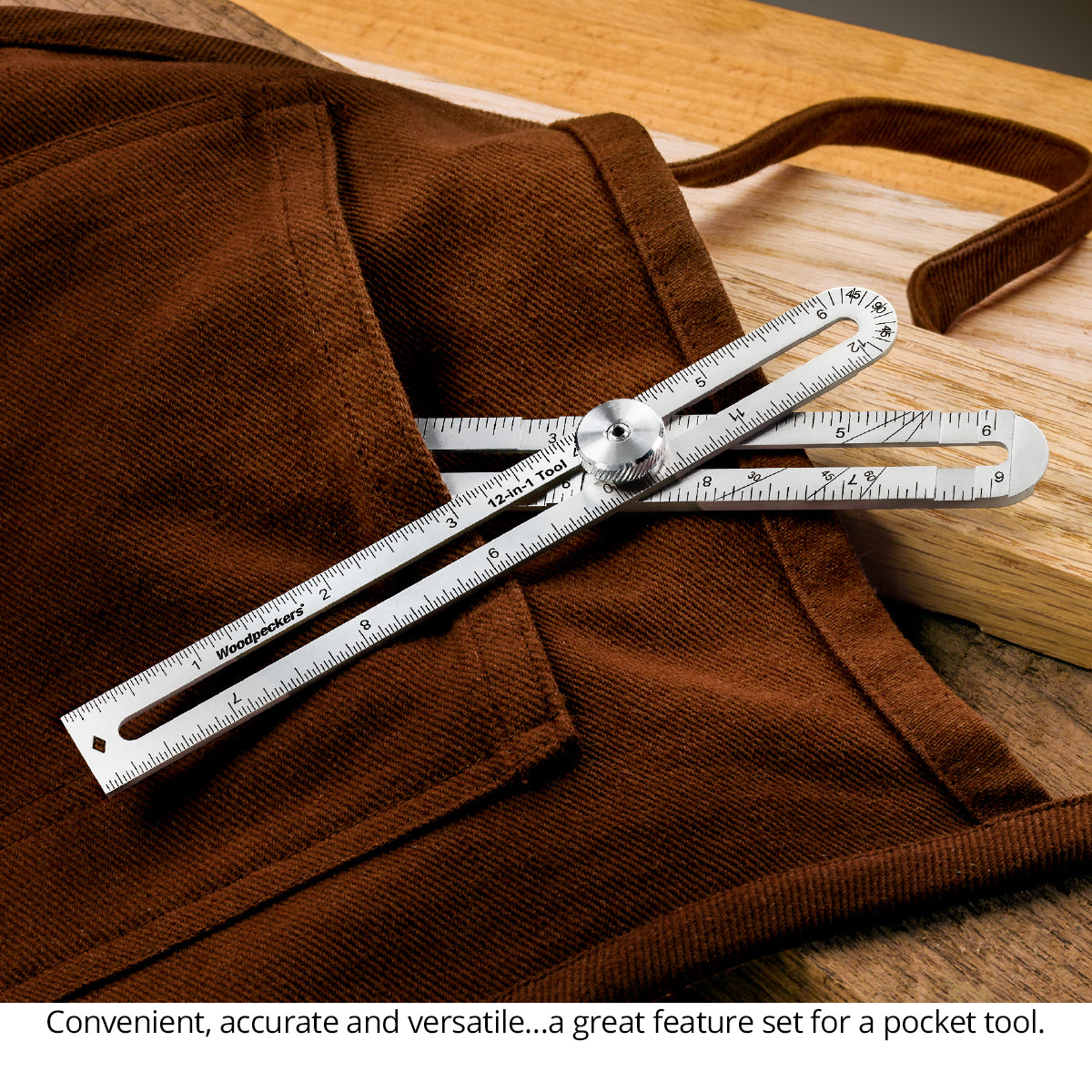

You won't find a more convenient tool to keep close at hand when you're in the shop working on furniture and cabinetry layout. Unlike the nearly-100-year-old originals, the stainless steel blades have a non-glare satin finish with crisp, dark laser-engraved scales. We hold the scales to a tolerance of .004" total accumulated error, so they're as accurate as they are easy-to-read.

Like all Woodpeckers products, the 12-IN-1 adjustable square is precisely machined and carefully inspected in our Strongsville, Ohio, facility (just south of Cleveland). This former OneTIME Tool has now joining our permanent product line-up.
