Corner Jig - 2021 - Closeout

Corner Jig

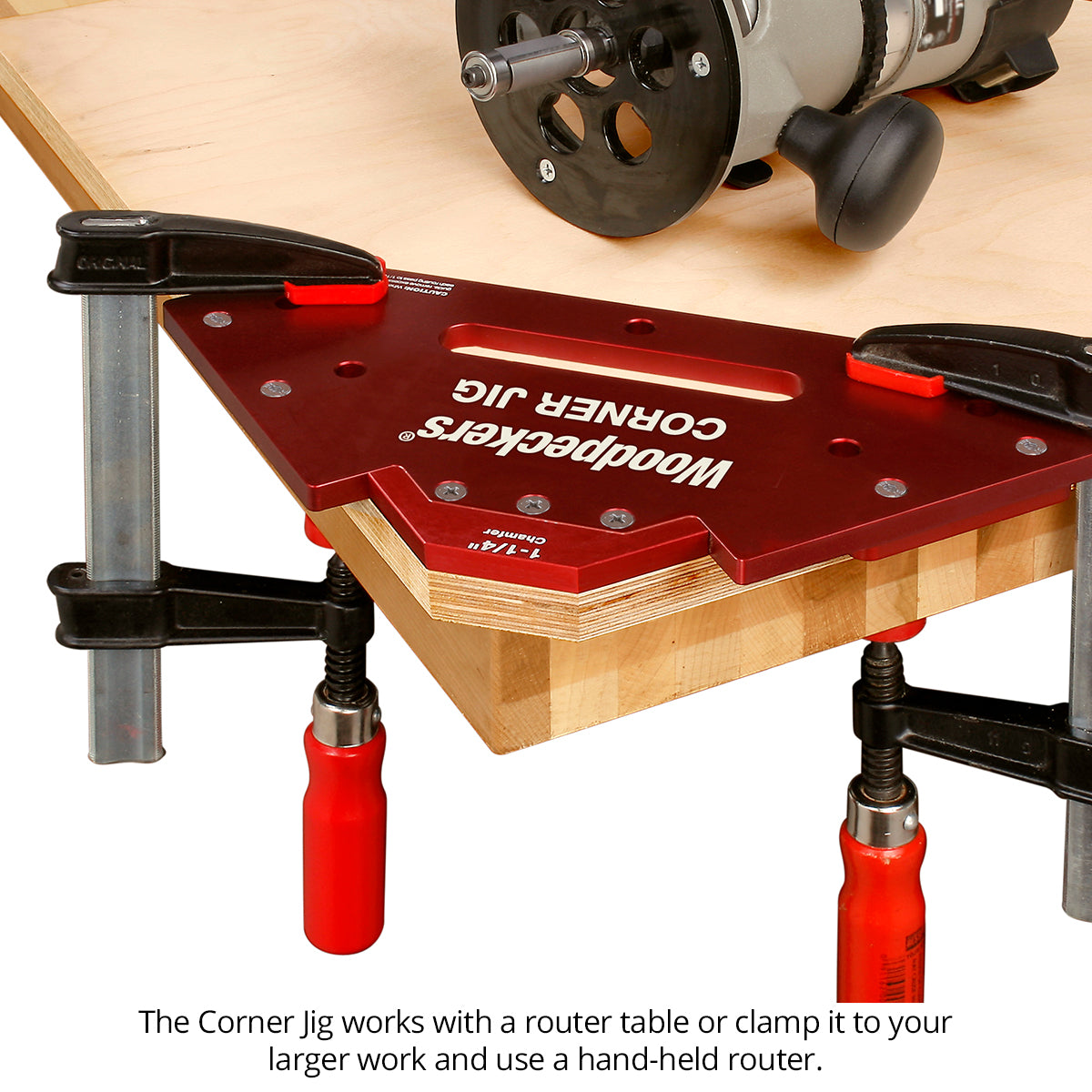

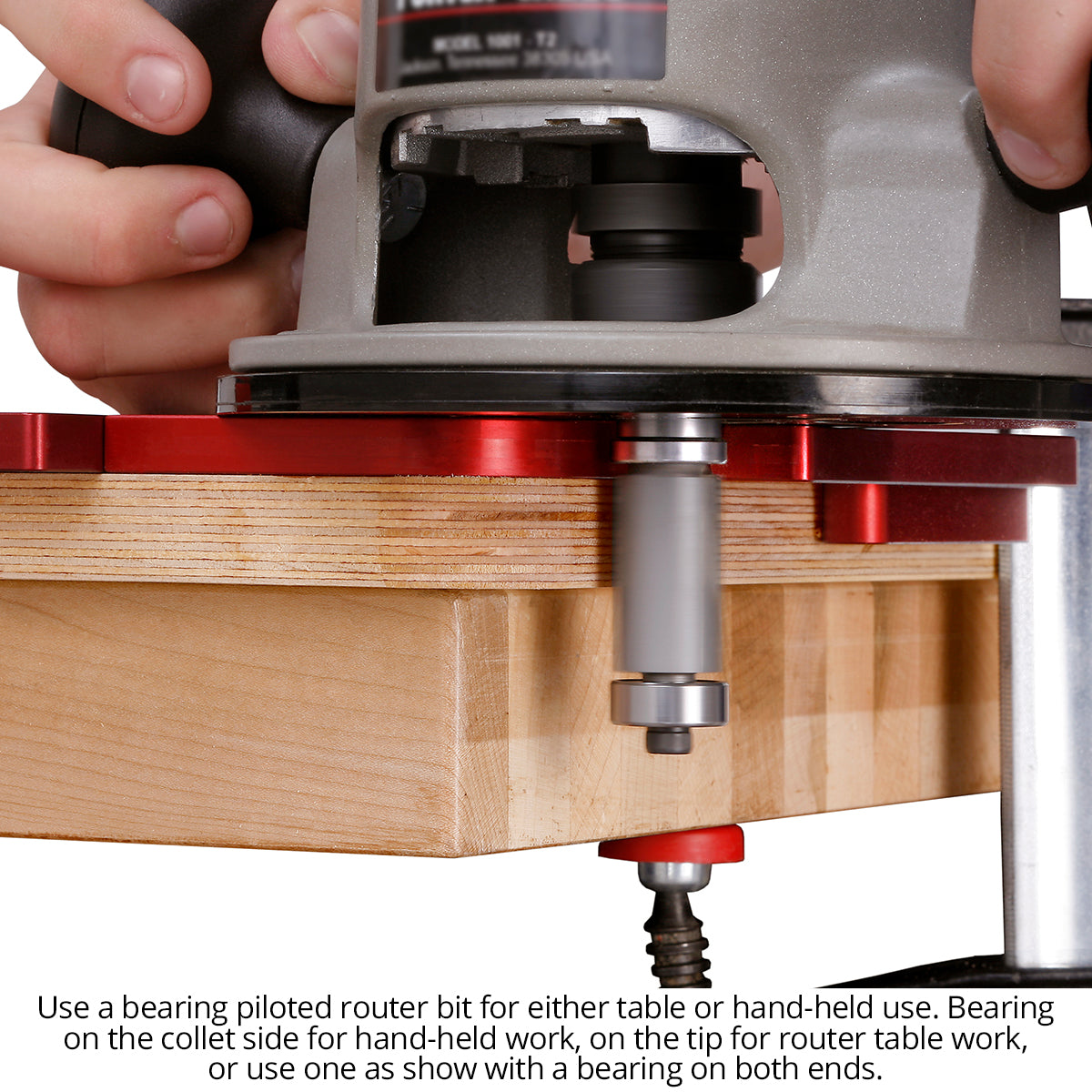

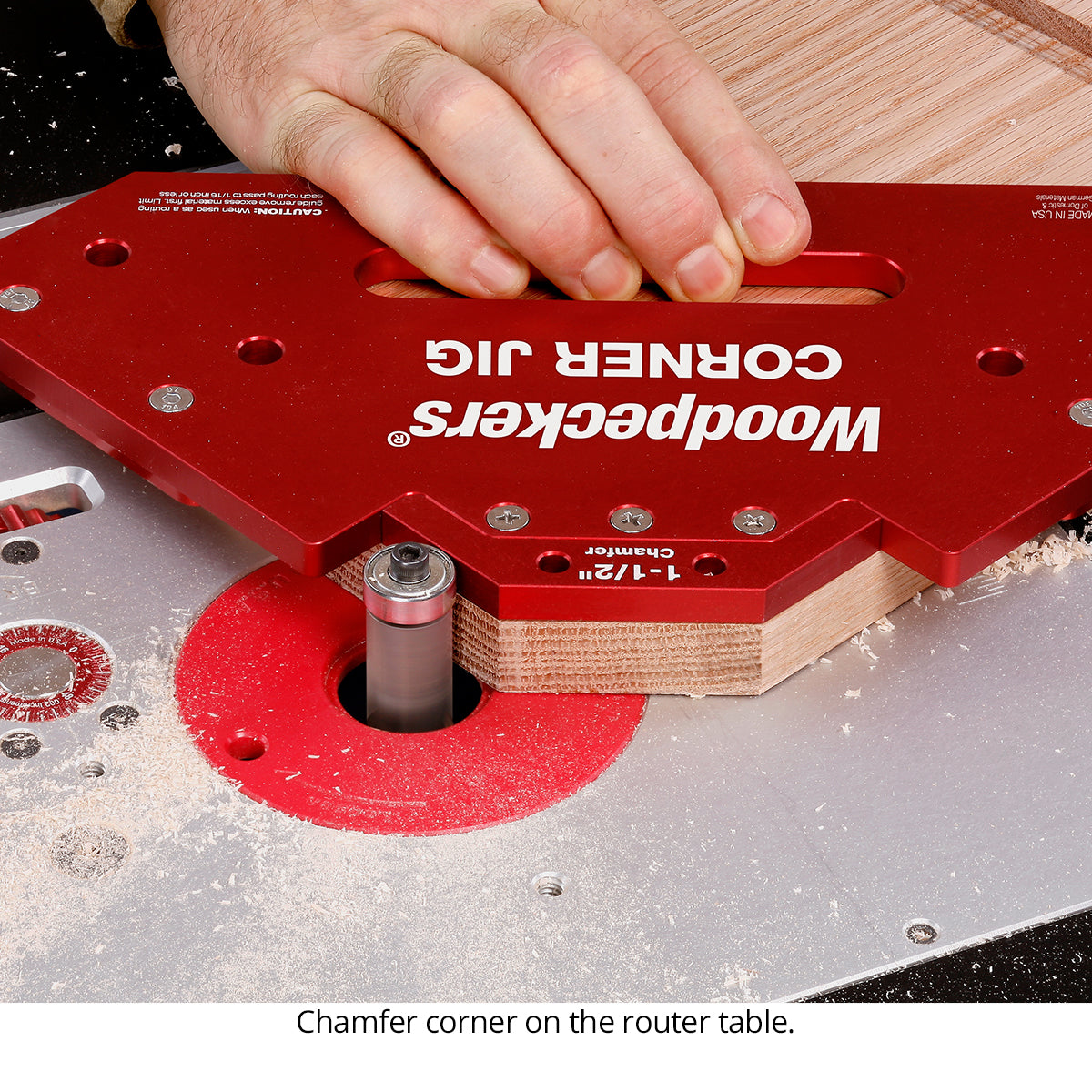

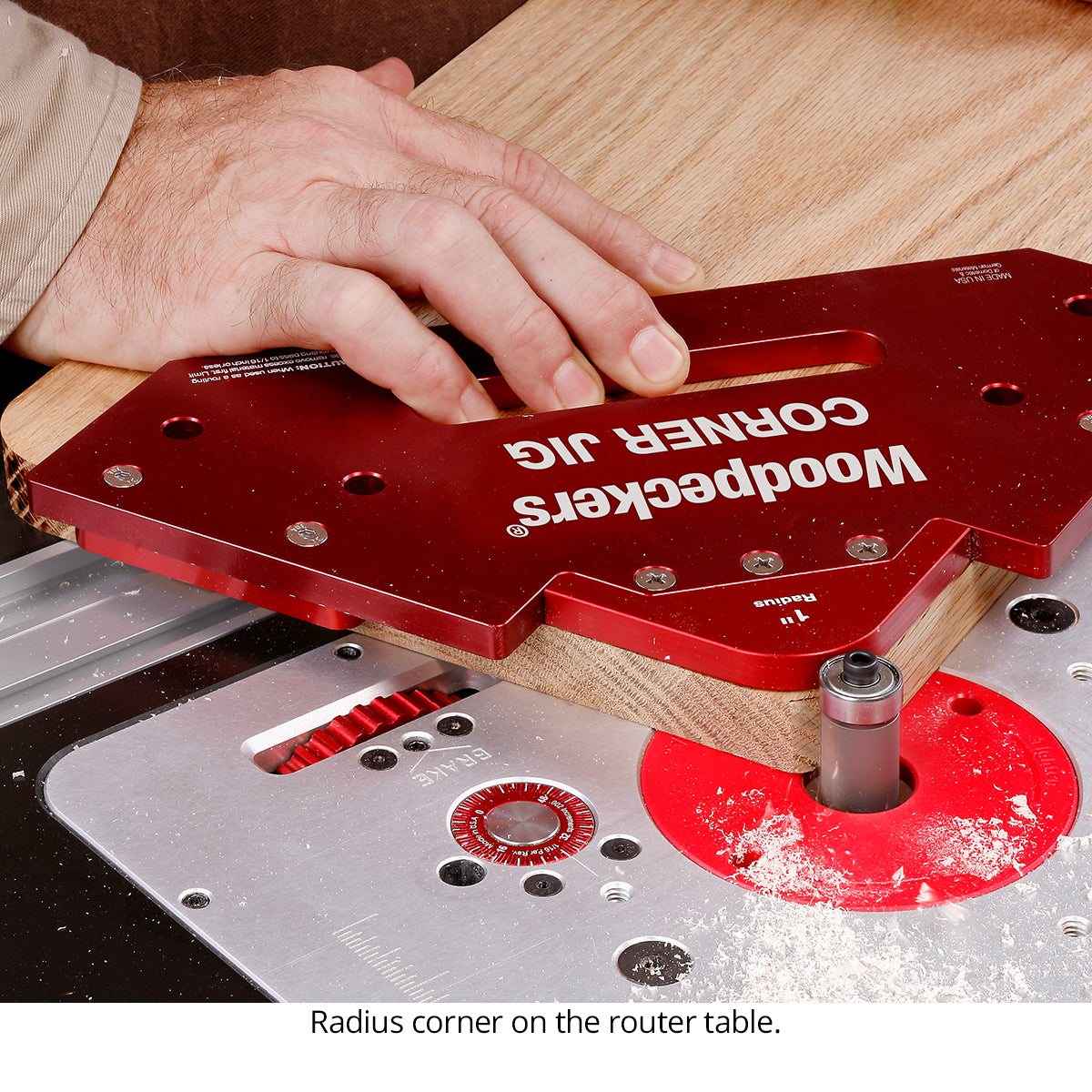

 We focused on versatility and accuracy when we designed the Corner Jig. It has a perfectly flat top when assembled, which means you can use it with a hand-held router on large surfaces like a tabletop. Just follow the template with a top-bearing flush-trim bit.  But what about smaller projects? No problem. Put a tip-bearing flush-trim bit in your router table and hand-hold your workpiece and the Corner Jig. There’s a hand grip machined into the body to make it easy to keep the jig tight on the corner of your work. Either on the router table or with a hand-held router, you’ll machine a perfect corner every time.

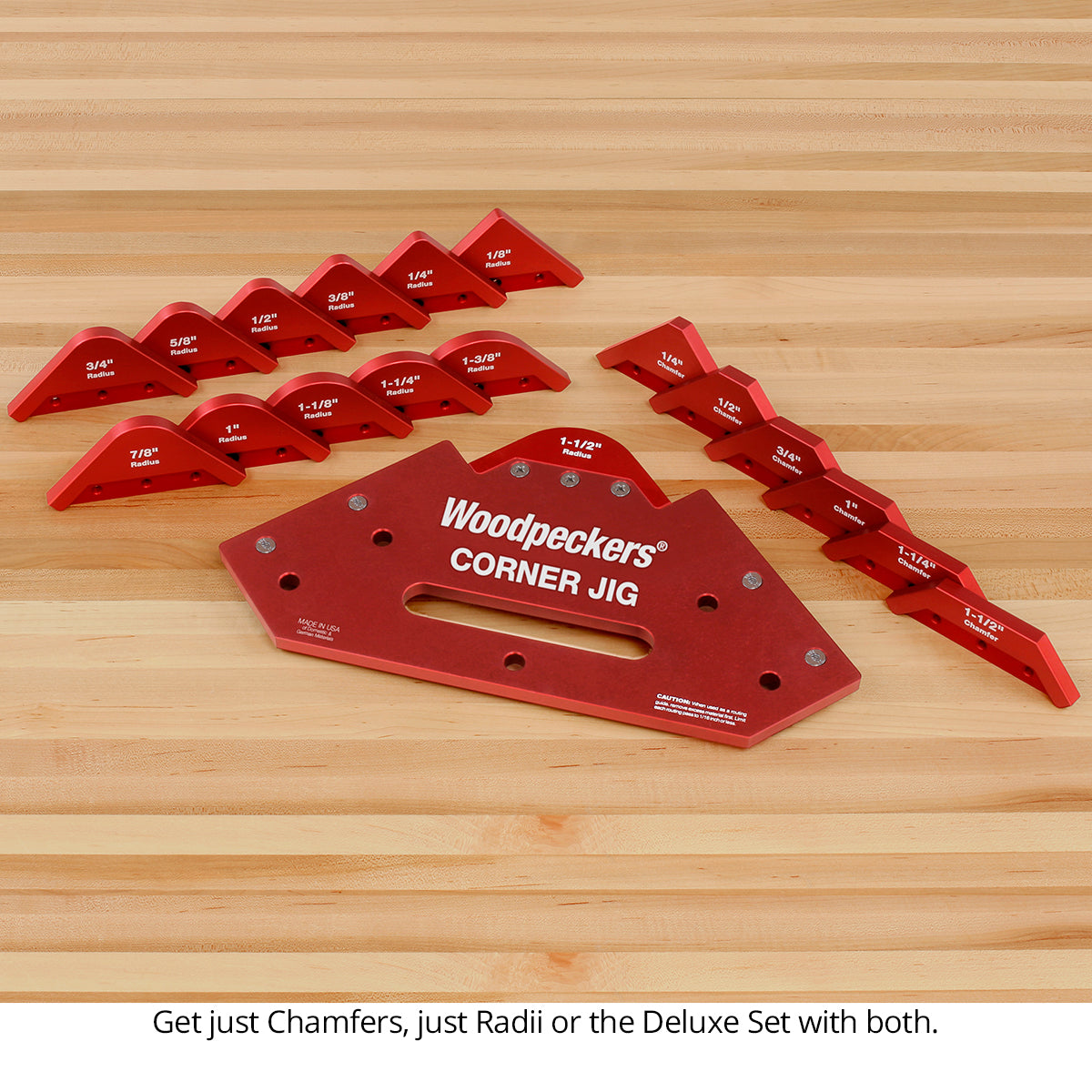

The interchangeable templates come in both radius and chamfer styles, with radii from 1/8" to 1-1/2" in eighth-inch increments and chamfers from 1/4" to 1-1/2" in quarter-inch increments. When you’re designing a project, the templates make it easy to visualize the results…just align them on the corner of your work until you decide which size and style work best.

Woodpeckers Corner Jig starts with a hefty base milled from cast and ground aluminum plate…the same top-quality material we use in our router lifts and precision squares. The eighteen different templates are machined to exacting tolerances. Each one aligns perfectly on the base with three stainless steel screws. Indexing blocks on the bottom of the base align the jig to the corner of your workpiece. All the aluminum components are anodized for corrosion protection and to give them our distinctive “Woodpecker Red” appearance.

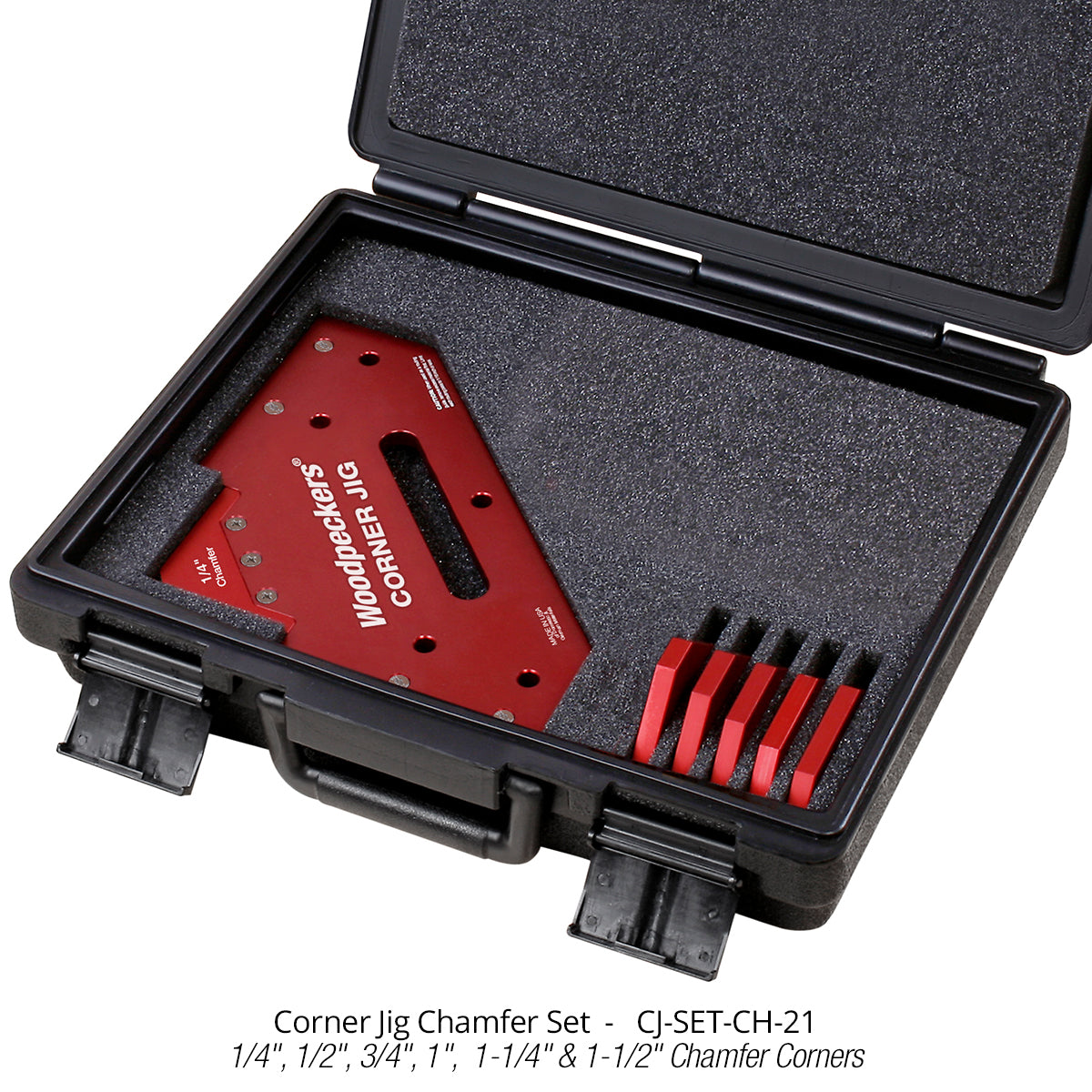

We’re offering the Woodpeckers Corner Jig in three different sets, Radius, Chamfer, and Deluxe. All three sets include the Corner Jig Base and come in a protective case with a custom-cut foam liner. The Radius Set includes all 12 radius templates. The Chamfer Set includes all 6 Chamfer Templates. Need them all? Get them all in the Deluxe Set which includes all 18 templates.

WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
