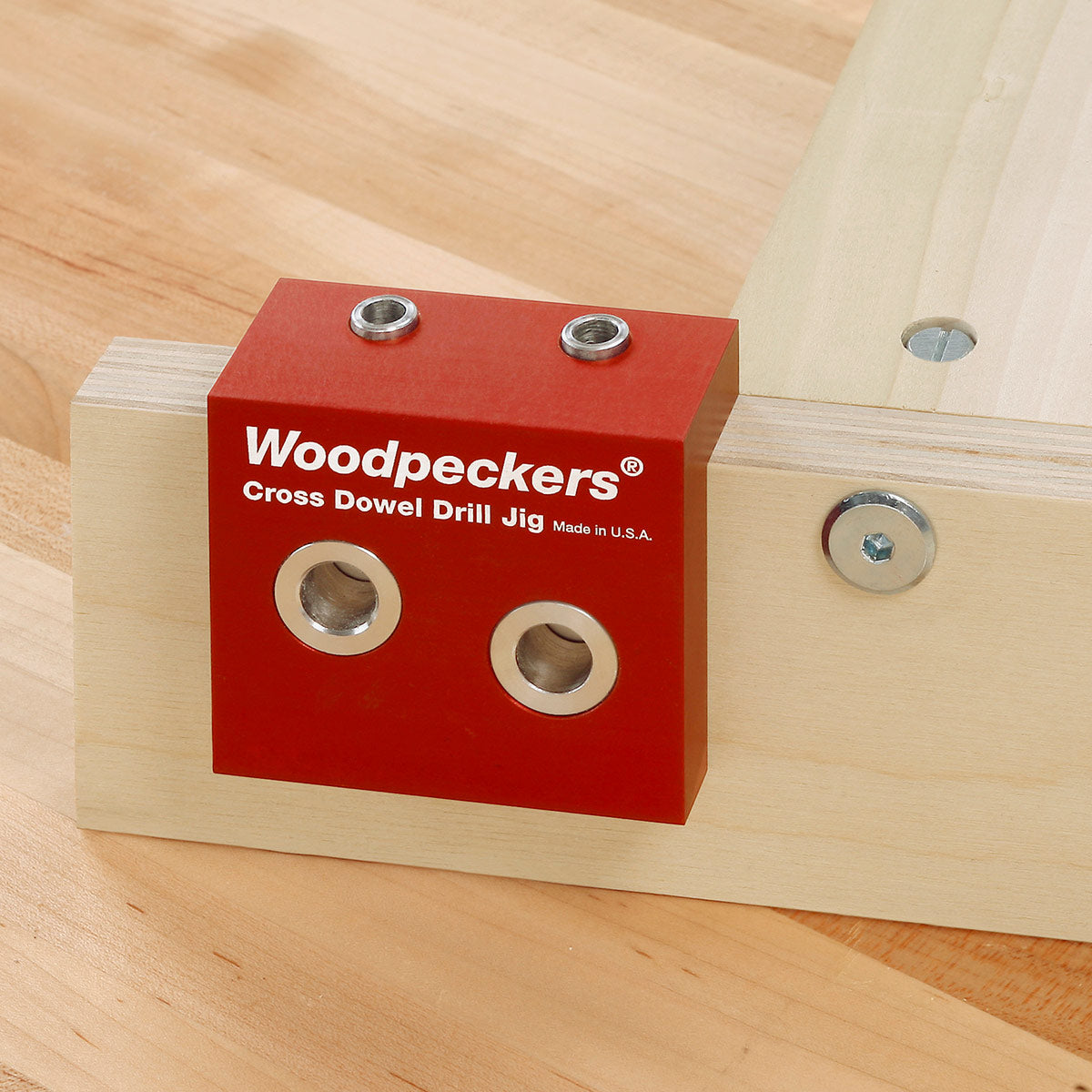

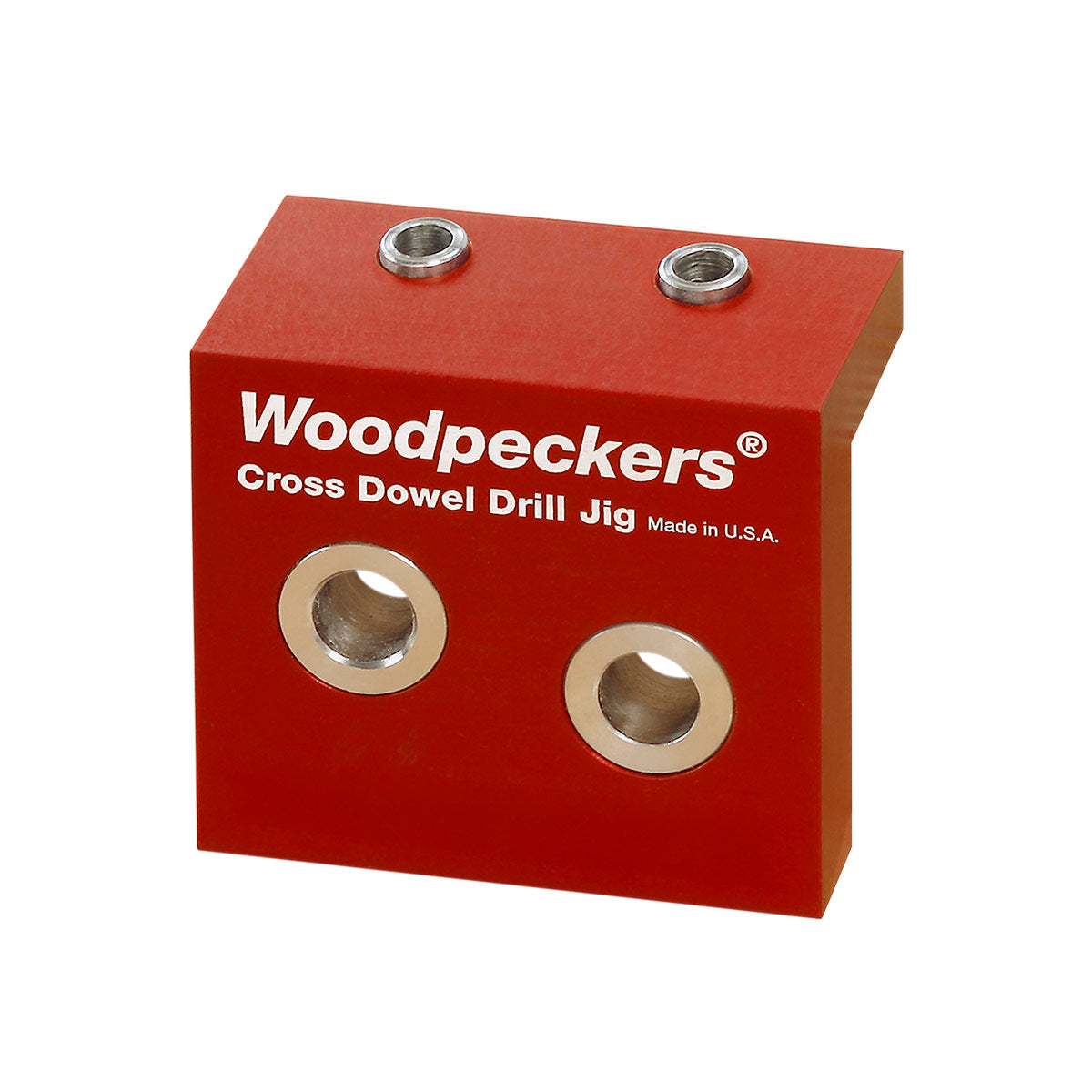

Cross Dowel Drill Jig - Closeout

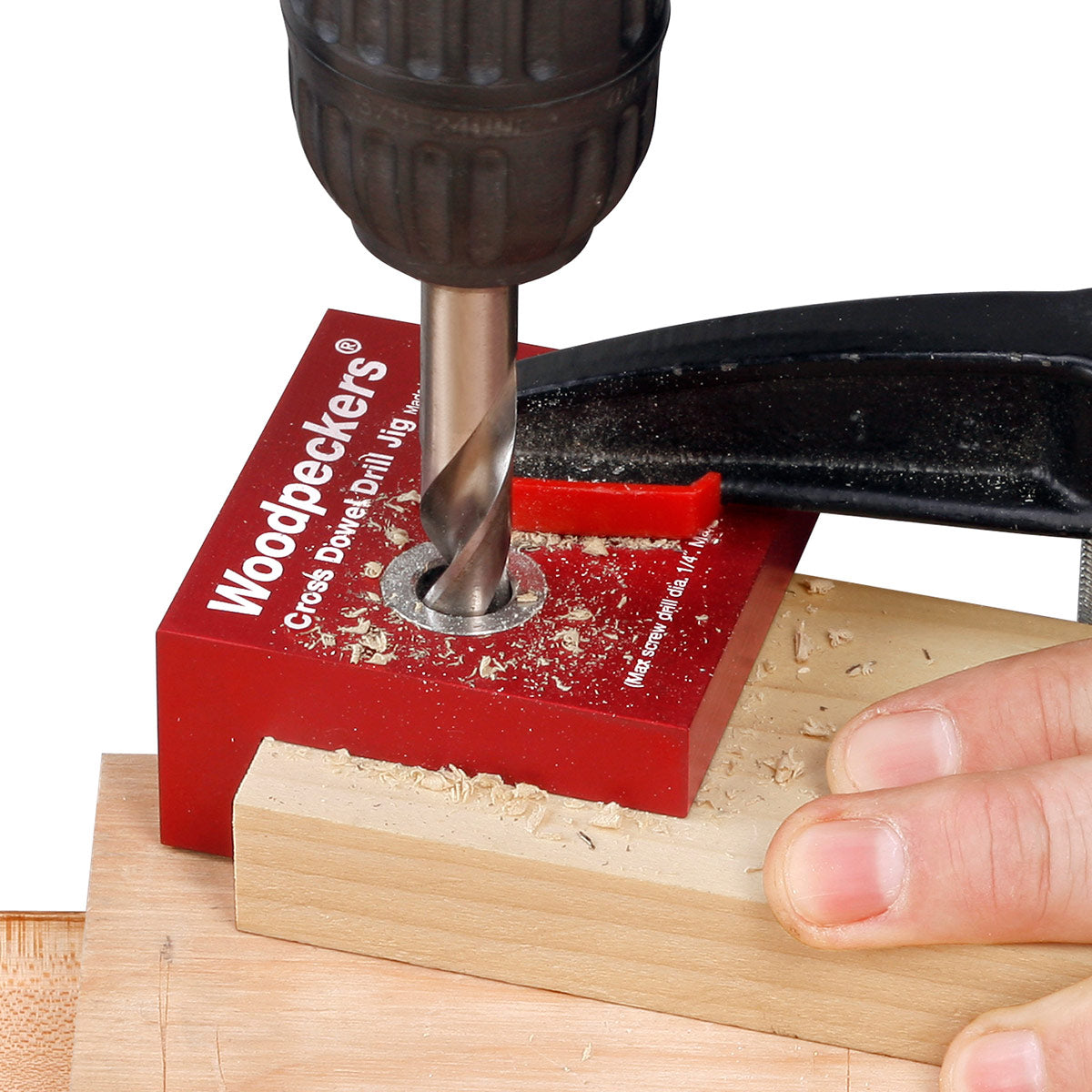

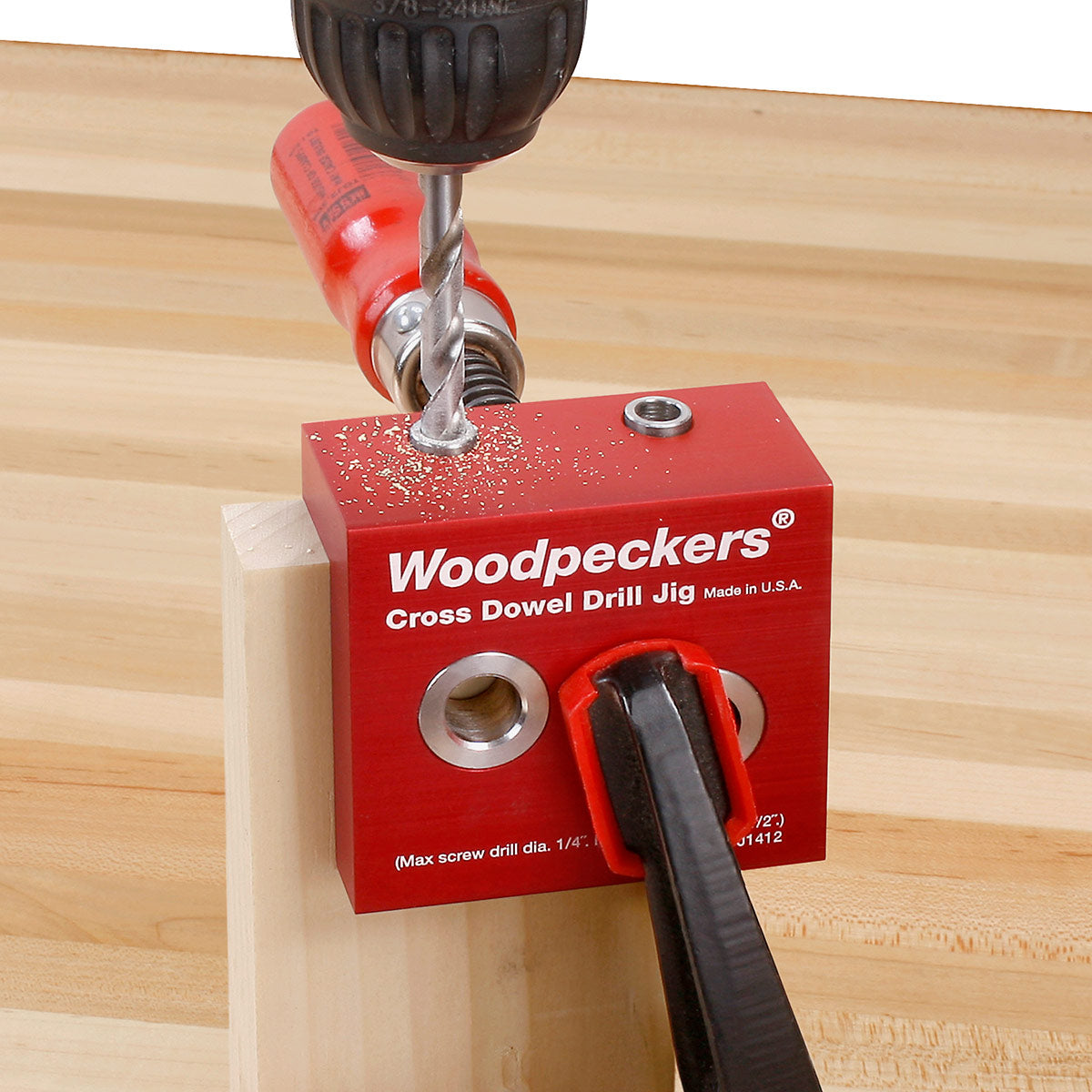

Cross Dowel Jig for use with #10 or 1/4-inch bolts and matching cross dowels. Requires 1/4-inch and 7/16-inch drills. Cross dowel joints are the strongest knock-down joinery in use today and Woodpeckers new precision machined cross dowel drilling jig makes using cross dowels easier than ever. No more costly misaligned holes or incorrect spacing. It features solid aluminum body with stainless steel guide bushings. With this simple drill guide and two drill bits you'll be able to drill both holes in perfect intersecting alignment. The Woodpeckers drill guide features two screw length offsets for different dowel locations, 3/4-inch and 1-inch. Keep in mind that the thickness of the panel will influence what lengthy screw to use. For instance if the panel is 3/4-inch thick and you'll be using the 1-inch offset, you'll need a screw at least 2-inches long. Properly created cross dowel joints have incredible clamping force and great shear strength. They can be made with standard hardware as well as cosmetically professional looking connector bolts in a variety of finishes. Made in U.S.A.

• Precision machined cross dowel drilling jig makes using cross dowels easier than ever
• Eliminates costly misaligned holes or incorrect spacing
• Features solid aluminum body with stainless steel guide bushings
• Woodpeckers drill guide features two screw length offsets for different dowel locations, 3/4-inch and 1-inch

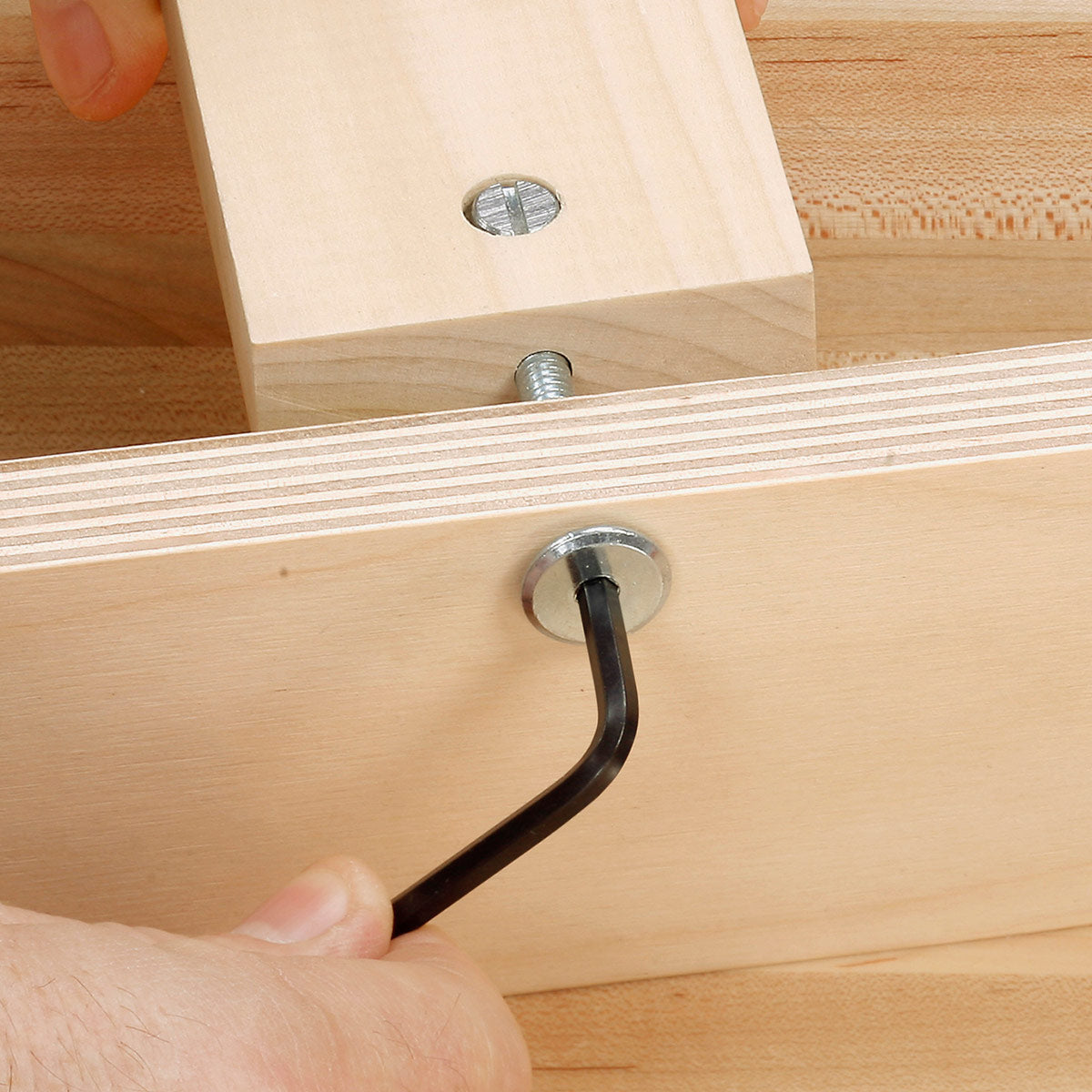

• Properly created cross dowel joints have incredible clamping force and great shear strength


WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
